What Is a DisplayPort Connector?

A DisplayPort connector is a high-bandwidth digital display interface primarily used to connect a video source to a display device, such as a computer to a monitor or a laptop to a projector. It carries both video and audio signals, and in some configurations also supports data (USB) and power. The DisplayPort connector was developed by VESA (Video Electronics Standards Association) and is widely used in computer graphics, professional AV, and consumer electronics. Unlike HDMI, the standard DisplayPort connector includes a locking latch that secures the cable, preventing accidental disconnections. The two most common physical sizes are the full-size DisplayPort connector and the Mini DisplayPort connector, each with 20 pins but different mechanical dimensions. For a general overview of display interfaces, see Wikipedia’s DisplayPort entry.

In PCB design, a DisplayPort connector is typically mounted on the board edge to allow external access. The connector body may be vertical (opening upward), right-angle (opening parallel to the board), or straddle mount (straddling the PCB edge). Choosing the correct DisplayPort connector type depends on the enclosure design, available board space, and the mating cable orientation.

DisplayPort Connector Types: Full Size vs Mini DisplayPort

The DisplayPort connector family includes two physical form factors: the standard (full-size) and the mini. Both provide the same electrical performance and support the same video resolutions, but they differ in size and typical applications.

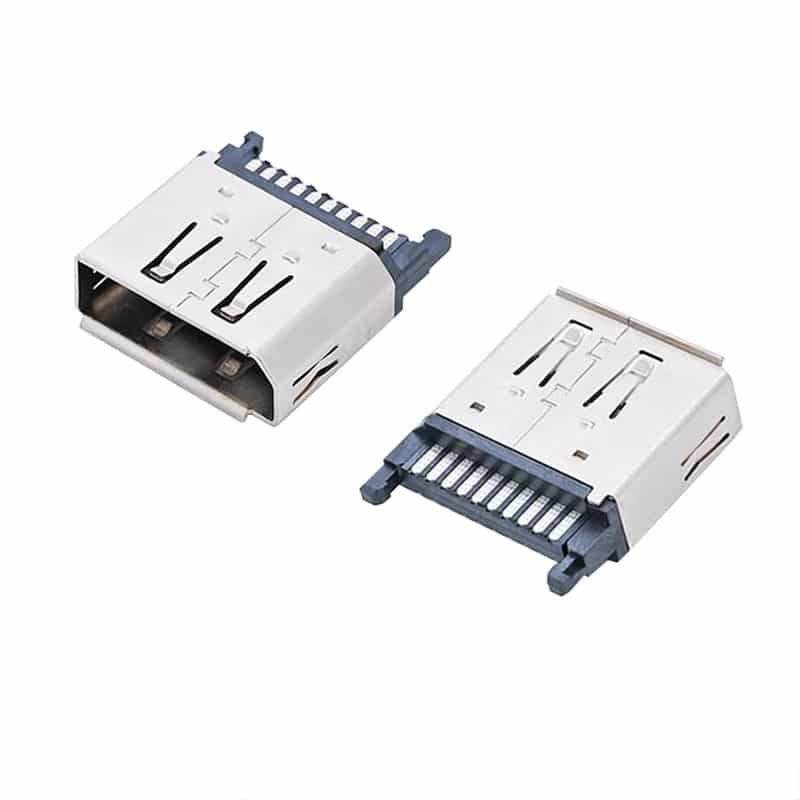

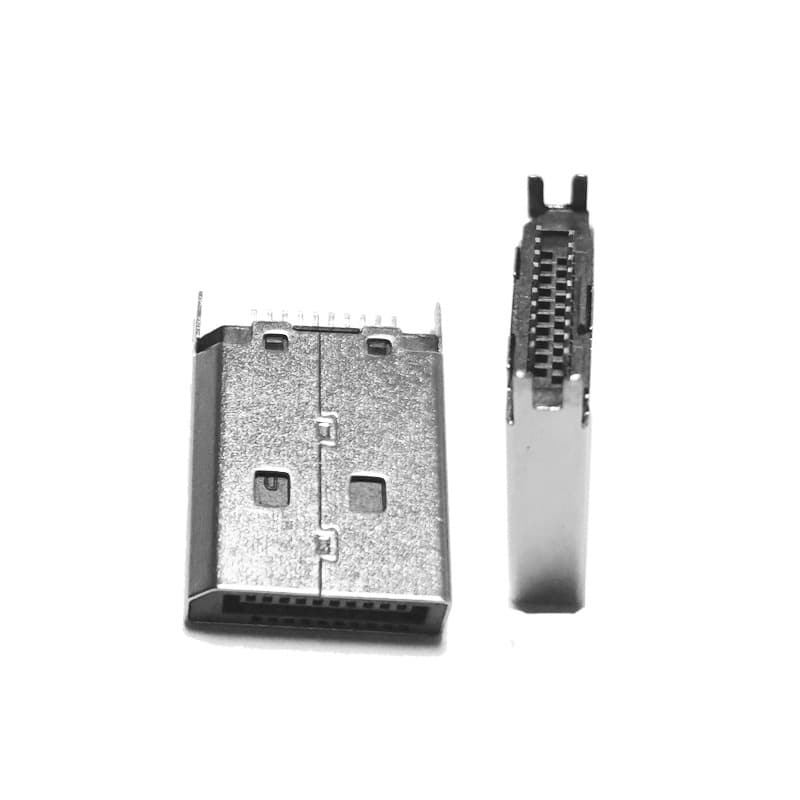

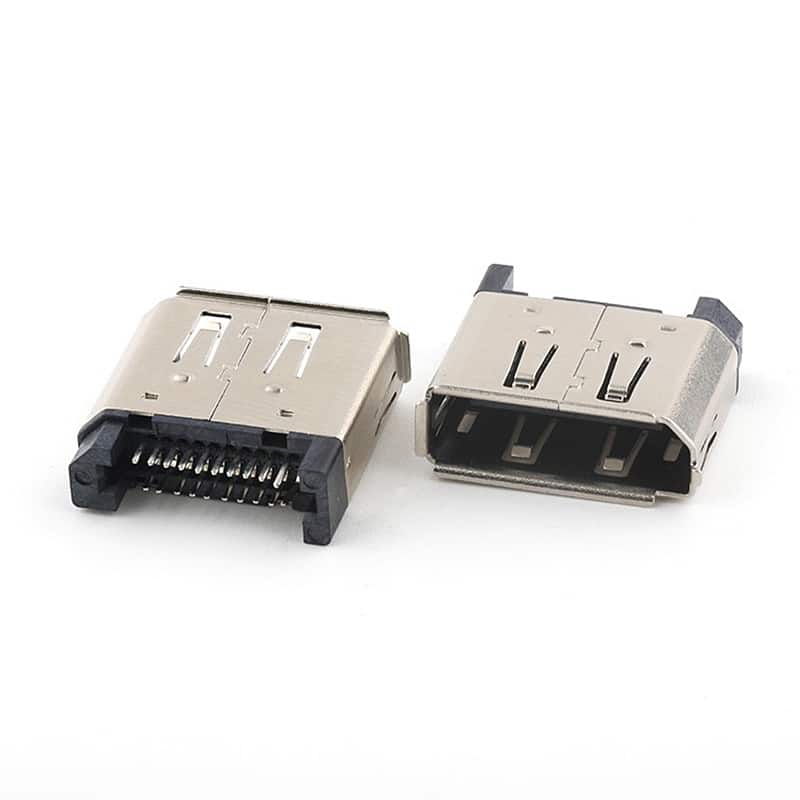

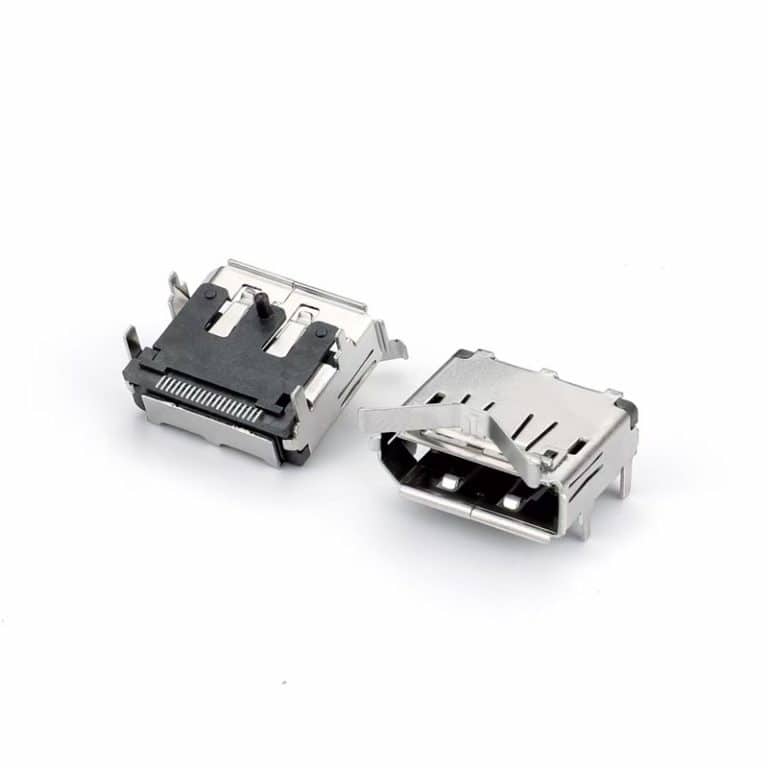

Full Size DisplayPort Connector

The full-size DisplayPort connector measures approximately 16.1 mm × 7.4 mm and features a locking latch. It is predominantly used on desktop graphics cards, PC monitors, and professional video equipment. The larger body allows for robust mechanical retention, making it ideal for environments where cables may be accidentally pulled.

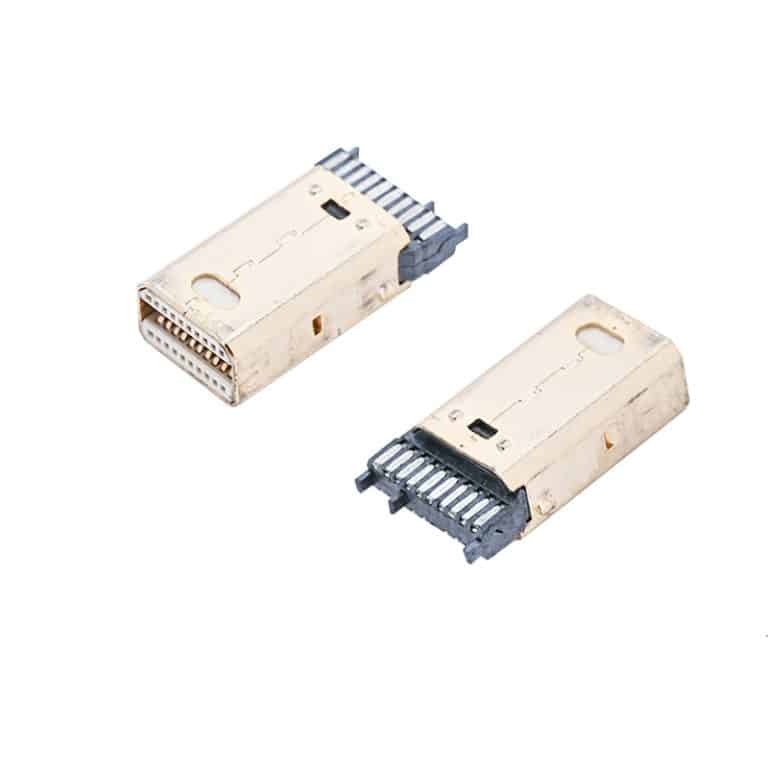

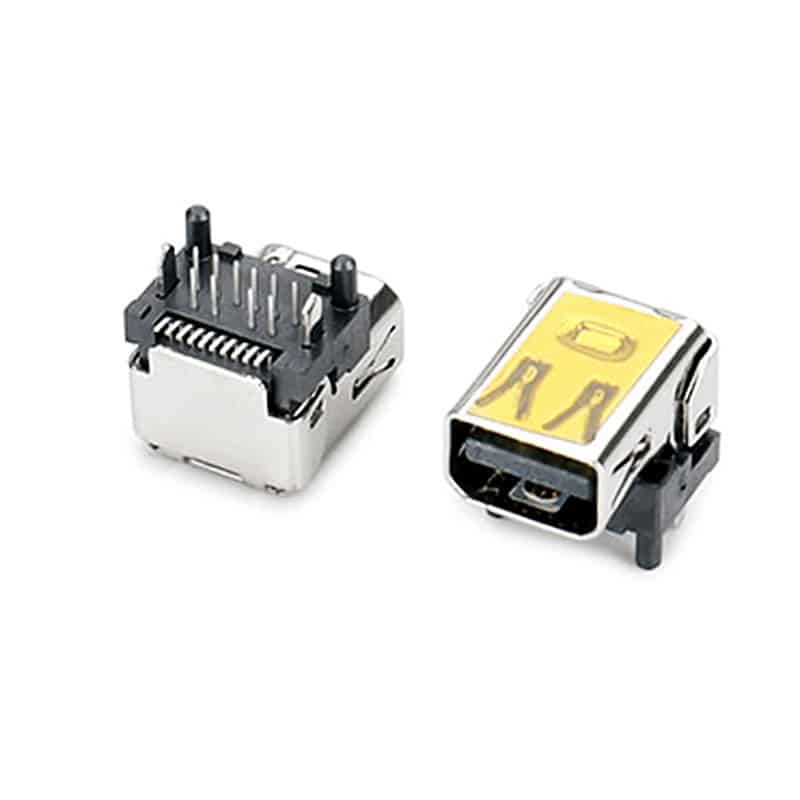

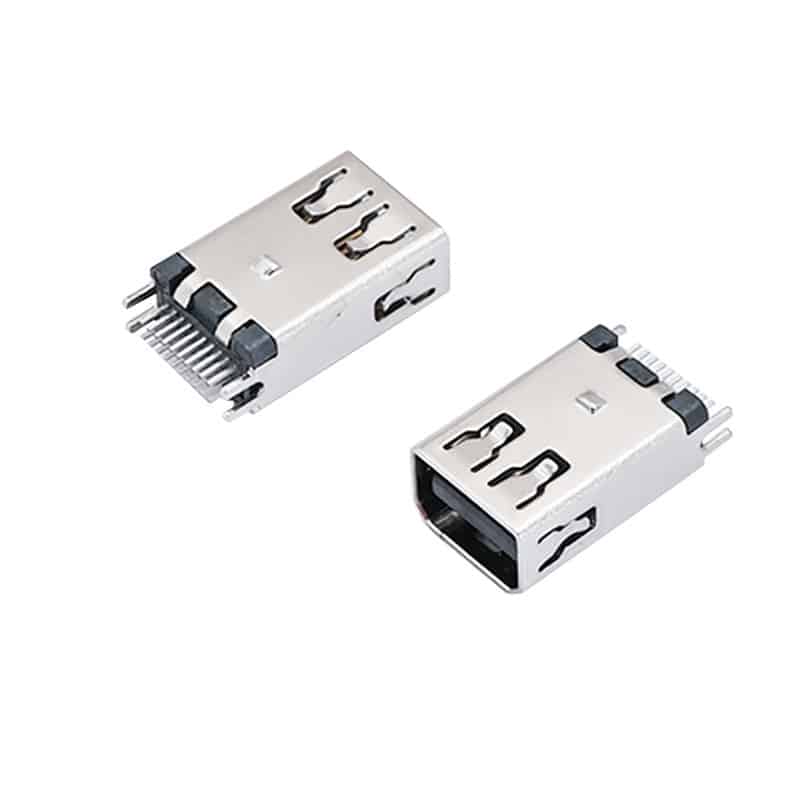

Mini DisplayPort Connector

The Mini DisplayPort connector (often abbreviated mDP or Mini DP) is significantly smaller, about 7.5 mm × 4.5 mm, and is commonly found on laptops, tablets, and compact devices. It delivers the same high-bandwidth video and audio as the full-size version but in a space-saving form factor. Many docking stations and portable monitors use a mini displayport connector to save panel space. Our catalog includes both full-size and mini versions in various mounting orientations.

How to Choose the Right DisplayPort Connector

Selecting the optimal DisplayPort connector involves matching your board layout, enclosure, and signal requirements. Follow these five steps:

1. Determine the physical size: Choose full-size DisplayPort for desktop or panel-mount applications, or Mini DisplayPort for compact portable devices.
2. Select mounting orientation: Vertical for top access, right-angle for side access, or straddle mount if the port must be flush with the board edge.
3. Choose termination type: SMT for automated assembly, through-hole for stronger mechanical anchoring.
4. Verify electrical ratings: Ensure the connector supports your required data rate (DisplayPort 1.4 or 2.0) and any auxiliary signals.
5. Consider environmental factors: If the device will be used in harsh environments, look for a DisplayPort connector with gold-plated contacts and possibly EMI shielding.

Once you have these parameters, use the filters on this page to narrow down the part numbers. Download 3D models and request free samples to confirm mechanical fit before finalizing your design.

DisplayPort vs HDMI: Which Connector Should You Use?

A common question is whether to choose a DisplayPort connector or an HDMI connector. Both transmit high-definition video and audio, but there are key differences:

• Locking mechanism: DisplayPort uses a latching connector, while HDMI typically relies on friction. This makes DisplayPort connectors more secure in professional installations.
• Bandwidth: DisplayPort 2.0 supports up to 80 Gbps, while HDMI 2.1 tops out at 48 Gbps. For high-refresh-rate 8K displays, DisplayPort connector is often the better choice.
• Daisy-chaining: DisplayPort supports Multi-Stream Transport (MST), allowing multiple monitors from a single connector. HDMI does not.
• Market focus: HDMI dominates the TV and home theater market, while DisplayPort is more common in computer monitors and graphics cards.

For more details, read our dedicated blog post “DisplayPort vs HDMI: Which Connector Is Right for Your Product?”

Mounting Options for DisplayPort Connectors

We manufacture DisplayPort connectors in a variety of mounting styles to fit any PCB design:

• Vertical Mount: The connector stands upright, ideal for top-access ports.
• Right Angle: The port opens parallel to the board, saving vertical space.
• Top Mount: The connector sits on the board edge with the opening facing upward.
• Straddle Mount: The connector straddles the PCB edge, allowing the port to face outward without additional vertical height.
• DIP Through-Hole: Strong mechanical retention for frequent plugging/unplugging.

Each style supports both full-size and Mini DisplayPort connectors, ensuring you find the right fit for your application.

DisplayPort Connector Specifications Explained

Understanding the key specifications of a DisplayPort connector helps ensure reliable operation. The most important parameters include:

• Pin Count: Standard DisplayPort and Mini DisplayPort both use 20 pins, arranged in two rows.
• Contact Material: Gold plating over nickel provides low contact resistance and corrosion resistance. Our DisplayPort connectors feature a minimum of 0.25µm gold flash.
• Current Rating: Typically 0.5A per contact, suitable for auxiliary power and signal lines.
• Voltage Rating: Up to 40V DC, which is more than sufficient for digital video signals.
• Mating Cycles: Rated for 10,000 cycles, ensuring long-term durability.
• Insulator Material: High-temperature LCP or PA6T, UL 94V-0 rated, survives lead-free reflow soldering.

For detailed electrical and mechanical test procedures, refer to IEC standards for connectors.

Common Problems with DisplayPort Connectors

Despite their robustness, DisplayPort connectors can experience issues if not properly selected or assembled. Common problems include:

• Intermittent signal loss: Often caused by insufficient solder joint strength or misaligned pins. Using a through-hole or straddle mount DisplayPort connector can reduce stress on solder joints.
• Mechanical damage to the latch: The latching mechanism can break if the cable is pulled at an angle. Choosing a reinforced DisplayPort connector with a metal shell helps.
• EMI interference: Unshielded connectors may radiate noise. We recommend shielded DisplayPort connectors with grounding tabs for high-speed applications.
• Footprint mismatch: Always download our PCB footprints to ensure correct pad layout and avoid solder defects.

How to Ensure DisplayPort Connector Reliability

To maximize the lifespan of your DisplayPort connector, follow these best practices:

• Use gold-plated contacts to prevent oxidation, especially in humid or outdoor environments.
• Select a connector with adequate mechanical retention (through-hole or straddle mount) if the cable will be frequently connected/disconnected.
• Provide proper strain relief on the cable assembly to reduce force on the connector.
• Ensure the PCB footprint matches the manufacturer’s recommended pattern exactly.
• Perform signal integrity testing if using DisplayPort 1.4 or higher, as trace impedance becomes critical.

DisplayPort Connector Manufacturing & Quality Control

At Vista Electronics, every DisplayPort connector is manufactured under strict ISO 9001 quality controls. Raw materials—copper alloy contacts and LCP insulators—are sourced from certified suppliers. The contacts are precision stamped, plated with gold over nickel, and assembled into the housing. Each batch undergoes 100% contact resistance testing, and sample-based mechanical endurance tests are performed per IEC 60512. We also conduct environmental tests including thermal cycling (-40°C to +85°C) and salt spray for corrosion resistance. This rigorous process ensures that every DisplayPort connector we ship meets the highest reliability standards.

Why Partner with Vista Electronics for DisplayPort Connectors?

With 17 years of connector manufacturing experience, Vista Electronics is a trusted source for DisplayPort connectors worldwide. We offer:

• Full range of full-size and Mini DisplayPort connectors in all standard mounting styles
• Free 3D models and PCB footprints for every part
• Free samples for evaluation
• 3-day lead time on standard items
• Low MOQ and OEM/ODM customization
• ISO 9001, RoHS 3, REACH compliance

Whether you need a single prototype or high-volume production, we deliver consistent quality and on-time delivery. Browse our product listings above, filter by your requirements, or contact our engineering team for a personalized recommendation.
