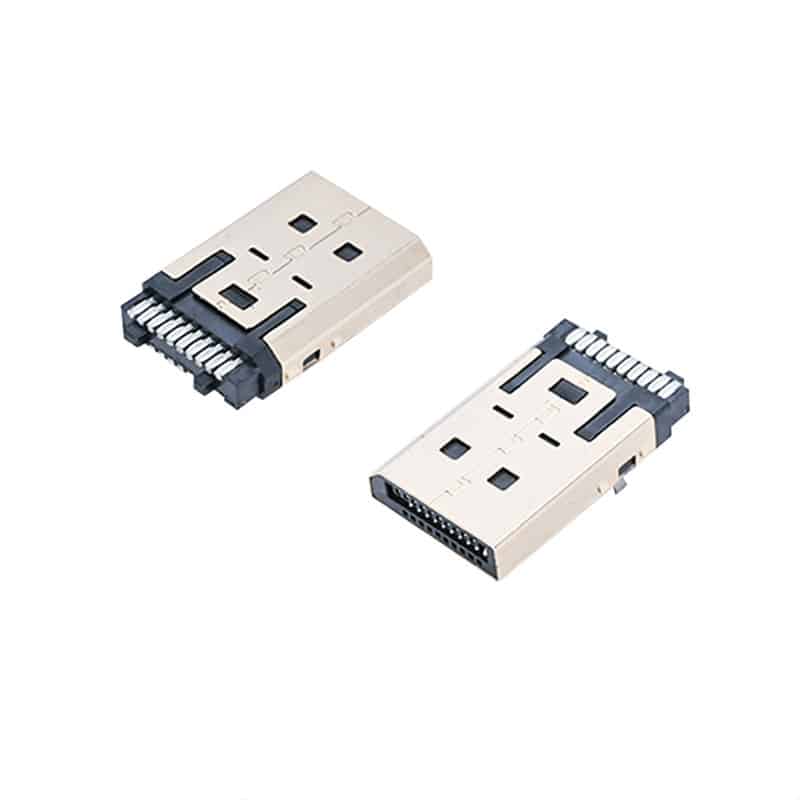

DP Connector 20 Pin Clamp PCB — Straddle Mount DisplayPort Male Connector for High-Speed Video Output, Embedded Systems & Industrial Boards
The DP connector 20 pin clamp PCB is a straddle-mount DisplayPort male connector designed for direct PCB edge installation. It provides stable high-speed video signal transmission, mechanical strength, and full DisplayPort 1.2/1.4 compatibility for embedded systems, GPU boards, and industrial display controllers.
DisplayPort 20 pin PCB clamp connector — Product Overview for PCB Edge Video Output
The DP connector 20 pin clamp PCB is engineered for direct board-edge integration, allowing the DisplayPort male plug to be mounted directly onto a 1.6mm PCB. Unlike traditional panel-mounted connectors, this design eliminates additional brackets or cable assemblies, reducing system complexity and improving signal integrity.
The DP male straddle mount connector 1.6mm PCB clamps onto both sides of the PCB edge, ensuring strong mechanical retention while maintaining precise alignment for high-speed differential signal transmission. This makes it ideal for GPU reference boards, FPGA development kits, video processing modules, and embedded display output systems.
With full support for DisplayPort 1.2 and 1.4 standards, this connector enables high-resolution video output up to 4K and 8K depending on system design and controller capability. It is widely used in professional and industrial-grade display applications where reliability and compact design are critical.
20 pin DP connector through-hole clamp type — Full Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Part Number | DP-F-05 | Clamp PCB series |
| Connector Type | DisplayPort Male Plug | Full-size DP interface |
| Interface Standard | DisplayPort 1.2 / 1.4 | VESA compliant |
| Pin Count | 20 Pins | Full DP signal set |
| Mount Type | Straddle Mount (Clamp Type) | PCB edge mounting |
| PCB Thickness | 1.6mm | Industry standard board thickness |
| Orientation | Horizontal PCB Edge Output | Male plug protrudes from board edge |
| Current Rating | 0.5A per contact | Signal transmission |
| Insertion Force | ≤ 35N | Maximum per VESA spec |
| Withdrawal Force | ≥ 8N | Minimum retention force |
| Mating Cycles | 5,000 cycles | Commercial durability grade |
| Contact Material | Phosphor Bronze, Gold Plated | Low resistance, high stability |
| Housing Material | High-Temperature Thermoplastic | Reflow compatible |
| Shell Material | Zinc Alloy | EMI shielding |
| Operating Temperature | -25°C to +85°C | Industrial environment |
| Storage Temperature | -40°C to +85°C | Safe storage range |
| Packaging | Tape & Reel / Tray | SMT production ready |
| Applications | GPU Boards, FPGA Boards, Video Processors, Embedded Systems | High-speed display output |
| Compliance | RoHS 3, REACH | Global export compliant |
| Certification | ISO 9001:2015 | Factory quality system |
Key Features of DisplayPort PCB Edge Mount Connector 20 Pin
Straddle Mount PCB Edge Design
Direct clamp-on PCB mounting eliminates cable assemblies and enables compact system architecture for embedded video output designs.
High-Speed DisplayPort Support
Fully compatible with DisplayPort 1.2 and 1.4 standards supporting high-bandwidth video transmission up to 8K resolution systems.
Strong Mechanical Retention
Clamp structure ensures stable PCB fixation and prevents connector loosening under vibration or repeated mating cycles.
Applications of 20 Pin DP Connector Clamp Type in Industrial & Embedded Systems
DP Connector 20 Pin Clamp PCB — Frequently Asked Questions
What is a straddle mount DP connector?
A straddle mount connector clamps onto the edge of the PCB and solder joints on both sides, allowing the DisplayPort male plug to extend directly from the board edge without additional housing or cable assemblies.
What PCB thickness is supported?
This connector is designed for standard 1.6mm PCB thickness, ensuring proper mechanical fit and electrical alignment.
Is this connector compatible with DisplayPort 1.4?
Yes, it supports DisplayPort 1.2 and 1.4 signal standards depending on system implementation and controller capability.
