Vertical Displayport connector 20 Pin SMT H=15mm
Vertical DisplayPort Connector 20 Pin SMT H=15mm — Product Overview (DisplayPort 1.4 Connector with Metal Spring Clip)
The DP-F06-15H is a vertical DisplayPort connector 20 pin SMT — a high-performance DisplayPort 1.4 receptacle engineered for demanding PCB applications requiring stable high-speed video transmission and durable mechanical retention. Featuring a vertical SMT structure with through-hole reinforcement and an integrated metal spring clip for enhanced grounding and EMI suppression, this 20 pin DisplayPort receptacle supports HBR3 bandwidth up to 32.4 Gbps, enabling 4K and 8K ultra-high-definition display output in professional and industrial systems.
Its compact upright design helps optimize PCB space while maintaining strong insertion retention for repeated mating cycles. The vertical dp connector pcb mount is ideal for graphics cards, industrial displays, docking stations, embedded systems, gaming devices, and digital signage equipment. Manufactured under ISO 9001:2015, this DisplayPort 1.4 connector features gold-plated contacts for low contact resistance and reliable signal integrity in high-frequency environments.
Fully RoHS 3 and REACH compliant, this vertical dp connector uses lead-free plating and halogen-free LCP housing. The hybrid SMT + through-hole mounting provides superior mechanical retention compared to pure SMT designs, making it ideal for applications subject to frequent cable insertion and vibration.
For the standard H=13mm height variant, see the
DP-F06B DisplayPort connector SMT H=13mm.
Vistar Electronics offers free engineering samples and OEM/ODM customization for your pcb mount displayport connector needs.
Vertical DisplayPort Connector 20 Pin SMT H=15mm — Full Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Part Number | DP-F06-15H | Standard catalog item |
| Connector Type | Vertical DisplayPort Receptacle | 20-Pin, Full-Featured |
| Interface Standard | DisplayPort 1.4 | Backward Compatible with DP 1.2/1.3 |
| Pin Count | 20 Pins | Full DP signal + power + ground |
| Mounting Style | SMT + Through-Hole (Hybrid) | With metal spring clip |
| Orientation | Vertical / Upright | Port opening faces upward |
| Connector Height | H = 15mm | — |
| Current Rating | 0.5A per pin | Signal contacts |
| Insertion Force | ≤ 35N | Maximum |
| Withdrawal Force | ≥ 8N | Minimum retention |
| Mating Cycles | 5,000 cycles | Commercial / industrial grade |
| Contact Material | Copper Alloy, Gold Plated | Low contact resistance |
| Contact Resistance | ≤ 30 mΩ | Initial |
| Insulation Resistance | ≥ 100 MΩ | At 500V DC |
| Withstanding Voltage | AC 250V (1 min) | No breakdown |
| Operating Temperature | -40°C to +85°C | Industrial grade |
| Shell Material | Stainless Steel, Nickel Plated | EMI shielding |
| Housing Material | LCP (Liquid Crystal Polymer), UL94V-0 | High-temperature, SMT reflow compatible |
| Bandwidth Support | Up to 32.4 Gbps (HBR3) | DisplayPort 1.4 |
| Supported Resolution | 8K@60Hz, 5K@60Hz, 4K@144Hz | With DSC compression |
| Special Features | Metal Spring Clip, AUX Channel, HPD, DP++ | Enhanced grounding & EMI shielding |
| Compliance | RoHS 3, REACH | Global export ready |
| Packaging | Reel / Tray | SMT pick-and-place ready |
Why Engineers Choose This Vertical DP Connector PCB Mount for High-Performance Displays
32.4 Gbps Ultra-High Bandwidth
Supports DisplayPort 1.4 HBR3 up to 32.4 Gbps, enabling 8K@60Hz, 4K@144Hz, and HDR for professional graphics and gaming displays.
Vertical PCB Mount with Hybrid Retention
Vertical orientation with SMT + through-hole anchoring ensures superior mechanical retention and solder joint reliability for industrial environments.
Metal Spring Clip — Enhanced Grounding & EMI Shielding
The integrated metal spring clip provides additional grounding contact and EMI suppression, improving signal integrity in high-frequency display applications.
Gold-Plated 20-Pin Contacts
20 gold-plated copper alloy contacts deliver ≤30 mΩ contact resistance, ensuring signal integrity for high-speed differential pairs and AUX channel.
H=15mm Compact Profile
The 15mm height balances panel accessibility and PCB clearance, making it suitable for standard I/O bracket openings and space-constrained designs.
Industrial Temperature Range
Operates reliably from -40°C to +85°C, suitable for industrial control panels, outdoor digital signage, and automotive infotainment systems.
RoHS & REACH Compliant
Lead-free plating and halogen-free LCP housing meet EU and global environmental export standards.
5,000 Mating Cycles
Rated for 5,000 cycles minimum, ideal for frequent connect/disconnect applications in docking stations and test equipment.
Where to Use This 20 Pin DisplayPort Receptacle — Applications Across Industries
As a versatile pcb mount displayport connector, the DP-F06-15H is found across a wide range of applications where reliable high-bandwidth video transmission is required. Its vertical orientation, hybrid SMT+through-hole mounting, and integrated metal spring clip make it a preferred choice for engineers designing graphics cards, docking stations, industrial displays, and embedded systems.
Vertical DisplayPort Connector 20 Pin SMT — Frequently Asked Questions
What is a vertical DisplayPort connector 20 pin SMT?
A vertical DisplayPort connector 20 pin SMT is a 20-pin female receptacle that mounts upright on a PCB via surface-mount technology combined with through-hole anchoring pins. This vertical dp connector pcb mount provides a direct interface for DisplayPort cables, supporting high-bandwidth video and audio transmission. The vertical orientation aligns with rear I/O panels, making it ideal for graphics cards, industrial computers, and docking stations where panel access is required. The hybrid SMT+through-hole design ensures robust mechanical retention even under repeated mating cycles.

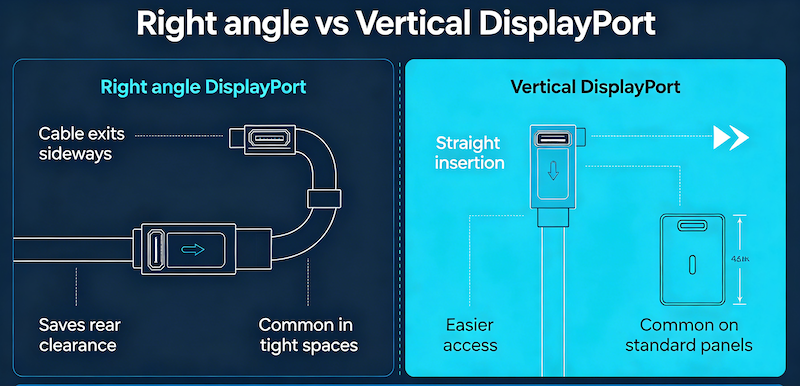

What is the difference between vertical and right-angle DisplayPort connectors?
A vertical DisplayPort connector mounts perpendicular to the PCB, with the cable insertion direction parallel to the board’s normal, typically aligning with chassis I/O openings. A right-angle connector lies parallel to the PCB, with the cable inserting from the side or top edge. Vertical connectors are preferred for standard rear-panel mounting in desktop computers and industrial enclosures, while right-angle connectors are used in slim devices where PCB space is limited and side-entry cabling is required. The choice depends on your mechanical enclosure and PCB layout constraints.
What is the purpose of the metal spring clip on this connector?
The metal spring clip on the DP-F06-15H provides additional grounding contact between the connector shell and the PCB ground plane, reducing electromagnetic interference (EMI) and improving signal integrity in high-frequency DisplayPort applications. It also helps secure the connector more firmly to the PCB, enhancing mechanical retention in high-vibration environments.
Does this connector support DisplayPort 2.1 and 8K video?
The DP-F06-15H is physically compatible with DisplayPort 2.1 as the 20-pin interface remains unchanged across DP 1.2 through 2.1. However, this specific model is rated for 32.4 Gbps (HBR3), which meets DisplayPort 1.4 specifications. For full UHBR20 (80 Gbps) DP 2.1 bandwidth, refer to our DP2.1-certified series. With DP 1.4 sources and cables, this connector supports 8K@60Hz, 4K@144Hz, and HDR via DSC (Display Stream Compression).
What is the 20-pin DisplayPort pinout?
The 20 pin DisplayPort pinout is standardized by VESA: Pins 1,3,5,7 = Lane 0,1,2,3 positive; Pins 2,4,6,8 = Lane 0,1,2,3 negative; Pin 9 = Config 1; Pin 10 = Config 2; Pin 11 = Ground; Pin 12 = Ground; Pin 13 = AUX_CH+; Pin 14 = AUX_CH-; Pin 15 = Ground; Pin 16 = Ground; Pin 17 = Return (Ground for AUX); Pin 18 = Hot Plug Detect (HPD); Pin 19 = Return (Ground for Power); Pin 20 = DP_PWR (3.3V, up to 500mA).
Are your DisplayPort connectors RoHS and REACH compliant?
Yes. Our RoHS DisplayPort connector products, including the DP-F06-15H, comply with RoHS 3 (EU Directive 2015/863) and REACH SVHC regulations. We use lead-free solder plating, halogen-free LCP housing (UL94V-0), and environmentally controlled manufacturing processes. Full compliance certificates and material declarations are available for OEM/ODM customers.
Can this connector be used in automotive and industrial applications?
Yes. This industrial DisplayPort connector is rated for -40°C to +85°C operation with 5,000-cycle durability and stainless steel EMI shielding. It is suitable for automotive infotainment, dashboard displays, industrial HMI panels, and rugged embedded systems. The hybrid SMT+through-hole mounting provides extra mechanical security against vibration and shock. Custom variants with conformal coating, extended temperature ratings, and IP-rated sealing are available upon request.
What is the MOQ and lead time for this vertical DisplayPort connector?
Standard MOQ for the vertical DisplayPort connector 20 pin SMT H=15mm (DP-F06-15H) is 1,000 pieces with a 2–4 week lead time. Free engineering samples are available for qualified projects and OEM/ODM customers. Volume pricing and dedicated production schedules are offered for orders of 10,000+ pieces. Contact our sales team to discuss your pcb mount displayport connector requirements.
Do you provide PCB footprints and technical drawings?
Yes. We provide comprehensive technical documentation including 2D/3D CAD drawings, PCB footprint libraries for Altium, Eagle, and KiCad, and high-speed routing guidelines. Our engineering team offers design review services to ensure optimal signal integrity for your vertical dp connector implementation, including recommendations for differential pair routing, impedance matching, and HPD circuit design. All documentation is available after sample request approval.
Vertical DisplayPort Connector 20 Pin SMT — Complete Guide for Engineers and Procurement Professionals
What Is a Vertical DisplayPort Connector 20 Pin SMT?
A vertical DisplayPort connector 20 pin SMT is a full-size 20-pin DisplayPort female receptacle designed for surface-mount PCB assembly in a 180° vertical orientation. The DP-F06-15H mounts flat on the PCB surface with the port opening facing upward, enabling top-panel and rear-panel display port designs without routing cables horizontally across the board. This DisplayPort 1.4 connector uses a hybrid attachment method — signal contacts are SMT-soldered while mechanical anchor pins pass through the PCB for wave soldering — providing superior pull-out resistance compared to fully SMT connectors.
DisplayPort 1.4 and HBR3 Performance
The 20 pin DisplayPort receptacle is fully compatible with DisplayPort 1.4 HBR3, supporting data rates up to 32.4 Gbps. This bandwidth enables 8K@60Hz, 5K@60Hz, and 4K@144Hz display outputs with HDR and DSC (Display Stream Compression). As a passive connector, the DP-F06-15H does not process or limit the protocol version — the actual supported resolution depends on the source chipset, cable, and sink display. The connector is also backward compatible with DisplayPort 1.2 and 1.3 standards.
Key Features for Display Port Applications
This vertical dp connector pcb mount is designed with several features that make it ideal for commercial and industrial display applications. The 5,000-cycle mating life rating ensures reliable performance in frequently reconnected environments such as monitors, docking stations, and test equipment. The hybrid SMT/through-hole attachment provides superior mechanical strength, while the gold-plated phosphor bronze contacts maintain stable signal integrity across the connector’s service life. The high-temperature LCP insulator body ensures compatibility with standard SMT reflow soldering processes.
The integrated metal spring clip is a key differentiator for this connector, providing additional grounding contact that reduces EMI and improves signal integrity in high-frequency DisplayPort applications. This feature is particularly valuable in graphics cards, gaming systems, and professional displays where electromagnetic interference can degrade video quality.
Applications Across Industries
This pcb mount displayport connector is widely used across multiple industries. In graphics cards and gaming GPUs, it serves as the primary video output for multi-monitor gaming systems and professional workstations. In industrial display equipment, it provides reliable connections for HMI panels, automation displays, and embedded controllers. Docking stations use it for laptop expansion, while medical imaging systems rely on its stable high-bandwidth performance for diagnostic displays. Digital signage, broadcast equipment, automotive infotainment, and embedded computing all benefit from the reliable performance of the DP-F06-15H.
SMT Assembly Considerations
When incorporating this vertical DisplayPort connector into your PCB design, several assembly considerations are important. The connector is supplied in EIA-481 compliant tape-and-reel packaging for high-volume SMT pick-and-place automated assembly lines, and in tray format for manual placement or prototyping. The through-hole anchor pins require a separate wave soldering step after the SMT reflow process, which should be accounted for in your manufacturing workflow. The high-temperature LCP insulator body withstands standard SMT reflow profiles without deformation.
Why Choose Vistar as Your DisplayPort Connector Supplier
Vistar Electronics is a trusted manufacturer and supplier of DisplayPort connectors serving customers in consumer electronics, industrial automation, medical devices, and communication equipment. Our DisplayPort connector lineup includes vertical SMT, right-angle SMT, and right-angle DIP configurations to support various PCB layout requirements. We offer competitive pricing, flexible MOQs, and responsive customer support to ensure your project stays on track.
With ISO 9001:2015 certification and a commitment to continuous improvement, Vistar is your reliable partner for high-quality interconnect solutions. Whether you need standard catalog items or custom OEM configurations, our engineering team is ready to assist you from prototype to production. For more technical resources, including PCB layout guidelines and connector selection guides, visit our technical blog or contact our engineering support team directly.
Explore our full range of DisplayPort connectors and related products: DisplayPort Connector Category, 20-Pin Vertical DP Connector SMT (Variant), Right-Angle SMT DisplayPort Connector.
Need Custom Vertical DisplayPort Connector Solutions?
Vistar Electronics manufactures DisplayPort connectors in vertical SMT, right-angle SMT, and right-angle DIP configurations. Custom heights, plating, and packaging available for OEM projects.
DP-F06-15H — Vertical DisplayPort Connector 20 Pin SMT H=15mm with Metal Spring Clip | RoHS 3 & REACH Compliant | OEM/ODM Available
Right-angle Display Port connector SMT 20 pin heighten type
20 Pin DisplayPort SMT Top Mount Connector — DP-F-02 Female PCB Receptacle for Monitors & Industrial Displays
Connector DP 20 Pin Clamp Board for Reliable High-Speed PCB Applications
DisplayPort Plug 20 Pin Straddle Mount PCB Connector — DP-M-01 DP Male Clamp 1.6mm for Cable & Panel Assemblies
Mid-mount mini DP connector right angle 20pin SMT/DIP
DP Connector 20 Pin Clamp PCB — Straddle Mount DisplayPort Male Connector for High-Speed Video Output, Embedded Systems & Industrial Boards
20 Pin DP Connector SMT Vertical T/H h=13mm
right angle displayport connector female 20p SMT

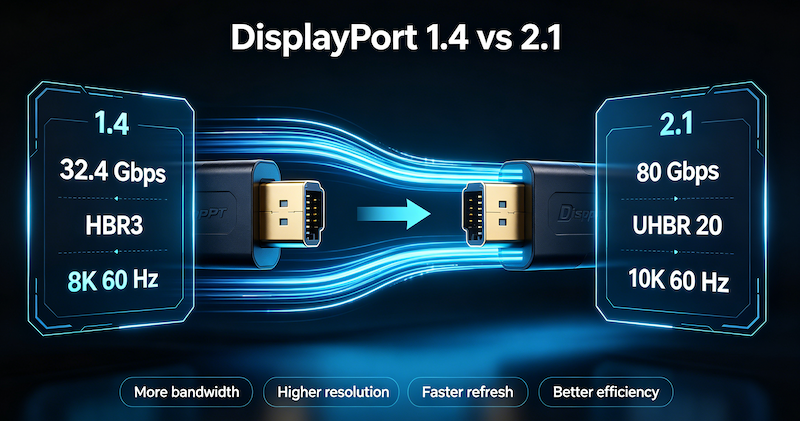

DisplayPort 1.4 vs 2.1: Full Bandwidth, Resolution & Compatibility Comparison
