Phone Jack Manufacturer – 3.5mm & 2.5mm Audio Jack Connectors for PCB & Panel Mount
Vistar Electronics supplies a complete range of phone jack connectors – 3.5mm and 2.5mm audio jacks in TRS (stereo) and TRRS (stereo + microphone) configurations. SMT/DIP/right‑angle/mid‑mount termination options. Rated 1A at 12VDC, up to 5,000 mating cycles. Gold‑plated phosphor bronze contacts ensure reliable signal transmission. RoHS 3 & REACH compliant. Free samples.
✅ TRS (Stereo) & TRRS (Stereo+Mic) Configurations
✅ SMT / DIP / Right‑Angle / Mid‑Mount
✅ 1A / 12VDC Rating
✅ 5,000 Mating Cycles
| Parameter | 3.5mm Series | 2.5mm Series |
|---|---|---|
| Mating Diameter | 3.50mm (0.141″, 1/8″) – Mini Plug | 2.50mm (0.094″, 3/32″) – Sub‑Mini |
| Conductor Configurations | TRS (3‑conductor stereo) / TRRS (4‑conductor stereo + mic) | TRS (3‑conductor) / TRRS (4‑conductor) |
| Signal Lines (TRS) | Tip (L), Ring (R), Sleeve (GND) | Tip (L), Ring (R), Sleeve (GND) |
| Signal Lines (TRRS) | L / R / GND / MIC (CTIA) or L / R / MIC / GND (OMTP) | L / R / GND / MIC (CTIA) or L / R / MIC / GND (OMTP) |
| Mounting & Termination | SMT (tape‑and‑reel), DIP Through‑Hole, Right‑Angle (90°), Mid‑Mount (Recessed) | |
| Current Rating | 1A | |
| Voltage Rating | 12VDC | |
| Contact Resistance | ≤ 50mΩ (initial) | |
| Insulation Resistance | ≥ 100MΩ at DC 100V | |
| Dielectric Withstanding Voltage | 250V AC for 1 minute | |
| Mating Cycles | 5,000 cycles (min) | |
| Contact Material | Phosphor Bronze with Gold Plating | |
| Housing Material | High‑Temp Thermoplastic, UL94‑V0 | |
| Shell / Shielding | Steel / Copper Alloy with Tin or Gold Plating (select models) | |
| Switch Options | Switchless / Tip Switch / Ring Switch / Dual‑Switch configurations | |
| Operating Temperature | -25°C to +85°C | |
| Compliance | RoHS 3, REACH, IEC 60603‑11, ISO 9001:2015 | |

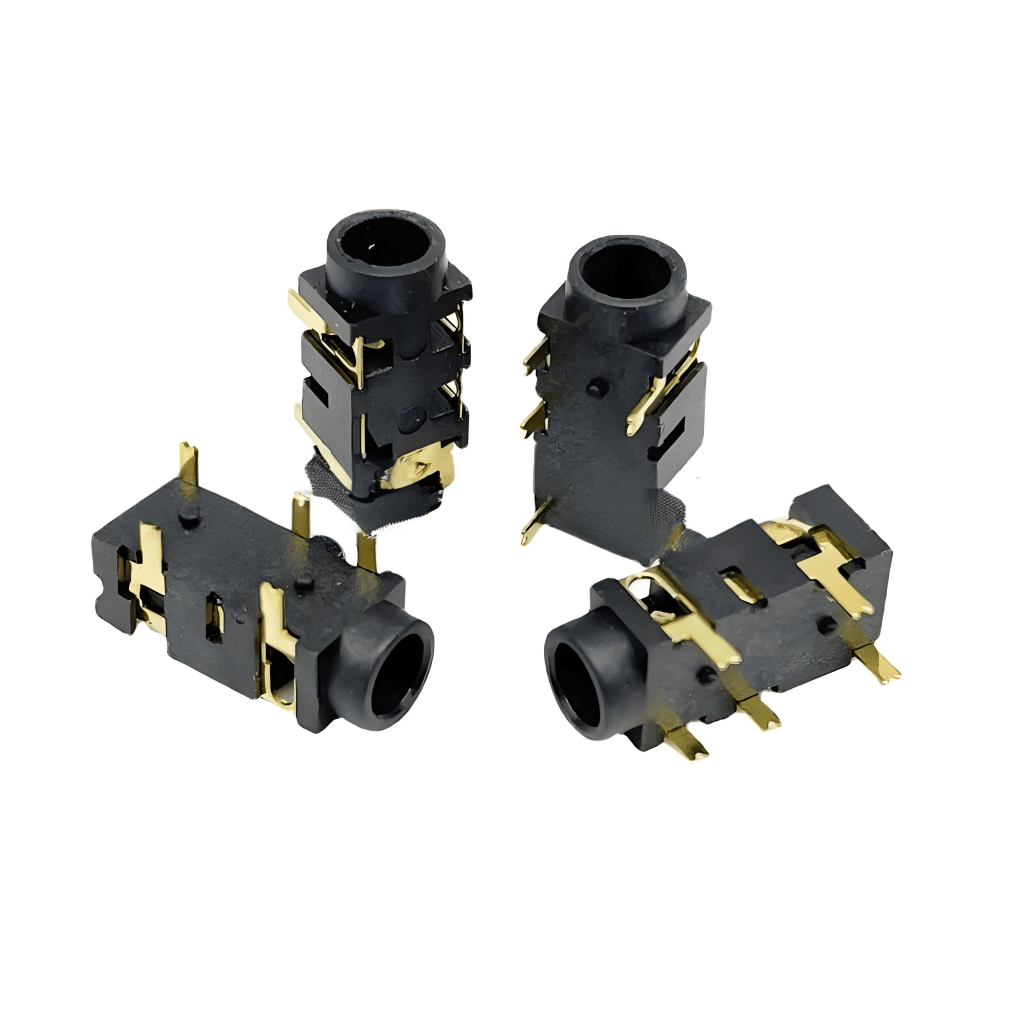

2.5mm Phone Jacks
Through-Hole Phone Jacks
3.5mm & 2.5mm – Industry‑Standard Sizes
3.5mm (1/8″) for consumer audio, laptops, smartphones, gaming headsets, and multimedia devices. 2.5mm (3/32″) sub‑miniature size for compact wearables, portable communication radios, embedded modules, and space‑constrained portable electronics where board real estate is at a premium.
TRS & TRRS – Stereo Audio & Microphone Support
TRS (3‑conductor) configuration for standard stereo audio (left / right / ground) – ideal for headphones, speakers, and line‑out applications. TRRS (4‑conductor) adds a microphone channel plus remote control button support (play/pause/volume), compatible with both CTIA and OMTP wiring standards for universal smartphone headset compatibility.
Multiple Termination Styles – SMT / DIP / Right‑Angle / Mid‑Mount
SMT (tape‑and‑reel) for automated pick‑and‑place assembly. DIP Through‑Hole for maximum mechanical retention and wave soldering. Right‑Angle (90°) for edge‑mount PCB designs. Mid‑Mount (recessed) for ultra‑thin devices reducing height above board. All termination styles support automated and manual assembly processes.
Gold‑Plated Contacts – Low Resistance & Corrosion Protection
Phosphor bronze contacts with standard gold plating deliver contact resistance ≤ 50mΩ initial, ensuring clean signal transmission and long‑term reliability. Gold plating provides superior corrosion protection against oxidation, maintaining signal integrity in humid or challenging environments.
Detection Switches – Tip Switch, Ring Switch & Dual‑Switch Configurations
Internal switch contacts (normally closed) actuated by plug insertion enable automatic speaker disconnect when headphones are plugged in, accessory detection, mode selection, and remote button‑press sensing. As documented in CUI Devices‘ audio jack technical guide, switched configurations allow designers to implement intelligent accessory interfaces without additional ICs.
RoHS 3, REACH, IEC 60603‑11 & ISO 9001:2015
All Vistar phone jack connectors are manufactured under ISO 9001:2015 and fully comply with RoHS 3 (EU Directive 2015/863) and REACH SVHC regulations. Dimensional and performance characteristics align with IEC 60603‑11 for LF concentric audio connectors – suitable for export to EU, North America, and all regulated global markets.
15+ Years Experience
Specialized in electronic connectors since 2009
ISO 9001 Certified
100% quality testing before shipment
Free Engineering Samples
Available for qualified projects
Fast Lead Time
2-4 weeks standard delivery
OEM/ODM Custom
Custom design & manufacturing
Global Service
Serving 50+ countries worldwide
What is the difference between 3.5mm TRS and TRRS phone jacks?
What is the difference between CTIA and OMTP wiring standards for TRRS phone jacks?
What mounting and termination options do Vistar phone jacks offer?
What is the purpose of internal detection switches in a phone jack?
Are Vistar phone jacks RoHS and REACH compliant?
What is the typical lifespan (mating cycles) of a Vistar phone jack?
What is the MOQ and can I get free samples?
Does Vistar support OEM/ODM customization for phone jacks?
Shenzhen Vistar Electronics Co., Ltd. is a professional phone jack manufacturer based in Pingshan District, Shenzhen, China – the global electronics manufacturing hub. Since 2009, we have specialized in the design, manufacturing, and global supply of audio interconnect solutions, including phone jack connectors, audio jack connectors, DC power jacks, USB connectors, and electromechanical switches for OEM and ODM customers in 50+ countries.
Our phone jack connector portfolio covers both 3.5mm (1/8″) mini‑plug and 2.5mm (3/32″) sub‑miniature sizes, available in TRS (3‑conductor stereo) and TRRS (4‑conductor stereo + microphone + remote control) configurations. Termination styles include SMT (tape‑and‑reel for automated pick‑and‑place), DIP Through‑Hole, Right‑Angle (90°), and Mid‑Mount (recessed) for ultra‑thin device integration. All models feature gold‑plated phosphor bronze contacts (contact resistance ≤ 50mΩ) and are rated 1A at 12VDC with 5,000 mating cycles minimum.
All Vistar phone jack connectors are manufactured under an ISO 9001:2015 certified quality management system, fully compliant with RoHS 3 (EU Directive 2015/863) and REACH SVHC environmental regulations. Dimensional and performance characteristics align with IEC 60603‑11 for concentric connectors used in low‑frequency (LF) audio applications such as the interconnection of headphones and microphones in sound system components.
For authoritative technical background, we recommend consulting the CUI Devices audio jack technical library (available through DigiKey) for detailed documentation on 2.5mm and 3.5mm audio jacks across multiple mounting styles and internal switch configurations, as well as the CECA (China Electronic Components Association) technical guide on 3.5mm plug connectors for PCB layout design considerations, ESD protection strategies, and grounding best practices for audio interface circuits. These resources validate Vistar‘s alignment with internationally recognized audio interconnect specifications and reliability standards.
Explore our related product categories: USB‑C Connectors, HDMI PCB Connectors, FPC Connectors, Automotive Connectors, Board‑to‑Board Connectors, and Cable Assemblies.
Contact our sales team for a free sample, technical datasheet, or custom OEM quotation – we respond within 24 hours. ✉️ sales@vistarelectronics.com | 📞 +86 150 1925 5609
