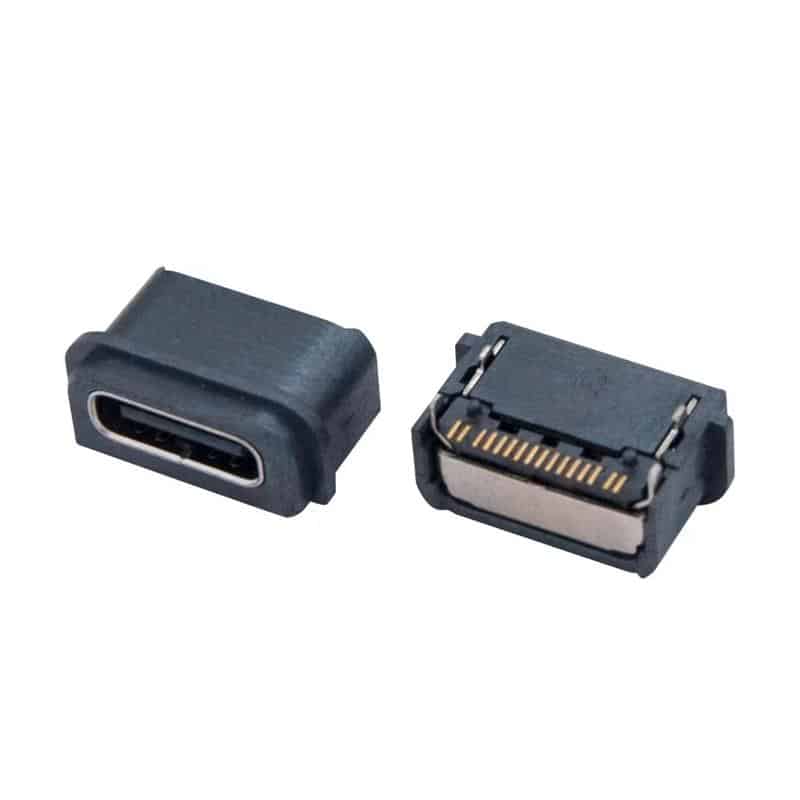

Waterproof USB Connector Type C 24 Pin — IP68 Mid-Mount USB-C Receptacle

Name: Waterproof USB Connector Type C 24 Pin — IP68 Mid-Mount USB-C Receptacle
Brand: Vistar Electronics
Availability: InStock

Part NumberUSB-TC24-FW10

Connector TypeUSB Type-C Female Receptacle

Pin Count24 Pins

Mounting TypeMid-Mount SMT

Waterproof RatingIP68

Overview

USB Connector Type C — Product Overview

The Middle Mount USB Connector Type C 24 Pin Waterproof USB-C Receptacle (USB-TC24-FW10) is a ruggedized USB Type-C waterproof connector designed for industrial, automotive, medical, and portable electronic devices requiring reliable high-speed connectivity in harsh environments. Featuring an IP68 waterproof structure, SMT mid-mount design, and dual-row 24-pin architecture, this connector combines compact PCB integration with outstanding durability and environmental protection.

Designed for next-generation electronics, this USB connector Type C supports high-current charging, USB 3.x high-speed data transmission, and reversible insertion convenience. The connector is ideal for devices exposed to dust, moisture, vibration, and outdoor operating conditions.

For official USB Type‑C standards and technical resources, visit the USB Implementers Forum (USB‑IF).

Technical Specifications

Waterproof USB Type C Connector — Technical Specifications

Parameter	Specification
Part Number	USB-TC24-FW10
Connector Type	USB Type-C Female Receptacle
Pin Count	24 Pins
Mounting Type	Mid-Mount SMT
Waterproof Rating	IP68
Current Rating	5A
Voltage Rating	30V DC
Insertion Force	20N Max
Withdrawal Force	5–20N
Durability	10,000 Cycles
Packaging	Reel / Tray
Connector Orientation	Right Angle
Compliance	RoHS / REACH

Technical information sourced from the official product page.

USB Type C Connector — Pinout and Functional Overview

The USB Type-C connector uses a symmetrical 24-pin architecture supporting multiple signal functions simultaneously. Major pin groups include:

Pin Group	Function
VBUS	Power Delivery
GND	Ground
D+ / D-	USB 2.0 Data
TX/RX Pairs	SuperSpeed Data
CC1 / CC2	Configuration & PD
SBU1 / SBU2	Alternate Modes

The reversible design uses mirrored signal assignments to ensure correct operation regardless of plug orientation.

Key Features

Key Features of the USB Connector Type C

💧 IP68 Waterproof USB Type C Connector for Harsh Environments Engineered with IP68 sealing to resist water, dust, and contaminants; ideal for outdoor electronics, industrial systems, marine equipment.

🔌 24 Pin USB C Connector Supporting Advanced Functions Supports USB Power Delivery, high-speed USB 3.x data transmission, and alternate mode functionality.

📐 Mid-Mount USB C Connector for Compact PCB Layouts Mid-mount SMT structure lowers profile height and improves PCB space utilization for slim products.

🔄 Reversible USB Type C Interface Design Symmetrical design enables plug insertion in either orientation, improving usability.

⚡ 5A High Current USB C Receptacle Rated at 5A/30VDC supports fast charging and USB PD applications in laptops, handheld terminals, industrial electronics.

🔁 Long Life Waterproof USB C Connector Female Durability rating exceeding 10,000 mating cycles ensures long-term reliability in high-usage applications.

Applications

Applications of the Waterproof USB Connector Type C

🏭 Industrial Automation Equipment Industrial control systems, HMI panels, PLCs, embedded computers requiring rugged USB connectivity.

🚗 Automotive Electronics EV charging systems, infotainment modules, vehicle communication interfaces, automotive USB charging ports.

🏥 Medical Devices Portable diagnostic instruments, medical monitoring systems requiring stable waterproof connectivity.

🌲 Outdoor & Rugged Electronics Outdoor communication equipment, handheld terminals, smart agriculture systems, marine devices.

📱 Consumer Electronics Laptops, tablets, docking stations, gaming accessories, smart home devices.

🤖 IoT and AI Edge Devices Compact embedded AI systems, networking hardware, intelligent edge computing products.

Why Choose Us

Why Choose Vistar Electronics USB Type C Connectors

🏭 Specialized Manufacturer Industrial USB-C connectors with extensive experience.

💧 Waterproof IP67/IP68 Solutions High-reliability sealed connectors for harsh environments.

⚡ Multi‑Standard Support USB4, USB 3.2, USB 3.1, and USB 2.0 compatible.

🔧 OEM/ODM Customization Tailored designs for specific application requirements.

✅ RoHS & REACH Compliant Environmentally friendly manufacturing.

🤖 Automated SMT Support High production capacity with reel/tray packaging.

🔄 Compatible Alternatives Direct replacements for TE, Molex, Amphenol, HRS, Foxconn connectors.

🌐 Full Product Range Explore the complete USB-C product line at Vistar Electronics Official Website.

FAQ

FAQ — USB Connector Type C

What is a USB Type-C connector?

USB Type-C is a reversible connector interface supporting power delivery, high-speed data transfer, audio, and video transmission through a compact 24-pin design.

What makes this USB-C connector waterproof?

The connector uses sealed structural components and waterproof engineering to achieve IP68 protection against water and dust ingress.

Can this waterproof USB Type-C connector support fast charging?

Yes. With a 5A current rating, the connector supports USB Power Delivery fast charging when integrated with compatible PD circuitry.

What is the advantage of a mid-mount USB-C connector?

Mid-mount connectors reduce device thickness and improve PCB layout efficiency, making them ideal for compact product designs.

Does this USB-C receptacle support video output?

Yes. The 24-pin USB-C interface can support DisplayPort Alt Mode and other alternate modes depending on the system chipset implementation.

How many insertion cycles can this connector withstand?

The connector is rated for over 10,000 mating cycles for long-term reliability in industrial and consumer applications.
