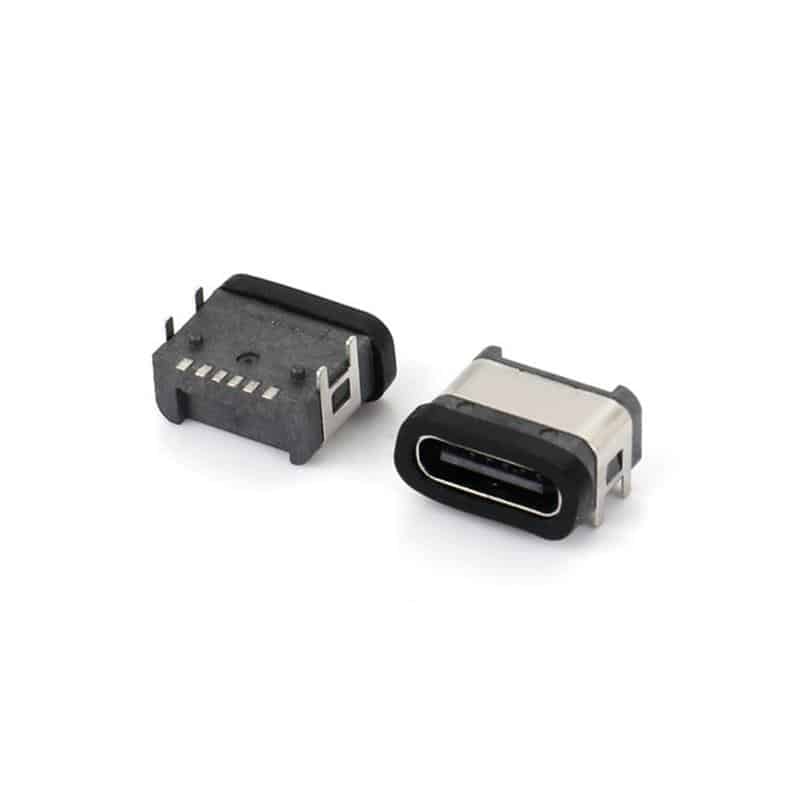

24Pin Waterproof USB-C Receptacle for Industrial, Outdoor & High-Speed Charging Devices

The 24Pin Waterproof USB-C Receptacle is a rugged high-performance USB Type‑C female connector specifically designed for electronic devices operating in demanding environments where waterproof protection, stable electrical transmission, and reliable charging performance are essential. Combining advanced USB Type‑C functionality with durable waterproof construction, this connector delivers excellent electrical reliability and long‑term mechanical durability for industrial and outdoor electronic applications.

As USB Type‑C technology rapidly becomes the universal standard for connectivity and charging across industrial automation equipment, automotive electronics, consumer devices, communication systems, and smart IoT products, manufacturers increasingly require durable waterproof USB‑C connectors capable of operating reliably in environments exposed to moisture, dust, vibration, and repeated insertion cycles.

This connector adopts a full 24‑pin USB Type‑C architecture, enabling complete USB‑C functionality including USB 3.1 high‑speed communication, USB Power Delivery charging, reversible insertion capability, TX/RX differential pairs, CC communication channels, VBUS power transmission, and auxiliary signal support. Compared with simplified USB‑C interfaces, the 24‑pin structure provides superior compatibility, enhanced signal integrity, and more stable electrical performance for modern electronic devices.

Its waterproof sealing structure significantly improves connector reliability in harsh environments where moisture and dust resistance are critical. Waterproof USB‑C receptacles are widely used in rugged handheld terminals, industrial controllers, outdoor communication equipment, marine electronics, automotive charging systems, embedded control devices, and portable smart electronics.

Supporting up to 5A current and 30V DC voltage, this waterproof USB‑C connector is suitable for high‑current charging systems and modern USB Power Delivery applications. The connector is engineered for more than 10,000 mating cycles, ensuring reliable long‑term operation under demanding commercial and industrial conditions.

According to the official USB Implementers Forum (USB‑IF), USB Type‑C has become the global connectivity standard because of its reversible interface, compact structure, high‑speed communication capability, and advanced power delivery functionality.

For detailed engineering documentation and compliance information, developers can reference the official USB Type‑C Cable and Connector Specification.

Waterproof protection standards are commonly defined according to IEC ingress protection specifications. Additional information regarding IP protection ratings can be found in the official IEC IP Rating Standard Overview.

This connector is also compatible with modern charging systems based on the official USB Power Delivery Specification, supporting intelligent charging and efficient power management functionality.

The 24Pin Waterproof USB‑C Receptacle offers an excellent balance of waterproof reliability, electrical stability, compact PCB integration, and manufacturing efficiency for next‑generation industrial and consumer electronic devices.
