HDMI Connector — 19 Pin Type A/C/D PCB Mount Connectors
Our professional-grade HDMI PCB connectors are engineered for high-speed data transmission in demanding environments. Designed for seamless integration onto printed circuit boards (PCBs), these 19-pin interfaces support the latest video standards, including 4K and 8K ultra-high-definition, ensuring crystal-clear audio and video delivery for both consumer and industrial applications.
4K & 8K Supported 19 Pin StandardGold-Plated ContactsRoHS 3 & REACHISO 9001 CertifiedFree Sample Available
| Parameter | HDMI Type A (Standard) | Mini HDMI (Type C) | Micro HDMI (Type D) |
|---|---|---|---|
| Pin Count | 19 Pins | 19 Pins | 19 Pins |
| Mounting Options | DIP / SMT / Right-Angle / Vertical | SMT Right-Angle / Mid-Mount | SMT Right-Angle / Mid-Mount |
| Current Rating | 0.5A | 0.5A | 0.5A |
| Voltage Rating | 40V AC/DC | 40V AC/DC | 40V AC/DC |
| Insertion Force | ≤ 35N | ≤ 35N | ≤ 35N |
| Mating Cycles | 10,000+ | 10,000+ | 10,000+ |
| Max Resolution | 8K@60Hz / 4K@120Hz | 4K@60Hz | 4K@60Hz |
| Operating Temperature | -40°C ~ +100°C | -40°C ~ +100°C | -40°C ~ +100°C |
Type A Standard / Full Size HDMI Connectors
Type D Micro HDMI Connectors
SMT Mount HDMI Connectors
DIP Through-Hole HDMI Connectors
Right Angle / 90° HDMI Connectors
Other HDMI Connector
0.5mm ZIF FPC Connector with Lifting Cover for Flexible PCB Applications
HDMI C Female Connector 19Pin for Compact High-Speed Multimedia Devices
HDMI Male Connector 19 Pin – Reliable Clamp Type PCB Mount Solution
HDMI male connector 19pin for wire soldering
HDMI panel mount connecotor 19 pin
4K & 8K High Definition
Supports HDMI 2.1 specification, up to 8K@60Hz and 4K@120Hz resolution, delivering crystal-clear audio and video transmission.
Full 19 Pin Specification
All HDMI connectors feature standard 19 pin design, compatible with Type A (standard), Type C (mini) and Type D (micro) form factors.
Multiple Mounting Options
Available in SMT, DIP, mid-mount, right-angle and vertical mounting styles to fit any PCB design requirement.
Gold-Plated Contacts
15μ” gold-plated copper alloy contacts ensure stable signal transmission and 10,000+ mating cycles durability.
Industrial Grade Temperature
Operating temperature range from -40°C to +100°C, suitable for harsh industrial and automotive environments.
Global Compliance
All products are fully RoHS 3 and REACH compliant, with complete certification documentation for global market entry.
15+ Years Experience
Specialized in electronic connectors since 2009
ISO 9001 Certified
100% quality testing before shipment
Free Engineering Samples
Available for qualified projects
Fast Lead Time
2-4 weeks standard delivery
OEM/ODM Custom
Custom design & manufacturing
Global Service
Serving 50+ countries worldwide
HD & 4K Televisions
Computer & Gaming Monitors
PS5, Xbox, Switch
Notebooks & Desktops
Home & Office Projectors
TV Boxes & Streaming Devices
HMI & Automation Systems
In-Vehicle Infotainment
Diagnostic Equipment
DSLR & Mirrorless Cameras
Home Theater Systems
Tablets & Media Players

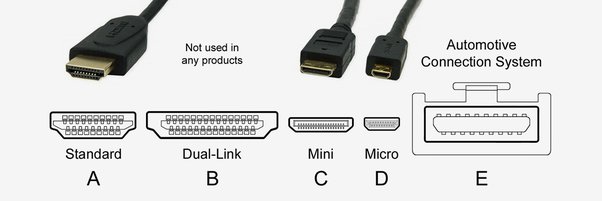

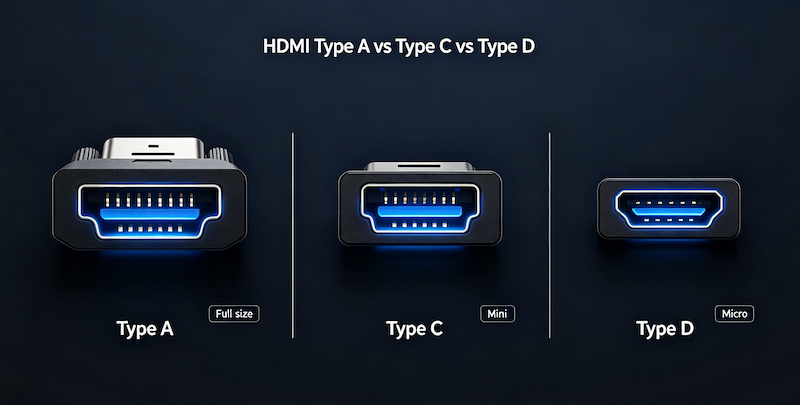

What is the difference between HDMI Type A, Type C and Type D connectors?
HDMI Type A is the standard full-size connector used in TVs, monitors and laptops. Type C (Mini HDMI) is a smaller form factor for cameras and portable devices. Type D (Micro HDMI) is the smallest size, commonly used in smartphones and tablets. All three types use the same 19 pin electrical specification.
What resolutions do your HDMI connectors support?
Our HDMI connectors support HDMI 2.1 specification, including 4K@120Hz, 8K@60Hz, and backward compatible with HDMI 2.0, 1.4 and 1.3 versions. They can transmit uncompressed digital audio and video signals up to 48 Gbps bandwidth.
What mounting styles are available for HDMI PCB connectors?
We offer a full range of mounting options: surface mount (SMT), through-hole (DIP), mid-mount (recessed), right-angle (90 degree) and vertical (180 degree). Custom mounting designs are also available for OEM projects.
Why are gold-plated contacts important for HDMI connectors?
Gold plating provides excellent corrosion resistance and low contact resistance, ensuring stable signal transmission over time. Our standard 15μ” gold plating guarantees 10,000+ mating cycles without signal degradation.
Are your HDMI connectors RoHS and REACH compliant?
Yes. All Vistar HDMI connectors are fully compliant with RoHS 3 (EU Directive 2015/863) and REACH SVHC regulations. We provide complete compliance documentation for all our products.
What is your MOQ and do you offer free samples?
Standard MOQ is 1,000 pieces per model. Free samples are available for qualified engineering and product development projects. Please contact sales@vistarelectronics.com with your project details to request samples.
HDMI Connector Manufacturer — Shenzhen Vistar Electronics
Shenzhen Vistar Electronics Co., Ltd. is a leading HDMI connector manufacturer based in Pingshan District, Shenzhen, China. Founded in 2009, we specialize in the design and production of high-quality 19 pin HDMI PCB connectors for global OEM and ODM customers. Our products fully comply with the latest HDMI 2.1 specification from HDMI Licensing Administrator, Inc.
Our HDMI connector product line includes Type A (standard), Type C (Mini HDMI) and Type D (Micro HDMI) in a variety of mounting styles: SMT, DIP, mid-mount, right-angle and vertical. All our HDMI connectors support up to 8K@60Hz resolution, feature 15μ” gold-plated contacts for 10,000+ mating cycles, and operate reliably in temperatures from -40°C to +100°C.
All products are manufactured in our ISO 9001:2015 certified factory and are fully compliant with RoHS 3 (EU Directive 2015/863) and REACH SVHC regulations. We offer custom design services, including custom pin configurations, mounting styles, plating and packaging.
Free samples are available for qualified engineering projects, with standard MOQ starting at 1,000 pieces per model. We supply HDMI connectors to customers in over 50 countries across industries including consumer electronics, automotive, industrial automation, medical devices and telecommunications. Contact us today at sales@vistarelectronics.com to discuss your HDMI connector requirements.
