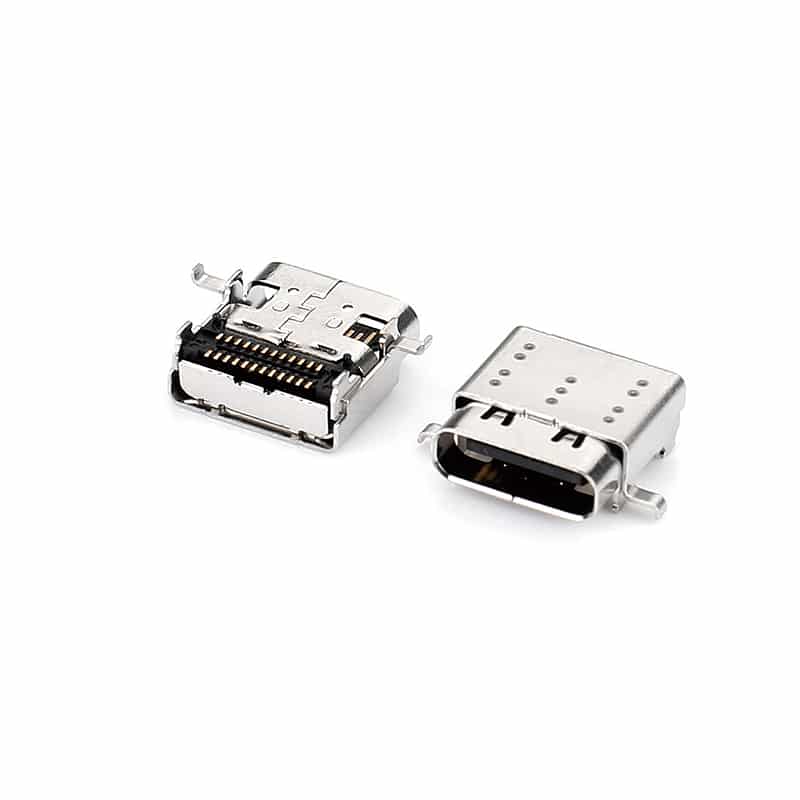

High-Speed USB 3.2 Gen 2 Type-C Connector 24 Pin SMT – Durable 10Gbps PCB Mount USB-C Receptacle
The USB 3.2 Gen 2 Type-C Connector 24 Pin is engineered for next-generation electronic devices requiring ultra-fast data transmission, reliable power delivery, and compact PCB integration. Designed with SMT mounting and reinforced soldering ears, this USB-C receptacle delivers excellent mechanical stability and long-term durability for demanding applications.
As modern electronics continue transitioning toward USB Type-C interfaces, manufacturers increasingly require connectors that combine high-speed performance with robust structural reliability. This USB 3.2 Gen 2 Type-C connector supports transmission speeds up to 10Gbps while maintaining stable signal integrity and efficient power delivery. The reversible Type-C interface also improves user convenience and reduces insertion errors.
Compared with conventional USB connectors, the 24-pin USB-C receptacle provides enhanced functionality, including fast charging compatibility, high-current capability, compact design, and support for multifunctional transmission protocols. The connector is widely used in laptops, tablets, docking stations, industrial controllers, smart home products, gaming devices, automotive electronics, and portable consumer electronics.
Its SMT on-board structure simplifies automated PCB assembly and improves production efficiency for large-scale manufacturing. The reinforced shell and precision contact structure help ensure stable electrical performance even after repeated insertion and withdrawal cycles.
At Vistar Electronics, we specialize in manufacturing high-quality USB Type-C connectors with strict quality control, stable supply capability, and customized engineering support for global OEM and ODM customers. The product is compliant with RoHS and modern environmental standards, making it suitable for international electronic applications.
For engineers designing high-speed devices, understanding USB-C structure and pin definitions is essential. You can also explore this technical reference from the USB Implementers Forum (USB-IF) for official USB specifications and compliance resources.
| Specification | Details |
|---|---|
| Product Name | USB 3.2 Gen 2 Type-C Connector 24 Pin |
| Part Number | USB-TC24-F26 |
| Connector Type | USB Type-C Female Receptacle |
| Mounting Type | SMT / Surface Mount |
| Pin Count | 24 Pin |
| Transmission Speed | Up to 10Gbps |
| Rated Current | 5A Max |
| Rated Voltage | 30V DC |
| Contact Resistance | Low Contact Resistance |
| Insulation Resistance | High Reliability |
| Insertion Force | 20N Max |
| Withdrawal Force | 5N–20N |
| Durability | 10,000 Mating Cycles |
| Packaging | Reel / Tray |
| Application | Consumer Electronics / Industrial Devices |
| Compliance | RoHS & REACH |
Ultra-Fast 10Gbps Data Transmission
The USB 3.2 Gen 2 Type-C Connector 24 Pin supports transmission rates up to 10Gbps, making it ideal for high-speed devices such as SSD enclosures, laptops, docking stations, gaming hardware, and industrial systems.
Durable 10,000-Cycle Mechanical Life
Engineered for long-term reliability, the connector maintains stable performance through up to 10,000 insertion and extraction cycles, significantly improving product lifespan.
Compact SMT PCB Design
The surface mount structure helps manufacturers optimize PCB space utilization while supporting automated SMT production processes for high-volume assembly.
Reinforced Mounting Stability
Integrated soldering ears improve mechanical retention and reduce stress on PCB solder joints during repeated plugging operations.
Excellent Signal Integrity
Optimized terminal structure helps minimize signal loss and electromagnetic interference, supporting stable high-speed communication.
Reversible USB Type-C Interface
The symmetrical Type-C design allows users to insert the connector in either direction, improving user experience and reducing wear caused by incorrect insertion.
Wide Compatibility
Compatible with USB Type-C devices including smartphones, tablets, laptops, power banks, industrial controllers, portable displays, and smart electronics.
