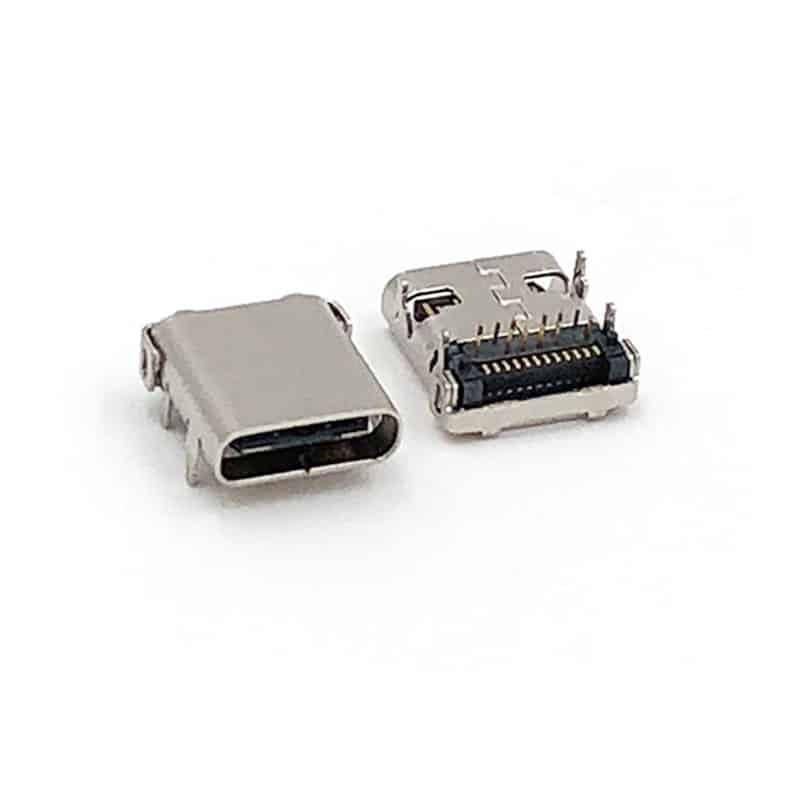

USB-C Connectors 24Pin SMT for High-Speed Data & Power Applications
USB-C Connectors 24Pin SMT Overview
The USB-C Connectors 24Pin SMT series is designed for modern electronic products requiring high-speed data transmission, USB Power Delivery charging, compact PCB integration, and reliable signal performance. Featuring a complete 24-pin USB Type-C architecture, this connector supports advanced communication protocols while maintaining a small footprint suitable for space-constrained designs.
As USB Type-C becomes the universal interface standard across consumer electronics, industrial devices, communication equipment, and portable systems, manufacturers require robust connectors capable of handling both high-current charging and high-speed data transfer. This connector integrates all required USB Type-C contacts, including VBUS, GND, CC, SBU, USB 2.0, and SuperSpeed differential pairs.
The 24 pin USB Type C connector utilizes precision SMT mounting technology for automated PCB assembly and improved manufacturing efficiency. Gold-plated contacts ensure stable electrical performance and long mating life while maintaining signal integrity under repeated insertion cycles.
Designed for USB 3.1, USB 3.2, USB4™, and charging applications, this USB Type C female connector supports modern power management architectures and reversible plug insertion. Engineers benefit from simplified product design while users enjoy a reliable and intuitive connection experience.
The connector housing is manufactured using high-temperature thermoplastic materials suitable for lead-free reflow soldering processes. Reinforced shell construction improves mechanical durability and helps withstand frequent insertion and removal operations.
This SMT USB C connector is widely deployed in laptops, tablets, docking stations, IoT devices, industrial control systems, gaming accessories, smart home products, communication equipment, and portable consumer electronics.
For official USB Type-C specifications and compliance information, engineers may also review
USB Implementers Forum (USB-IF)
and
USB Type-C Technical Specifications.
Combining compact dimensions, full-featured connectivity, excellent durability, and high-speed performance, the USB-C Connectors 24Pin SMT provide an ideal interconnect solution for next-generation electronic products.
24 Pin USB Type C Connector Specifications
| Parameter | Specification |
|---|---|
| Product Name | USB-C Connectors 24Pin SMT |
| Part Number | USB-TC24-F04 |
| Connector Type | USB Type-C Female Receptacle |
| Pin Count | 24 Pins |
| Mounting Type | Surface Mount Technology (SMT) |
| USB Standard | USB 2.0 / USB 3.1 / USB 3.2 / USB4™ Compatible |
| Current Rating | Up to 5A |
| Rated Voltage | 30V DC |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated |
| Housing Material | High Temperature Thermoplastic |
| Mating Cycles | 10,000 Cycles Min. |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS & REACH |
| Applications | Consumer, Industrial & Communication Electronics |
USB Type C Female Connector Features
Full 24-Pin Architecture
Supports complete USB Type-C functionality including power, charging, USB 2.0, and high-speed differential signals.
High-Speed Data Transmission
Compatible with USB 3.1, USB 3.2 and USB4™ applications requiring advanced bandwidth performance.
Power Delivery Ready
Supports modern USB charging architectures with high-current capability up to 5A.
Reversible Insertion Design
User-friendly USB Type-C interface eliminates plug orientation concerns.
SMT Manufacturing Efficiency
Surface mount design enables automated assembly and reduced production costs.
Reliable Signal Integrity
Precision contact design minimizes signal loss and improves communication stability.
Long Mechanical Life
Rated for thousands of insertion cycles in demanding electronic products.
RoHS & REACH Compliant
Environmentally friendly materials meet international manufacturing standards.
Applications of SMT USB C Connector
Frequently Asked Questions
What is a USB-C Connectors 24Pin SMT receptacle?
Does this connector support USB Power Delivery?
Can it be used for USB4™ applications?
What is the advantage of SMT mounting?
How many insertion cycles can the connector withstand?
Where can I learn more about USB Type-C standards?
