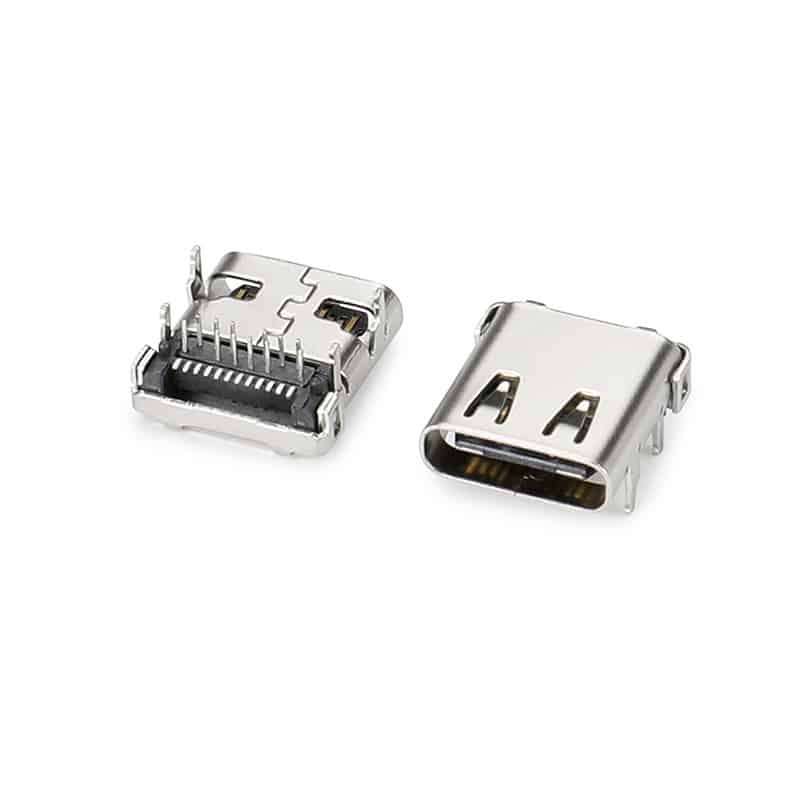

Des: USB 3.1 Gen 2 Type-C Motherboard Connector 24 pin Mid-mount USB-C receptacle 24p sinking plate 0.8mm
Part No: USB-TC24-F05
Specification:
Rating: 5A ,30VDC
Insertion force: 20N Max
Withdrawal force: 5-20N
Operating Life: 10,000Cycles
Packaging: Reel/Tray
