What is the difference between mezzanine and coplanar board-to-board connectors?

Mezzanine connectors stack two PCBs in parallel with a controlled height gap (3mm–30mm), allowing vertical board stacking. Coplanar connectors connect two PCBs side by side on the same plane. Mezzanine is used in dense multi-board assemblies; coplanar is used when boards need to be in the same horizontal plane.

What stacking heights are available?

Standard stacking heights range from 3mm to 30mm. Custom heights are available for OEM designs. The stacking height determines the PCB-to-PCB distance in the assembled connector pair.

What is the MOQ for board-to-board connectors?

Standard MOQ is 1,000 pieces per model. Free samples are available for qualified engineering projects. Contact sales@vistarelectronics.com with your project details.

Board-to-Board Connector Manufacturer · Shenzhen, China · ISO 9001

Board-to-Board Connector Manufacturer — 0.5mm to 2.54mm Pitch Mezzanine & Coplanar BTB Connectors

Q: What pitch options are available for board-to-board connectors?

Vistar Electronics offers board-to-board connectors in standard pitches of 0.5mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm. Custom pitch options are available for OEM projects.

Vistar Electronics manufactures a full range of board-to-board (BTB) connectors for PCB-to-PCB interconnection, including mezzanine stacking and coplanar configurations. Available in pitches from 0.5mm to 2.54mm, with stacking heights from 3mm to 30mm, current ratings up to 5A+, and SMT assembly. All products RoHS 3 & REACH compliant. OEM/ODM support. Free samples available.

0.5 – 2.54mm Pitch Stacking 3 – 30mm Mezzanine & Coplanar 5A+ Current RoHS 3 & REACH OEM / ODM Available

Product Categories

Board-to-Board Connector Types

2.54mm · DIP / SMT

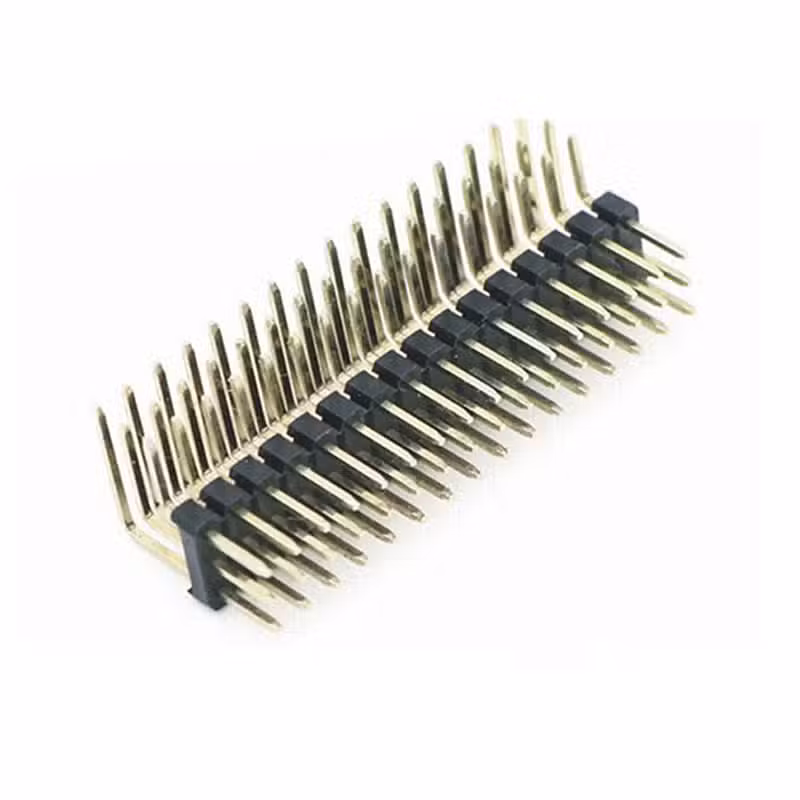

Pin Header Connectors

2.54mm (0.1") pitch single and dual row pin headers. DIP and SMT mounting. 1×2 to 1×40, 2×2 to 2×40 pin configurations. Up to 5A per contact. Standard for development boards and backplane systems.

Technical Reference

Board-to-Board Connector — Pitch Comparison

0.5mm Pitch

Pitch0.5mm

TypeSMT Mezzanine

Current0.5A per pin

Stacking3 – 8mm

Best ForMobile, wearables

1.0mm Pitch

Pitch1.0mm

TypeSMT Mezzanine

Current1A per pin

Stacking3 – 15mm

Best ForIoT, cameras

1.27mm Pitch

Pitch1.27mm

TypeSMT / DIP

Current1A per pin

Stacking4 – 20mm

Best ForIndustrial, SBC

2.0mm Pitch

Pitch2.0mm

TypeSMT / DIP

Current3A per pin

Stacking5 – 25mm

Best ForPower boards

2.54mm Pitch

Pitch2.54mm (0.1")

TypeDIP / SMT

Current5A per pin

Stacking6 – 30mm

Best ForDev boards, Arduino

Why Choose Vistar BTB Connectors

Key Features

📏

0.5mm – 2.54mm Full Pitch Range

Complete pitch range from ultra-fine 0.5mm for compact mobile designs to standard 2.54mm for development boards. All pitches available in multiple pin counts and row configurations.

📦

Stacking Heights 3 – 30mm

Controlled stacking heights from 3mm to 30mm for precise PCB-to-PCB spacing. Custom heights available for OEM designs where standard dimensions don't fit.

⚡

Up to 5A Per Contact

From signal-grade 0.5A (0.5mm pitch) to power-grade 5A (2.54mm pitch). High-current BTB variants available for mixed signal and power applications on a single connector.

🔗

Mezzanine & Coplanar

Both mezzanine (vertical stacking) and coplanar (side-by-side) configurations. Mezzanine enables compact multi-board assemblies; coplanar suits modular daughterboard designs.

🏭

SMT & DIP — Production Ready

SMT versions in tape-and-reel for pick-and-place automated assembly. DIP through-hole versions for wave soldering. Both packaging formats available from stock.

✅

RoHS 3 & REACH Compliant

All board-to-board connectors comply with RoHS 3 (EU Directive 2015/863) and REACH SVHC. Suitable for EU, North American, and all regulated export markets.

Industries & Use Cases

Board-to-Board Connector Applications

SmartphonesHigh-density 0.5mm

Tablets & LaptopsMulti-board assemblies

IoT DevicesModule stacking

Industrial PLCBackplane systems

CamerasSensor board stacking

WearablesCompact assemblies

Medical DevicesPortable diagnostics

Dev BoardsArduino / Raspberry Pi

AutomotiveECU module boards

5G EquipmentRF module stacking

DronesFlight controller boards

RoboticsSensor daughterboards

Common Questions

Frequently Asked Questions

What pitch board-to-board connectors do you offer?

We offer BTB connectors in standard pitches of 0.5mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm. Ultra-fine pitch (0.4mm) is available as a custom OEM option. The 2.54mm (0.1 inch) pitch is the most common for development boards and backplane systems, while 0.5mm is used in smartphones and ultra-compact consumer devices.

What is the difference between mezzanine and coplanar BTB connectors?

Mezzanine connectors stack two PCBs in parallel with a controlled height gap between them, allowing compact vertical multi-board assemblies. The stacking height (3–30mm) defines the PCB-to-PCB distance. Coplanar connectors connect two boards side by side on the same horizontal plane — used when the boards need to be in the same plane, such as modular daughtercard designs. See also our FPC connectors for flexible board connections.

Can I get custom stacking heights?

Yes. Standard stacking heights range from 3mm to 30mm in common increments. For OEM projects requiring non-standard heights or custom pin counts, our engineering team can produce custom configurations. Please provide your PCB stack-up drawing and contact sales@vistarelectronics.com.

What is the MOQ and lead time?

Standard MOQ is 1,000 pieces per model with a 2–4 week production lead time. Free samples are available for qualified engineering projects. For urgent requirements, in-stock standard models (2.54mm pin headers) can ship within 3–5 business days.

Are your BTB connectors compatible with standard footprints?

Yes. All standard pitch BTB connectors (0.5mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm) are manufactured to IEC and JEDEC standard footprints, ensuring compatibility with existing PCB layouts. Datasheets with full land pattern dimensions are available on each product page.

Board-to-Board Connector Manufacturer — Shenzhen Vistar Electronics

Shenzhen Vistar Electronics Co., Ltd. is a professional board-to-board connector manufacturer based in Pingshan District, Shenzhen, China. Our BTB connector product line covers all standard pitches from 0.5mm to 2.54mm, including mezzanine stacking connectors (3mm to 30mm heights) and coplanar configurations. Pin counts range from 2 to 80+ positions in single and dual-row formats.

All board-to-board connectors are manufactured in our ISO 9001:2015 certified facility with gold-plated phosphor bronze contacts, high-temperature LCP insulator bodies, and stainless steel retention hardware. Available in SMT tape-and-reel and DIP tray packaging for automated and manual assembly. Fully compliant with RoHS 3 and REACH SVHC regulations.

We supply OEM and ODM customers in 50+ countries across consumer electronics, industrial automation, medical devices, automotive, and telecommunications sectors. For related interconnect products, see our FPC/FFC connectors, wire-to-board connectors, and USB-C connectors. Contact sales@vistarelectronics.com for samples and bulk pricing.
