Vistar offers a complete range of pushbutton switches – from compact 6×6 & 12×12 SMT tact‑style to self‑locking, metal & IP67 waterproof types. Choose momentary or alternating operation, with ratings up to 5A/250VAC. Our pushbutton switches are widely used in industrial panels, consumer electronics, medical devices, and automotive controls.
| Parameter | Standard (Momentary) | Self-Lock | Metal (High-Current) |
|---|---|---|---|
| Operation Type | Momentary (return to open) | Self-lock (alternate action) | Momentary / Self-lock |
| Contact Configuration | SPST / SPDT | SPST / SPDT | SPST / SPDT |
| Rating | 0.5A / 12VDC | 0.5A / 12VDC | 3A – 5A / 250VAC / 30VDC |
| Contact Resistance | ≤ 100mΩ (initial) | ≤ 100mΩ (initial) | ≤ 50mΩ (initial) |
| Insulation Resistance | ≥ 100MΩ at 100V DC | ≥ 100MΩ at 100V DC | ≥ 100MΩ at 100V DC |
| Dielectric Strength | 250V AC for 1 min | 250V AC for 1 min | 1500V AC for 1 min |
| Actuation Force | 180gf / 260gf | 180gf / 260gf / 320gf | 300gf – 600gf |
| Operating Temperature | -25°C to +70°C | -25°C to +70°C | -25°C to +85°C |
| Mechanical Life | 50,000 – 100,000 cycles | 10,000 – 50,000 cycles | 10,000 – 50,000 cycles |
| Electrical Life | 10,000 – 50,000 cycles | 10,000 cycles | 6,000 – 10,000 cycles |
| Ingress Protection | — | — | IP40 / IP67 |
| Termination | SMT / DIP Through‑Hole | DIP Through‑Hole / Right‑Angle | Solder Lug / Quick Connect |
| Housing Material | High‑Temp LCP / PBT (UL94 V‑0) | High‑Temp LCP (UL94 V‑0) | Stainless Steel / Zinc Alloy |
| Contact Material | Phosphor Bronze with Gold / Silver | Phosphor Bronze with Gold | Silver / Gold |
| Compliance | RoHS 3, REACH, ISO 9001 | RoHS 3, REACH, ISO 9001 | RoHS 3, REACH, ISO 9001 |
Standard footprint pushbutton switches for SMT/DIP assembly, featuring crisp tactile feedback and up to 100,000 mechanical cycles.
Momentary (spring‑return) and self‑lock (alternate) operation modes to suit different control interfaces – from start buttons to on/off switches.
Stainless steel or zinc alloy pushbutton switches rated IP67 for outdoor, marine, and medical equipment; corrosion‑resistant and dust‑tight.
SMT, DIP through‑hole, right‑angle and solder lug versions to fit any PCB layout and automated assembly requirement.
LED‑illuminated pushbutton switches (red, green, blue, yellow) for enhanced HMI visibility – ideal for control panels and dashboard interfaces.
All pushbutton switches are manufactured under ISO 9001:2015 and comply with RoHS 3 (EU 2015/863) and REACH SVHC regulations.
Specialized in electronic connectors since 2009
100% quality testing before shipment
Available for qualified projects
2-4 weeks standard delivery
Custom design & manufacturing
Serving 50+ countries worldwide
Shenzhen Vistar Electronics Co., Ltd. is a professional pushbutton switch manufacturer based in Shenzhen, China – the global electronics manufacturing hub. Since 2009, we have specialized in the design and manufacturing of pushbutton switches, tactile switches, slide switches, detector switches and electromechanical switches for OEM and ODM customers in 50+ countries.
Our pushbutton switch portfolio includes 6×6mm and 12×12mm PCB pushbutton switches (SMT/DIP), self‑locking (alternate action) pushbutton switches, metal pushbutton switches (stainless steel / zinc alloy), IP67 waterproof pushbutton switches, and illuminated pushbutton switches. Every Vistar pushbutton switch is produced under an ISO 9001:2015 certified quality management system, fully compliant with RoHS 3 and REACH environmental regulations.
For industry‑standard technical background, we encourage OEM/ODM customers to refer to the official USB Type-C Specification (USB‑IF), the HDMI Specification (HDMI Licensing Administrator), and the DisplayPort Standard (VESA). These external standards help validate our alignment with globally recognized connectivity frameworks.

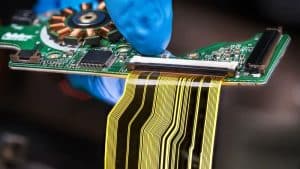

We offer free engineering samples, low MOQ starting from 1,000 pieces, and fast 2–4 week delivery. Explore our related product categories: USB‑C Connectors, HDMI PCB Connectors, FPC Connectors, Automotive Connectors, Cable Assemblies and Electromechanical Switches.
