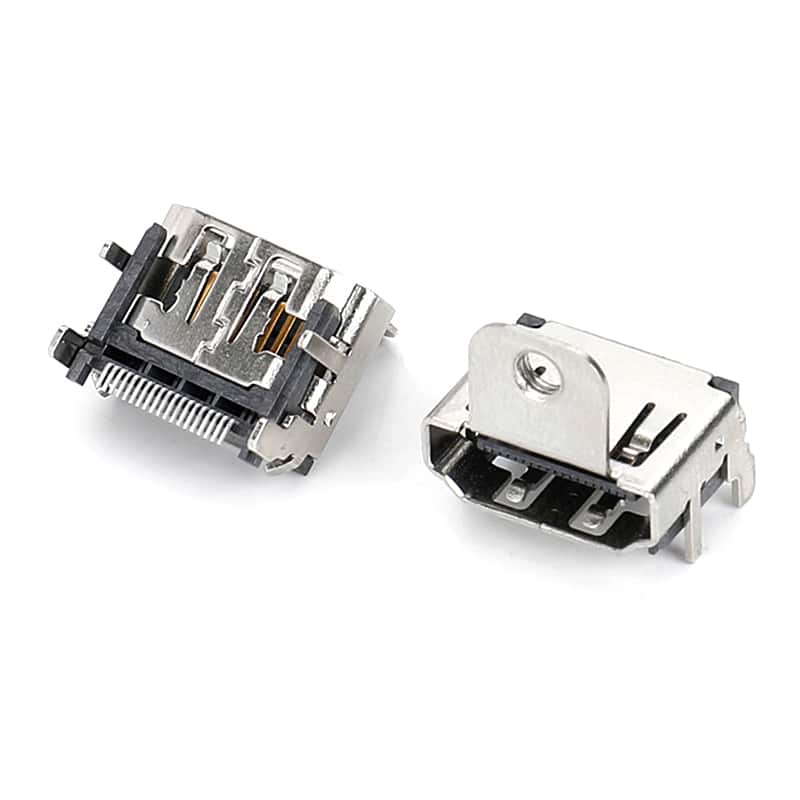

Des: Upright mount HDMI A Female Connector Side Flank DIP 19pin HDMI PCB Receptacle
Part No: HDMI-AF-1905
Specification:
Rating: 0.5A
Insertion force: 35N Max
Withdrawal force: 10N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray
