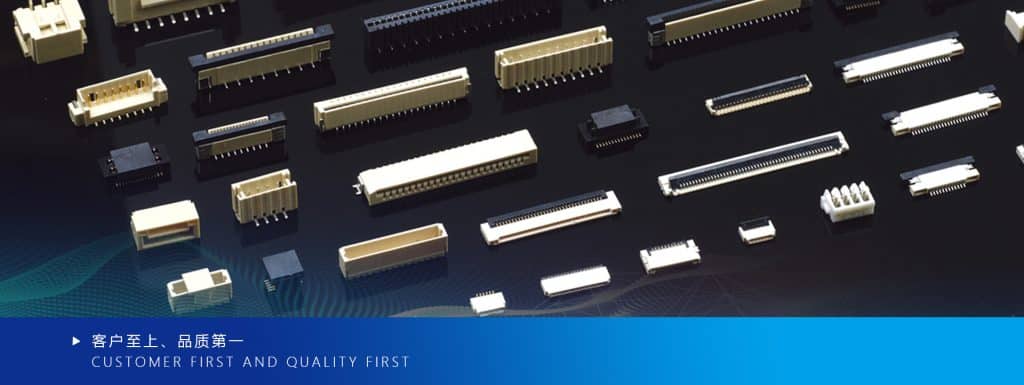

FPC connectors are a type of electrical connector used to establish a reliable and flexible connection between a flexible printed circuit board and other electronic components or devices.
Many pitches are available, such as 0.3 mm, 0.5 mm, 1.00 mm, 1.25 mm, 2.54 mm, but the most common pitches are 0.500 mm, 1.00 mm, and 1.25 mm. A single FFC can have different pitches between different conductors on the same cable, however this is uncommon. There are 0.3mm pitch, 0.5mm and 1.0mm pitch zif/non-zif types FPC Connectors with different heights normally
What is an FPC Connectors?
FPC stands for Flexible Printed Circuit, and an FPC connector is a type of electrical connector used to interface with flexible printed circuit boards (FPCBs). FPCBs are thin, lightweight, and highly flexible circuit boards that can be bent, folded, or twisted without damaging the internal circuitry. FPC connectors provide a reliable and secure way to connect FPCBs to other electronic components or devices.
Features
Here are the main features below about fcb:
- Flexibility:
- Flexible and it can bend or fold without compromising the electrical connection, making them suitable for applications where space is limited or where the connector needs to accommodate movement or bending.
- Thin and Compact Design:
- Have a very thin and compact design, allowing for a minimal footprint and enabling integration into space-constrained environments.
- High-Density Connections:
- Supporting a high number of contact points within a small area, allowing for high-density interconnections between electronic components.
- Ease of Assembly:
- It often features a simple and intuitive locking mechanism, making them easy to assemble and disassemble, facilitating installation and maintenance.
- Reliable Connections:
- Providing reliable and stable electrical connections, ensuring consistent signal transmission and minimizing the risk of intermittent or faulty connections.
Benefits
- Space Savings: The thin and compact design of FPC connectors allows for efficient use of space within electronic devices, enabling more compact and miniaturized product designs.
- Flexibility and Versatility: It can be used in a wide range of applications, from consumer electronics to industrial equipment, where the ability to bend or fold the connector is essential.
- Improved Reliability: FPC connectors are engineered to provide reliable and durable connections, reducing the risk of failures and ensuring the long-term performance of the electronic system.
- Ease of Integration: The simple and intuitive design of FPC connector simplifies the integration process, making them easy to incorporate into various electronic assemblies and reducing the time and effort required for installation.
- Cost-Effectiveness: Fpc are generally more cost-effective compared to alternative connector solutions, particularly in high-volume applications, making them an attractive option for manufacturers.
Applications
Consumer Electronics:
- Smartphones and tablets
- Laptops and notebooks
- Wearable devices
Automotive Electronics:
- Infotainment systems
- Instrument clusters
- Lighting and interior components
Industrial and Medical Equipment:
- Medical devices: FPC are used in various medical equipment, such as patient monitoring systems, diagnostic devices, and surgical instruments, where their flexibility and compact design are advantageous.
- Industrial automation: FPC are used to connect sensors, control panels, and other components in industrial automation systems, such as robotic arms, CNC machines, and programmable logic controllers (PLCs).
Aerospace and Defense:
- Avionics systems: such as aircraft avionics systems, connecting displays, control panels, and other electronic components.
- Satellite and space applications: like satellite and space-based systems, where their lightweight and flexible design are beneficial.
Household Appliances:
- Washing machines, dishwashers, and refrigerators: FPC are used to connect displays, control panels, and other electronic components in household appliances.
Audio and Visual Equipment:
- Televisions, projectors, and audio systems
The Difference Of FFC & FPC Connectors
While FFC and FPC connector share some similarities, they have distinct differences in their applications and characteristics.
FFC connectors are generally used in applications where flexibility and low cost are the primary considerations, such as in consumer electronics and household appliances.
FPC connectors, on the other hand, are more commonly used in industrial, automotive, and medical applications where higher reliability, higher contact density, and more robust connections are required.
How Do You Use FPC Connector?
Using FPC connector typically involves the following steps:
- Clean the FPCB contact pads to remove any debris.
- Carefully align the FPCB with the FPC connector.
- Gently insert the FPCB into the connector, applying even pressure.
- Engage the connector’s locking mechanism to secure the FPCB.
What is FFC & FPC connector reverse direction cable?
At each end, the Flat Flexible Cable (FFC) has its traces exposed on one side (and usually a stiffener added to the back side) to function as connector contacts.
In a “standard” layout, the contacts are both on the same side of the FFC; in a “reverse” layout, one end has the contacts exposed on the “top” side, and the other ends has the contacts on the “bottom” side.
This impacts the order of the signals when you plug both ends into connectors. The “normal” type of cable will actually reverse the order of the signals across the connector between ends, and this has to be accounted for in the PCB layout.
It also impacts how you can bend and fold and twist the cable to fit into the device.
How to Replace an Ffc Fpc Connector
Replacing an FPC connector can be a delicate process and should be done with care to avoid damaging the flexible printed circuit or other components. Here are the general steps to replace an FPC connector:
- Disconnect the electronic device from any power source and remove any necessary covers or components to access the FPC connector.
- Carefully open the locking mechanism on the FPC connector and remove the flexible printed circuit.
- Remove the old FPC connector from the PCB by desoldering it using a soldering iron and solder wick.
- Clean the PCB pads where the new FPC connector will be placed.
- Solder the new FPC connector to the PCB, ensuring that it is properly aligned and secured.
- Insert the flexible printed circuit into the new FPC connector and close the locking mechanism to secure the connection.
- Reassemble the electronic device and test it to ensure that the new FPC connector is functioning correctly.
Conclusion
In conclusion, FPC and FFC connectors are essential components in modern electronic devices, providing a reliable and compact solution for connecting flexible printed circuits and flat flex cables to PCBs and other components.
Understanding the features, differences, and proper use of these connectors is crucial for anyone involved in the design or repair of electronic devices.
