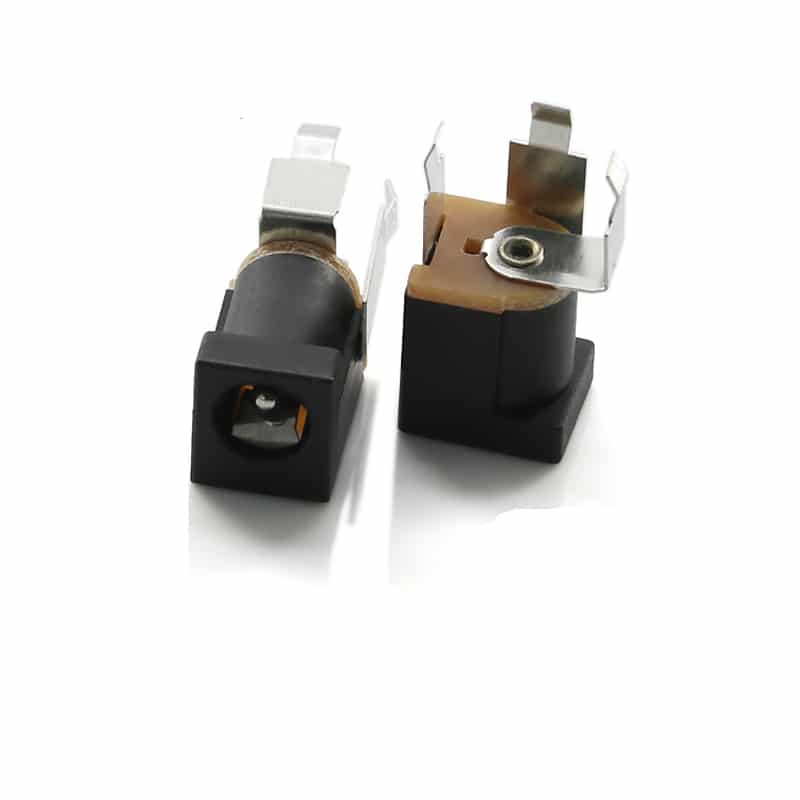

Des: Gold Plated DC Jack SMD 4Pin PCB Mount Female DC Power Connector 4P SMT Right Angle
Part No: DC-011D
Specification:
Rating: DC 30V 0.5A
Insertion & extraction Force: 3-20N
Life test: 5,000 Cycles
Packaging: Bag/Tray
