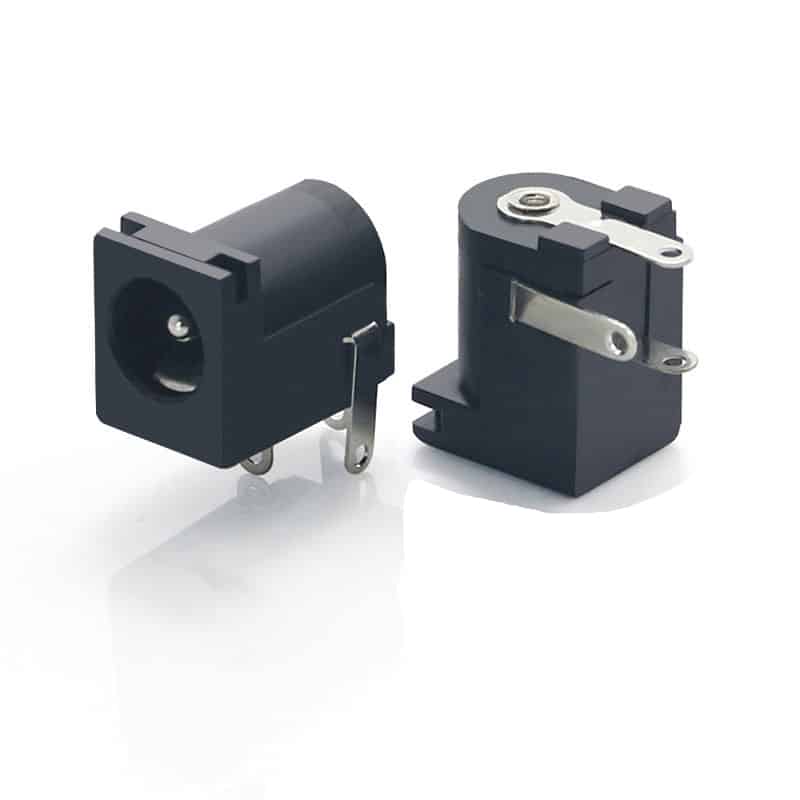

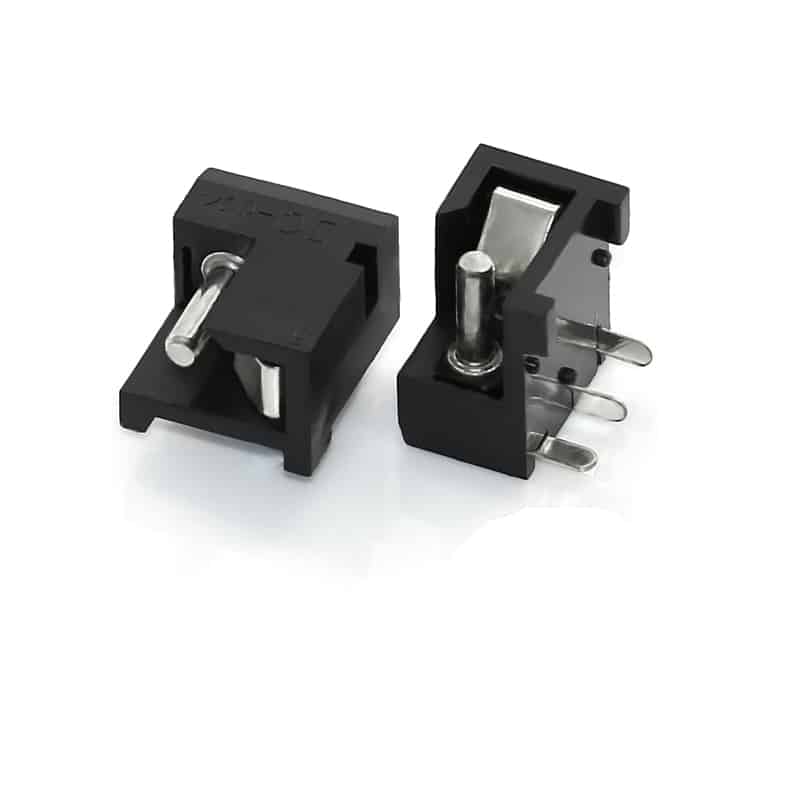

Vertical DIP DC Jack for PCB Power Applications – Reliable Female DC Power Socket

A dependable female DC power socket is the foundation of any device that relies on an external wall adapter or desktop power supply. The vertical DIP DC jack configuration is engineered to deliver a stable, low‑resistance connection between the adapter plug and the PCB power plane. Unlike horizontally mounted jacks that extend beyond the board edge, a vertical socket directs the barrel entrance perpendicular to the PCB, which naturally fits rear‑panel cutouts on instrument cases, set‑top boxes, and IoT gateways. The gold‑plated phosphor bronze contacts inside the jack maintain a contact resistance below 30 mΩ even after thousands of mating cycles, ensuring minimal voltage drop across the connector when powering sensitive analog or digital circuitry.

What makes this vertical DIP DC jack particularly reliable is its three‑pin through‑hole footprint. Two outer pins anchor the shell to the ground plane, while the center pin carries the positive voltage from the adapter. The third pin is a normally‑closed switch that opens as soon as a plug is inserted. This built‑in detection circuit allows designers to automatically disconnect an internal battery when external power is present, eliminating the need for an external FET or comparator circuit. The nylon‑reinforced PBT housing withstands wave‑solder temperatures up to 260°C, and the nickel‑plated brass body resists corrosion in industrial environments. For any design that needs a straightforward, mechanically robust DC input, a vertical female DC power socket simplifies both the BOM and the PCB layout.

When a power connector must survive daily plug insertions and occasional cable tugs, a through hole DC jack offers clear mechanical superiority over surface‑mount alternatives. Each terminal pin passes entirely through a plated hole in the board and is soldered on both the top and bottom sides. This creates a dual‑anchored joint that distributes mechanical stress across the full board thickness rather than concentrating it on a single surface pad. In vibration‑prone environments — factory floor controllers, vehicle‑mounted telematics, portable test gear — through‑hole mounting prevents the micro‑cracking and pad lifting that can plague SMT power connectors.

Thermal management is another key advantage. A through‑hole DC jack can handle brief current surges beyond its continuous rating because the large solder fillets and plated holes act as heat sinks, drawing thermal energy away from the contact springs into the PCB ground plane. The vertical orientation further aids heat dissipation by allowing natural convection to carry heat upward and away from the board. From an assembly perspective, through‑hole components are easier to inspect visually, and manual rework is possible with a standard soldering iron — no hot‑air rework station required. For low‑ to mid‑volume production, or products that will be serviced in the field, a through‑hole DC jack reduces both manufacturing and maintenance complexity while increasing long‑term field reliability.

Choosing a PCB mount DC power connector involves more than just matching the barrel diameter. Electrical, mechanical, and environmental parameters must align with the product’s intended use. The connector’s current rating, contact resistance, and insulation voltage directly impact performance: a jack rated for 2A at 12V DC will comfortably handle most consumer and light‑industrial adapter outputs, while the 500V AC dielectric withstanding voltage protects against transient surges on the power rail. The insertion‑detection switch — a feature often overlooked in cheaper jacks — adds a valuable control signal without consuming board space.

Mechanical considerations are equally important. The vertical DIP DC jack footprint typically uses three plated through‑holes arranged in a triangular pattern. The center pin is offset from the outer two, providing inherent polarity keying and preventing incorrect insertion during PCB assembly. The panel‑mount version includes a threaded bushing and nut, which transfers the cable insertion force to the enclosure wall rather than the solder joints — a critical design choice for devices where the power jack is user‑facing. When laying out the PCB, the designer must keep the area around the jack free of tall components to accommodate the mating plug body, and provide adequate ground plane connectivity to the shell pins for both mechanical anchoring and EMI suppression. Paying attention to these design details ensures the PCB mount DC power connector performs reliably across the full product lifecycle.

The 2.1mm DC barrel jack has become the de facto standard for low‑voltage power connections in everything from Arduino‑based prototypes to professional audio equipment. Its ubiquitous 5.5mm outer / 2.1mm inner barrel dimension means users can replace a lost or damaged adapter with thousands of off‑the‑shelf options, avoiding proprietary charger lock‑in. This vertical DIP DC jack fits snugly into the rear panel of effects pedals, where musicians plug and unplug power supplies daily. The through‑hole anchor ensures the jack won’t loosen even after years of road use.

In the smart home sector, IoT hubs and mesh routers rely on this same 2.1mm DC barrel jack for their low‑profile power entry. The vertical orientation keeps the barrel parallel to the board edge, allowing the jack to protrude through a precisely cut rear slot without requiring an L‑shaped mounting bracket. Industrial applications — PLC modules, sensor gateways, machine vision cameras — benefit from the connector’s wide operating temperature range and robust nickel‑plated shell, which resists corrosion in unconditioned factory air. Test and measurement instruments also favor the 2.1mm barrel form factor because it allows a simple, fused power input that can be isolated from the chassis ground through the built‑in switch terminal, enabling floating measurements when needed.

Vertical DIP mounting has become the preferred orientation for power jacks in dense, single‑board designs. When a DC jack is mounted vertically, the actuator (the barrel entrance) points directly away from the board surface. This allows the entire connector body to sit within the PCB outline, rather than hanging off the edge. The result is a more compact board that fits neatly into standard rectangular enclosures without requiring a secondary bracket or right‑angle adapter. The vertical layout also simplifies trace routing: the power and ground planes can be poured directly beneath the connector footprint, creating a low‑impedance path for return currents.

From a manufacturability standpoint, vertical DIP components are compatible with automated wave‑soldering lines and are easier to hand‑solder than right‑angle parts, because gravity holds the component flush against the board during assembly. The triangular pin arrangement of a three‑pin jack provides inherent mechanical stability before soldering, reducing the risk of misalignment or tombstoning. For designers who need to minimize board height, the vertical jack sits only as tall as its housing — typically less than 10mm — which is often shorter than a right‑angle equivalent that must account for the cable bend radius. These practical benefits make vertical DIP the default choice for power input jacks in a wide range of cost‑sensitive and performance‑critical products.

Choosing the correct DC power jack for a PCB design requires evaluating five key factors. First, current rating: select a jack whose continuous rating exceeds the maximum current draw of the circuit by at least 20% to provide a safety margin against inrush and sustained loads. Second, mating cycle life: for consumer devices that are plugged in once and rarely unplugged, 5,000 cycles is more than adequate; for test equipment or field‑serviceable gear, consider a connector rated for 10,000 cycles or more. Third, mounting style: through‑hole DIP is mechanically superior for panel‑mounted applications, while SMT may be acceptable for internal board‑to‑board connections where mechanical stress is minimal.

Fourth, auxiliary features: an insertion‑detection switch is invaluable for battery‑backed systems, allowing seamless transition between external and internal power without a dedicated power‑management IC. Fifth, environmental sealing: for wash‑down or outdoor applications, look for IP67‑rated versions with a sealed actuator and housing. Additionally, always verify that the jack’s barrel diameter (2.1mm or 2.5mm) matches the intended adapter plug. Ordering samples and testing the mechanical fit with the actual adapter cable before finalizing the PCB footprint can prevent costly board re‑spins. For more guidance on connector selection, visit our connectors product page or explore the full DC power jack catalog.
