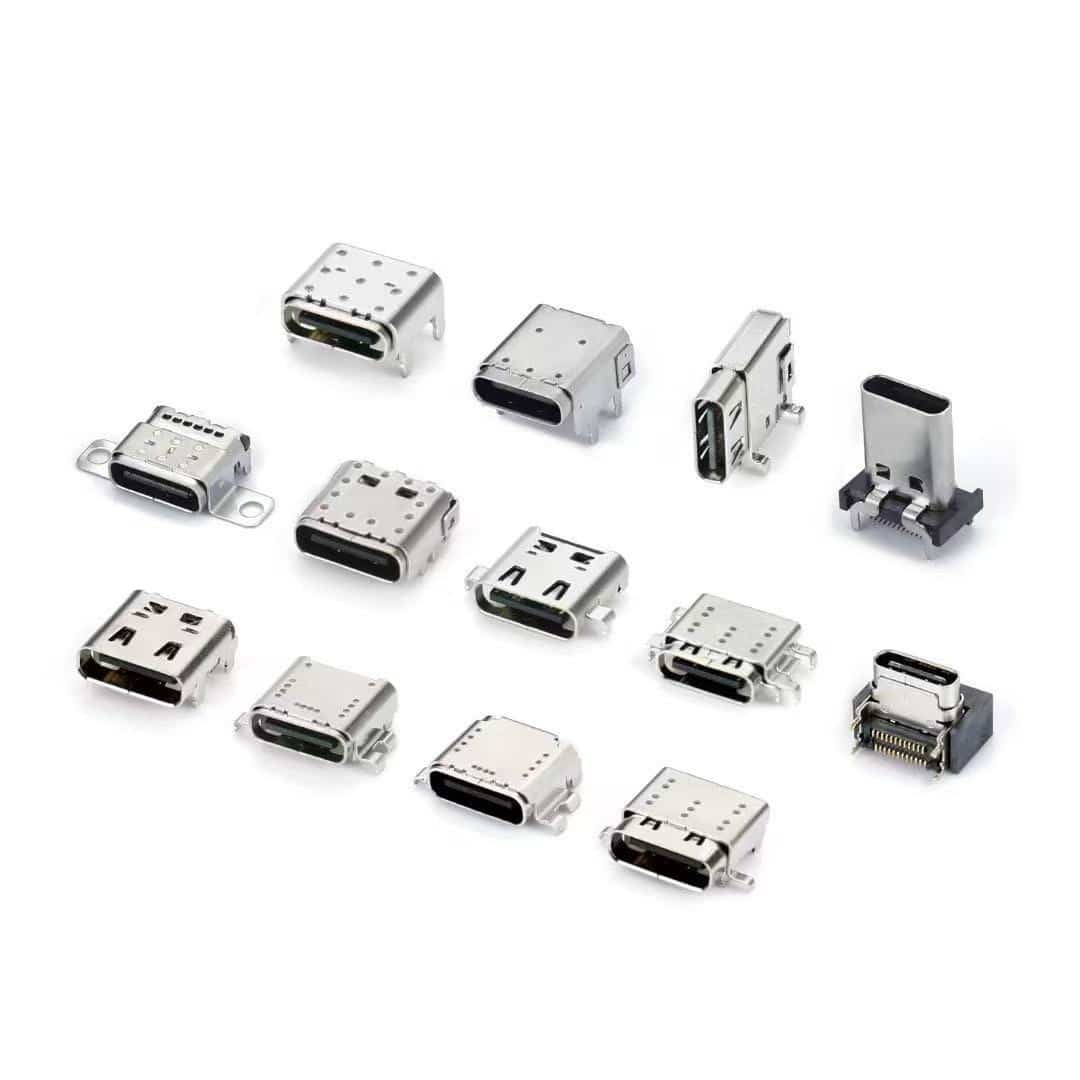

USB C Connector
• New Arrivals USB4 Gen3 (40Gbps) | Thunderbolt 4 Ultra-High-Speed Data Transfer
• Supports USB 4.0, USB 3.2, USB 3.1 and USB 2.0 Standards | Provide 24/16/12/9/6 Pin Etc
• Robust Design Withstands Over 10,000+ Mating Cycles | 5A High Current Design
• Waterproof USB-C Receptacle Connector IPX8,IPX7 & IPX6 Waterproof Options | 24/16/6 Pins Available
USB-C Connectors Categories
Features of USB Type C Connector
- Reversible Design:
The USB C connector is reversible, which can be plugged in either way up, making it more user-friendly than previous USB connector types. - Increased Power Delivery:
USB-C supports up to 100W of power delivery, charging larger devices like laptops, smartphones, and other mobile devices. - High-Speed Data Transfer:
It supports data transfer speeds up to 40Gbps, significantly faster than previous USB versions. - Support for Multiple Protocols:
It can support various protocols, including USB, DisplayPort, HDMI, and Thunderbolt 3, allowing it to be used for a wide range of applications. - Compact Size:
The USB C PCB connector is smaller and more compact compared to previous USB connector types, making it well-suited for thin and lightweight devices. - Improved Durability:
More durable, with a higher insertion rating of 10,000 cycles, compared to the 5,000 cycles of previous USB connectors. - Bi-Directional Power Flow:
Type C supports bi-directional power flow, meaning devices can both charge and be charged through the same port. - Audio and Video Support:
It can transmit audio and video signals, allowing for the connection of displays, speakers, and other multimedia devices. - Universal Adoption:
Becoming increasingly popular and is being adopted by a wide range of device manufacturers, making it a more universal connector standard.
Applications
◦ Consumer Tech: Ultra-fast phone charging, 8K video docking stations.
◦ Automotive: In-car entertainment systems with dual-device charging.
◦ Medical: Sterilizable connectors for portable diagnostic tools.
◦ Industry 4.0: Ruggedized USB-C for factory robotics.
Related Products
Why Choose us
◦ Rapid Prototyping: 72-hour sample delivery worldwide.
◦ Engineering Support: Free PCB layout optimization guides.
◦ Cost Efficiency: 15% lower pricing at 10K MOQ.
FAQ
• Q: Do your connectors support video output?
A: Yes – DisplayPort 1.4 Alt Mode enables 8K@60Hz.
• Q: Are custom cable lengths available?
A: Customizable from 0.5m to 5m with reinforced stress relief.
• Q: What’s the lead time for bulk orders?
A: 2-4 weeks for standard SKUs; expedited options available.
