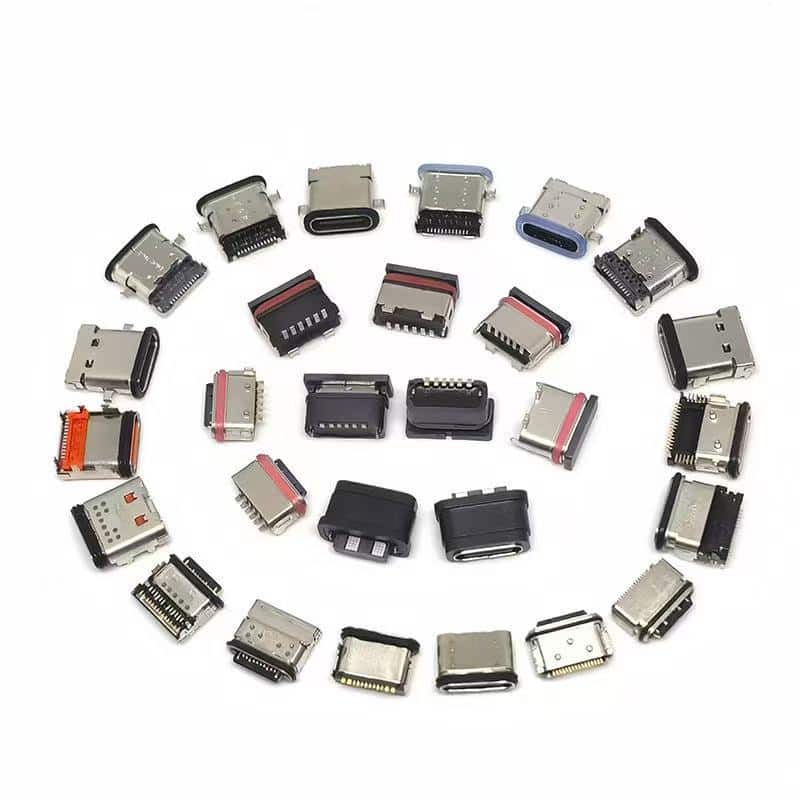

IP68 USB C Connector Waterproof Female: Engineering Marvel for Harsh Environments

Enter the IP68 USB C Connector waterproof female. This small component is a true feat of engineering, marrying the high-speed data transfer and robust power delivery of the USB Type-C standard with the highest level of commercially available ingress protection. It’s the unsung hero enabling ruggedized devices to operate reliably in the harshest environments imaginable.

In the relentless advance of technology, devices are becoming smaller, faster, and more powerful. Yet, this progress often runs headlong into a fundamental challenge: the physical world. Dust, water, extreme temperatures, and vibration are the natural enemies of sensitive electronics.

While consumers expect their devices to function flawlessly anywhere—from a dusty workshop to a rain-soaked hiking trail or even a boat deck—the ports and connectors remain the most vulnerable points of entry for environmental hazards.

The Dominance of USB-C Connector

Before diving into the waterproofing, it’s essential to appreciate why ruggedizing this specific connector is so important. USB-C is no longer just an option; it’s the global standard. Its advantages are numerous:

• Reversibility: No more fumbling; the plug fits either way.
• High-Speed Data Transfer: Supporting protocols like USB 3.1, USB 4.0, Thunderbolt, and DisplayPort, it can handle massive data volumes.
• Power Delivery (PD): Capable of delivering up to 240W, it can charge everything from smartphones to high-powered laptops and industrial equipment.
• Compact Footprint: Its small size allows for sleeker device designs.

For designers of industrial, marine, automotive, and rugged consumer electronics, the challenge isn’t whether to use USB-C, but how to implement it without compromising the device’s integrity.

Decoding IP68 USB C Connector : The Gold Standard of Protection

The “IP” in IP68 stands for “Ingress Protection,” a standard defined by the International Electrotechnical Commission (IEC). The two digits following the IP have specific meanings:

• First Digit (6): Relates to solid particle protection. A rating of ‘6’ is the highest possible level, meaning the connector is completely dust-tight. No ingress of dust is permitted.
• Second Digit (8): Relates to liquid ingress protection. A rating of ‘8’ is the highest common level, indicating the device is suitable for continuous immersion in water under conditions specified by the manufacturer. This typically means immersion beyond 1 meter, often for 30 minutes or longer at depths of 1.5 meters or more.

An IP68 rating signifies that the connector is designed to withstand both fine particulate matter and prolonged submersion.

The Engineering Challenge: Sealing the Socket

Creating a waterproof male plug (the cable end) is relatively straightforward. The true engineering marvel lies in sealing the female connector (the socket or receptacle). This component is a direct opening into the device’s chassis, leading straight to the sensitive printed circuit board (PCB). Any failure here means a catastrophic failure for the entire device.

Achieving IP68 in a component with up to 24 tiny, densely packed pins, all while maintaining electrical signal integrity and mechanical durability, requires sophisticated design and material science.

Here’s how engineers achieve this feat:

1. Precision O-Rings and Gaskets:
The primary defense mechanism involves high-precision seals. These are typically made from resilient materials like silicone, fluoroelastomers (like Viton), or EPDM rubber, which resist compression set and can handle temperature extremes.

• Panel Sealing: An O-ring is often placed between the connector’s flange and the inside wall of the device housing (the panel). When the connector is mounted, this O-ring is compressed, creating a watertight seal.
• Interface Sealing: Internal gaskets are meticulously designed around the connector shell and the internal mating interface to prevent water from creeping past the exterior shell.

2. Potting and Encapsulation:
To ensure no liquid or dust can penetrate through the connector itself—between the pins or around the insulator housing—engineers use potting.

• Back-End Seal: The rear of the connector, where the pins transition to the PCB contacts, is often filled with a hard-setting epoxy or a flexible silicone compound. This process, known as encapsulation or potting, completely seals the internal wiring and pins from the environment.

3. Advanced Material Selection:
Every part of the connector must resist corrosion and degradation.

• Housing/Shell: Typically made from high-grade stainless steel (like SUS304) or specialized thermoplastic polymers (like PBT or LCP) that offer structural integrity and resistance to rust, saltwater, and chemicals.
• Contacts: The electrical pins are heavily plated, often with gold over nickel, to ensure excellent conductivity and prevent oxidation and corrosion, even in humid or saline environments.

4. Seamless Construction and Tight Tolerances:
Many high-end IP68 connectors use insert molding or overmolding techniques. The plastic insulator is molded directly around the metal contacts and shell, eliminating microscopic gaps where water could enter. Manufacturing tolerances are incredibly tight to ensure perfect fits for seals and mating components.

Mated vs. Unmated Protection

A critical distinction in waterproof connectors is their state of protection:

• Unmated: Some usb c waterproof connectors are designed to be waterproof even when nothing is plugged in. This is the most challenging design, requiring intricate internal sealing mechanisms.
• Mated: Others achieve their IP68 rating only when plugged into a similarly IP-rated male cable assembly (often featuring screw-on or bayonet-style locking mechanisms to compress a seal) or when a waterproof dust cap is secured.

For applications where the port might be exposed while the device is in use, unmated protection is essential and represents the pinnacle of this engineering discipline.

Applications: Where Reliability is Non-Negotiable

The ability to bring high-speed data and significant power to challenging locations opens up a world of possibilities. Key applications for waterproof usb c receptacle include:

• Industrial Automation: Sensors, data loggers, and machine vision systems in factories that undergo frequent washdowns or are exposed to dust and lubricants.
• Marine Electronics: Chartplotters, fish finders, communication systems, and deck lighting that must withstand saltwater spray and even full submersion.
• Rugged Consumer Goods: High-end smartphones, tablets, action cameras, outdoor Bluetooth speakers, and power banks designed for outdoor adventurers.
• Medical Devices: Equipment that requires frequent sterilization or cleaning with liquids, demanding completely sealed interfaces.
• Transportation and Automotive: Exterior-mounted cameras, sensors, and charging ports on vehicles, motorcycles, and agricultural equipment exposed to rain, mud, and high-pressure washing.
• Outdoor Telecommunications: Sealed enclosures for networking equipment and surveillance systems.

Design Considerations for Engineers

Integrating these connectors isn’t as simple as swapping out a standard part. Engineers must consider:

1. Panel Cutout and Mounting: The physical mounting to the device chassis is critical. Whether it’s front-mounted, rear-mounted, or mid-mounted, the cutout must be precise to ensure proper compression of the panel O-ring.
2. Mating Cables: A waterproof receptacle is only half the solution. The mating cable must also be IP-rated and designed to create a secure seal with the specific female connector.
3. Durability and Cycle Life: How many times can the connector be plugged and unplugged before the seals degrade? High-quality components offer thousands of mating cycles.
4. Thermal Performance: Encapsulation can sometimes impact heat dissipation. For high-current USB Power Delivery applications, thermal management must be evaluated.

Maintenance and Installation Tips

1. Ensure proper alignment during assembly to maintain waterproof integrity
2. Regularly inspect sealing rings for wear or damage
3. Use compatible waterproof cables to maintain system protection
4. Follow manufacturer’s torque specifications for screw-type connectors

Conclusion

The waterproof usb type c connector is far more than just a port; it’s an enabler. By combining the most versatile and powerful connection standard in the world with the highest level of environmental protection, it allows engineers to push the boundaries of where technology can go.

These components represent a perfect synergy of material science, precision engineering, and practical necessity. They are the silent guardians that ensure our increasingly sophisticated devices can survive and thrive, not just in the comfort of an office, but in the most demanding corners of the planet. In a world that expects ubiquity and reliability, the IP68 USB C connector is truly an engineering marvel.
