Industrial-Grade and Consumer-Grade HDMI Connectors: The Specific Differences in Materials, Protection Ratings, and Durability
Industrial-grade HDMI connectors differ significantly from their consumer-grade counterparts in materials, protection ratings, and durability. These distinctions are fundamental to ensuring reliable performance in demanding environments. The table below provides a clear, side-by-side comparison of their key characteristics.
| Feature Dimension | Industrial-Grade HDMI Connector | Consumer-Grade HDMI Connector |
|---|---|---|
| Housing Material | High-strength alloys (e.g., zinc, stainless steel) or industrial engineering plastics (PBT, PA with high impact and chemical resistance). | Standard plastics (ABS, PC), primarily for aesthetics and basic enclosure. |
| Contact Plating | Thick gold plating (typically 15-30 µinches or more) for superior conductivity, oxidation resistance, and long-term reliability. | Thin gold flash or tin plating, sufficient for stable indoor use but prone to oxidation over time. |
| Protection Rating (IP) | IP67/IP68/IP69K certified. Dust-tight and capable of withstanding temporary immersion or high-pressure water jets. | No formal IP rating, or very low (e.g., IP20). Not designed for moisture or dust exposure. |
| Shielding & EMI/RFI | Robust, 360° full-metal shell with dual-layer cable shielding (braid + foil). Effectively suppresses electromagnetic/radio frequency interference. | Basic or partial metal shielding. May suffice for home use but vulnerable to noise in electrically noisy environments. |
| Operating Temperature | Wide range, typically -40℃ to +85℃ or beyond, ensuring functionality in extreme cold or heat. | Commercial range, usually 0℃ to 70℃, suitable for controlled indoor climates. |
| Mating Cycle Life | ≥ 5,000 cycles (often 10,000+). Designed for frequent connection/disconnection in field service or testing. | ~500 to 1,500 cycles. Meets the needs of occasional home or office setup changes. |
| Mechanical Locking | Integrated threaded screw-locks, robust latches, or push-pull locking mechanisms to prevent disconnection from vibration or impact. | Friction-fit based on the standard HDMI shape. No positive lock, vulnerable to accidental pull-outs. |
| Environmental Sealing | Features rubber O-rings, gaskets, or potting at the cable entry and interface to seal out contaminants. | No internal sealing provisions. |
| Compliance & Testing | Subject to stringent testing per IEC 60529 (IP), vibration/shock (MIL-STD, IEC 60068), and salt spray standards. | Tested primarily for basic electrical functionality and HDMI protocol compliance. |
The Engineering Logic Behind the Differences
These specifications are not arbitrary; they are direct responses to the divergent demands of their operating environments.
- Conquering Hostile Environments: Industrial settings—factory floors, transportation, outdoor installations—present challenges like conductive dust, moisture, chemicals, constant vibration, and intense electromagnetic noise from heavy machinery.
The industrial connector’s IP-rated seal, corrosion-resistant materials, and full-metal shield with threaded locks form a comprehensive defense system. This ensures signal integrity where a consumer connector would likely fail due to corrosion, short-circuiting, or electromagnetic interference (EMI) causing signal dropouts. - Guaranteeing Long-Term Reliability and Mean Time Between Failures (MTBF): While a consumer connector might be plugged in semi-permanently, an industrial connector in a control panel or test rig may face daily mating cycles.
The industrial-grade product’s thick gold plating minimizes wear and maintains a low-contact resistance over thousands of cycles. Its reinforced housing and locking mechanism withstand physical stress, aiming for a decades-long service life and minimal downtime, which is critical in industrial and medical applications where failure costs are high. - Ensuring Signal Integrity Under Stress: In mission-critical applications (surgical imaging, flight simulators, broadcast), a flawless, stable image is non-negotiable. The industrial connector’s superior shielding preserves high-speed signal quality over longer cable runs in noisy environments, preventing pixel artifacts, sync loss, or data corruption that a consumer connector might introduce.
How to Choose the Right HDMI Connectors for Your Application
The choice hinges entirely on the application’s Environmental, Mechanical, and Electrical requirements.

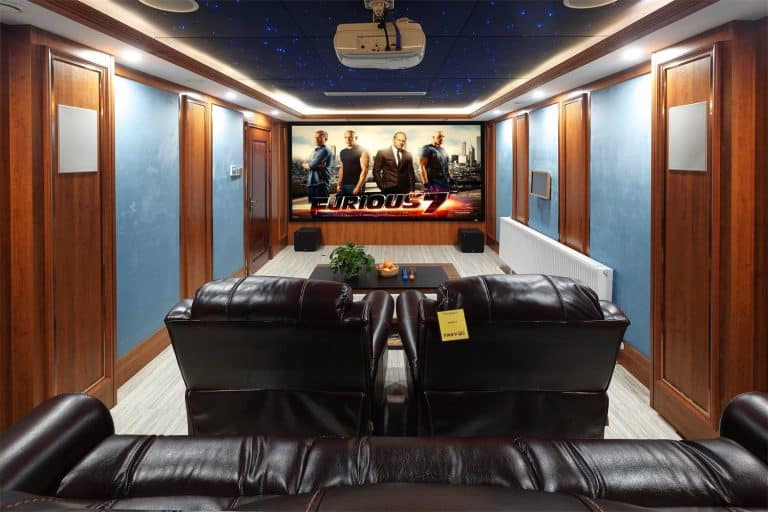

- Choose Consumer-Grade for: Stable, indoor, office, or home environments. Examples include connecting a Blu-ray player to a TV, a desktop computer to a monitor, or a gaming console.
- Mandate Industrial-Grade for: Any application exposed to potential stress. This includes:
- Industrial Automation & Control: PLC systems, HMI panels on factory floors.
- Medical & Dental Equipment: Patient monitors, surgical video systems.
- Broadcast & Pro AV: Outside broadcast vans, permanent installation rigging.
- Transportation: In-flight entertainment, train passenger info systems, automotive test rigs.
- Military & Aerospace: Ground support equipment, simulator interfaces.
- Outdoor & Public Spaces: Digital signage, surveillance system hubs.
A Critical Note on “Fake” Industrial Specs: Some connectors may have a metal shell but lack proper internal sealing or robust plating. Always request official certification reports (IP, MIL-STD) and detailed material specifications sheets from reputable suppliers like Amphenol, TE Connectivity, Neutrik, or Conec to validate true industrial-grade construction.
This expanded comparison should provide a solid foundation for making an informed and accurate selection. If you can share the specific operating environment and performance requirements for your project, more tailored advice can be provided.
