A Tactile Switches is a momentary-contact electronic component that rapidly closes or opens a circuit when minimal operating force (typically 1-5N) is applied. Upon pressure release, its internal metal dome automatically resets to break the connection13. Core characteristics include:
- Momentary Action: Conducts only while pressed (no latching) ;
- Miniaturization: Compact dimensions (standard: 4×4mm to 12×12mm) for high-density PCBs;
- Low-Power Operation: Rated for ≤50mA current applications.

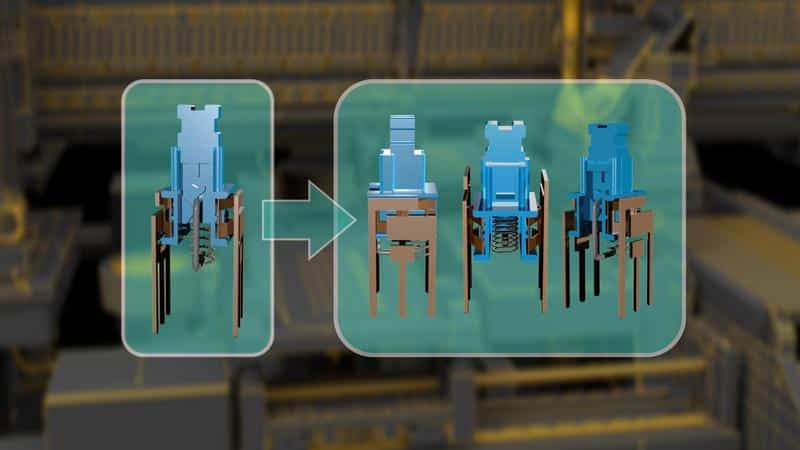

Key Structural Components:
plaintextCopy CodeTerminal Pins → Electrical contacts
Base → Structural support
Metal Dome → Conductive element (copper/silver alloy)
Button → Transmits external force
Cover → Dust/contaminant shield
The comparison between tactile switches and push button switches, maintaining technical accuracy and structural clarity:
I. Core Operational Principles
- Tactile Switch
- Momentary Operation: Circuit closes only while pressed (no latching function). Releases immediately when force is removed.
- Low Actuation Force: Requires 1-5N of pressure for millisecond-level response.
- Spring-Based Reset: Relies on metal dome elasticity for automatic reset (≈100k cycles lifespan).
- Push Button Switch
- State Latching: Maintains on/off state after actuation (e.g., power switches). Requires repress to toggle.
- High Actuation Force: Typically >10N with tactile feedback.
- Mechanical Stability: Physical latching mechanism sustains state (≈1M cycles lifespan).
II. Structural & Performance Comparison
| Feature | Tactile Switch | Push Button Switch |
|---|---|---|
| Core Mechanism | Metal dome (copper/silver alloy) | Mechanical latch + contact module |
| Contact Design | Pin-to-pin conduction | Vertical contact engagement |
| Current Rating | ≤50mA (low-power applications) | Ampere-level (high-power devices) |
| Sealing | Limited (vulnerable to contaminants) | Enhanced via IP-rated designs |
III. Application Scenarios
- Tactile Switch Domains
- High-frequency operations: Keyboards, remote controls, touchscreen feedback.
- Portable devices: Phone side keys, TWS earphone controls (compact size).
- Low-power systems: Wake-from-standby buttons.
- Push Button Switch Domains
- State-sustaining needs: Power switches, equipment start/stop controls.
- High-reliability environments: Industrial E-stop buttons, automotive panels.
- High-current loads: Motor drives, lighting systems.
IV. Selection Criteria
- Operational Frequency: Tactile switches for rapid triggering; push buttons for infrequent toggling.
- Environmental Factors: Avoid tactile switches in humid/dusty environments; prefer push buttons in high-vibration settings.
- Cost: Tactile switches lower cost ($0.01–0.03); push buttons higher (complex mechanisms).
Summary: Tactile switches excel in compact size, instant response, and cost efficiency for consumer electronics. Push buttons dominate industrial applications with state latching and rugged reliability.
