SMT vs Through-Hole Tactile Switch: Which Mounting Type Is Right for Your PCB?

You have finalized your PCB layout. The component footprints are placed. The routing is almost complete. Then you realize—the tactile switch you selected requires through-hole mounting, but your board is double-sided with components on both sides. The through-hole pins will interfere with the bottom-side placement. You are now looking at a respin.

This scenario plays out in engineering departments every day. The choice between an SMT tactile switch and a through-hole tactile switch is often treated as an afterthought—but it has profound implications for mechanical reliability, assembly cost, PCB real estate, and long-term field performance.

Tactile switches are among the most frequently actuated components on any PCB. Every press applies mechanical stress to the solder joint. Every vibration in the field tests the integrity of the mounting. Getting the mounting type wrong does not just affect manufacturability—it affects product lifetime.

This guide compares SMT and through-hole tactile switches across every dimension that matters: mechanical strength, assembly process, PCB space, cost, and application suitability. Whether you are designing a consumer wearable, an automotive HMI, or an industrial control panel, this is the decision framework you need.

For a broader comparison of tactile switches versus other switch types, see our guide: What’s The Difference Between Tactile Switches And Push Button Switches?

What Is a Tactile Switch?

Before comparing mounting types, it is worth understanding what a tactile switch is and how it works.

A tactile switch—often called a tact switch—is a momentary-contact electronic component that closes or opens a circuit when actuated. Press the actuator, the circuit closes. Release it, the circuit opens and the actuator returns to its resting position.

The “tactile” part comes from the physical feedback. Inside the switch, a precisely formed metal dome holds a curved shape under normal conditions. When you press the button, the plunger pushes down on the dome. The dome deflects inward at a defined pressure threshold, makes contact with the base contact point, and completes the circuit. The moment the dome snaps inward, you feel and hear the click—that is the tactile feedback. When you release pressure, the dome springs back to its original shape and the circuit opens.

This snap-action mechanism is what makes tactile switches preferred over conductive rubber alternatives in most precision applications. The feedback is crisp, consistent, and reliable.

Tactile switches are available in two primary mounting configurations: Surface Mount Technology (SMT) and Through-Hole Technology (THT) . The switch mechanism inside is essentially the same. The difference is entirely in how the component attaches to the PCB—and that difference changes everything about mechanical strength, assembly, and application fit.

For a deeper dive into how tactile switches work internally, read: How Does Tact Switch Work?

What Is an SMT Tactile Switch?

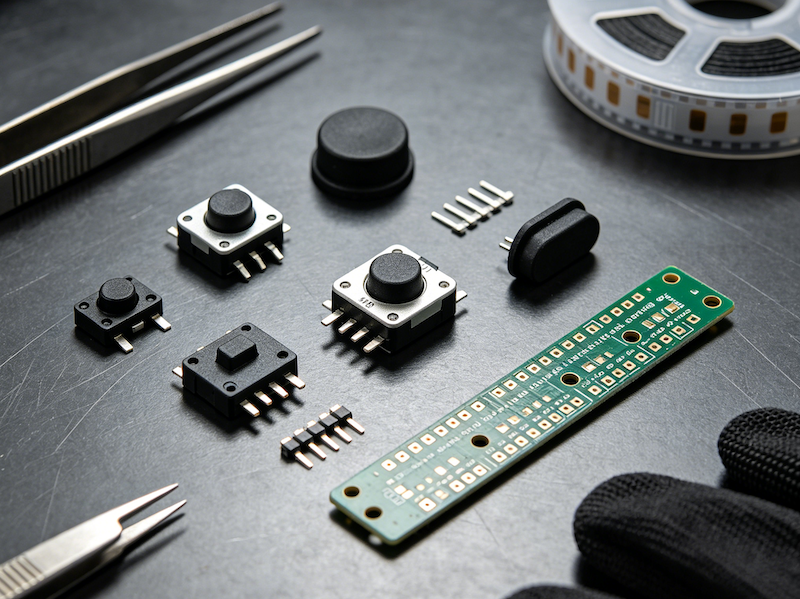

An SMT tactile switch (also called an SMD tactile switch) is a surface-mounted push-button switch placed directly onto the surface of a PCB. Instead of pins passing through drilled holes, the switch has flat terminals or gull-wing leads that are soldered to pads on the PCB surface.

SMT tactile switches are placed by automated pick-and-place machines and soldered using reflow soldering techniques during standard SMT assembly. This makes them highly compatible with modern, high-volume PCB manufacturing.

Key Characteristics:

• Footprint: Compact, typically ranging from 3.0mm × 6.0mm to 6.2mm × 6.2mm
• Height: Low profile, often 1.5mm to 5.0mm above the PCB
• Terminals: Flat pads or gull-wing leads that sit on the PCB surface
• Assembly: Pick-and-place + reflow soldering
• Pin count: Typically 2-pin or 4-pin configurations

Common SMT Tactile Switch Sizes at Vistar Electronics:

Advantages of SMT Tactile Switches:

• PCB space savings: SMT switches sit on the surface, requiring no holes through the board. This leaves the backside of the PCB free for other components.
• Automated assembly: Pick-and-place machines place SMT components rapidly and precisely, reducing assembly labor and increasing throughput.
• Double-sided PCB compatibility: Because SMT components do not protrude through the board, they are compatible with double-sided PCB designs.
• Lower profile: SMT switches can be significantly thinner than through-hole equivalents, which is critical for compact, portable devices.
• No holes means simpler PCB routing: Without through-hole vias, routing density can be higher and board fabrication simpler.

Disadvantages of SMT Tactile Switches:

• Lower mechanical strength: The solder joint is only on the surface pad, not wrapped through the board. Under high vibration or repeated heavy actuation, SMD solder joints are more susceptible to failure.
• Flux contamination risk: During reflow soldering, flux can migrate into the switch mechanism if the switch is not sealed.
• More difficult hand-soldering: SMD components require fine-point tweezers and a steady hand for manual soldering.
• Less forgiving of PCB flex: If the PCB bends, SMD solder joints can crack. Through-hole joints are more resilient.

Best Applications for SMT Tactile Switches:

SMT tactile switches are ideal for compact, high-volume consumer electronics where board space is at a premium and mechanical stress is moderate.

• Wearable devices and smartwatches
• Smartphones, tablets, and remote controls
• IoT modules and smart home devices
• Handheld instruments and medical keypads
• Any design where PCB real estate is the primary constraint

What Is a Through-Hole Tactile Switch?

A through-hole tactile switch (also called a THT tact switch or DIP tact switch) is a momentary push-button switch with metal leads that pass through drilled holes in the PCB and are soldered on the reverse side.

Through-hole switches have been the industry standard for decades. They are still the preferred choice in applications where mechanical robustness matters more than board space.

Key Characteristics:

• Footprint: Larger, typically 6.0mm × 6.0mm, 12.0mm × 12.0mm, or similar
• Height: Higher profile than SMT equivalents
• Terminals: Rigid metal leads, typically 0.5mm to 0.6mm in diameter, that extend through the board
• Assembly: Wave soldering or hand soldering
• Pin count: Typically 4-pin configurations for stability

Common Through-Hole Tactile Switch Sizes at Vistar Electronics:

Advantages of Through-Hole Tactile Switches:

• Superior mechanical strength: The solder joint wraps around the lead inside the plated through-hole, creating a strong mechanical connection on three surfaces rather than just the flat pad adhesion of an SMD solder joint. Through-hole switches can withstand significantly higher mechanical stress.
• Better vibration resistance: The through-hole anchor point makes THT switches the preferred choice in high-vibration environments like automotive and industrial applications.
• Easier hand-soldering and rework: Through-hole components are much easier for prototyping and field repairs. Reworking a through-hole switch is straightforward; reworking an SMD switch requires more skill and equipment.
• No flux contamination risk: Through-hole switches are wave-soldered from the backside, keeping the switch mechanism away from the solder process.
• Proven reliability: Through-hole technology has decades of field data and is a known quantity for reliability engineers.

Disadvantages of Through-Hole Tactile Switches:

• Larger PCB footprint: Through-hole switches occupy more board space.
• Holes required: Every through-hole switch requires drilled vias, which consume PCB space on all layers and complicate routing.
• Not compatible with double-sided placement: Pins protruding through the board interfere with components on the bottom side.
• Slower assembly: Wave soldering is less efficient than pick-and-place for high-volume production.
• Higher profile: Through-hole switches are taller, which may be a problem in low-profile designs.

Best Applications for Through-Hole Tactile Switches:

Through-hole tactile switches are the right choice when mechanical durability, vibration resistance, or easy field replacement is the primary requirement.

• Automotive controls and dashboard interfaces
• Industrial control panels and heavy equipment
• Guitar effects pedals and musical instruments
• Appliances and consumer products subjected to rough handling
• Prototyping and low-volume production where hand assembly is preferred
• Any application where the switch will face lateral force or physical abuse

SMT vs Through-Hole Tactile Switch: Direct Comparison

View our through-hole tactile switch options:

• 6×6 Momentary Tact Switch Snap-in Type | TS-1102H — DIP through-hole with snap-in mounting

For other through-hole switch types, explore our full switch portfolio: Reliable Electromechanical Switches – Full Series for PCB & Control Panels

Key Specifications to Evaluate

Regardless of mounting type, these specifications determine whether a tactile switch will perform in your application.

Operating Force (Actuation Force)

This is the amount of pressure required to actuate the switch, measured in grams-force (gf) or Newtons (N).

• Light force (160–180gf): Suitable for consumer devices where user comfort is paramount. Longer operating life typically.
• Medium force (260gf): Provides more positive tactile feedback and reduces accidental actuations.
• Heavy force (340–450gf+): Used in industrial and automotive applications where accidental presses must be prevented.

Travel (Stroke)

The distance the actuator moves before the switch actuates, typically 0.15mm to 0.45mm.

• Short travel (0.15–0.25mm): Crisp, quick actuation. Preferred in low-profile and high-density designs.
• Longer travel (0.35–0.45mm): Deeper, more pronounced click feel.

Operating Life

The number of actuations the switch can withstand before failure, typically 50,000 to 500,000 cycles.

• 50,000–100,000 cycles: Standard for most consumer applications
• 100,000–300,000 cycles: Extended life for higher-use applications
• 500,000+ cycles: High-durability for industrial and automotive

Contact Rating

Most tactile switches are rated for 50mA at 12VDC. Always verify that the switch’s electrical ratings meet or exceed your circuit requirements.

Contact Resistance

Typical contact resistance is ≤100mΩ initial. Low contact resistance ensures signal integrity and minimizes voltage drop.

Insulation Resistance

≥100MΩ at 100VDC is standard. High insulation resistance prevents leakage currents.

Dielectric Strength

250VAC for 1 minute is typical. This ensures the switch can withstand transient voltage spikes.

Operating Temperature

• Consumer grade: -25°C to +70°C
• Industrial/Automotive grade: -40°C to +85°C

IP Rating (Ingress Protection)

For applications exposed to moisture or dust, look for sealed switches with IP ratings. IP67 provides protection against dust and temporary water immersion.

How to Choose: A Decision Framework

When deciding between SMT and through-hole tactile switches, work through these questions in order.

Step 1: What is the mechanical environment?

• High vibration, frequent heavy actuation, or physical abuse? Choose through-hole.
• Moderate use, controlled environment? SMT is acceptable.

Step 2: What are your PCB space constraints?

• Board space is extremely limited? Choose SMT.
• Space is not a primary concern? Through-hole is viable.

Step 3: Is this a double-sided PCB?

• Components on both sides? Choose SMT. Through-hole pins will interfere.
• Single-sided or components only on top? Both are options.

Step 4: What is your production volume?

• High-volume automated production? SMT is faster and more cost-effective.
• Low-volume, prototyping, or hand assembly? Through-hole is easier to work with.

Step 5: Will the switch need field repair?

• Field service and replacement likely? Through-hole is easier to rework.
• No field service planned? SMT is fine.

Step 6: What is the required operating life?

• 100,000+ cycles? Both SMT and through-hole can achieve this.
• Check the specific datasheet—operating life varies by series and force option.

Common Design Mistakes to Avoid

Mistake 1: Choosing SMT for high-vibration applications

An SMT switch on a vibrating PCB will experience stress at the solder joint. Over time, the joint can crack. Through-hole switches are the safer choice for automotive, industrial, and any application with significant vibration.

Mistake 2: Ignoring the unmated seal requirement

Not all sealed switches maintain their IP rating when unmated. If your application requires protection even when the button is not pressed, verify the datasheet carefully.

Mistake 3: Overlooking flux contamination

During reflow soldering, flux can wick into the switch mechanism through the actuator gap. For SMT switches, specify sealed variants or ensure the reflow profile does not allow flux ingress.

Mistake 4: Specifying the wrong operating force

Too light, and the switch actuates accidentally. Too heavy, and the user experience suffers. Test the force with actual users before finalizing the specification.

Mistake 5: Forgetting the 4-pin stability advantage

Four-pin configurations provide electrical redundancy and, more importantly, physical stability with four anchoring points rather than two. For any application involving physical handling, 4-pin is the more reliable choice.

For industry-standard soldering requirements, refer to IPC J-STD-001 — the globally recognized standard for soldered electrical and electronic assemblies.

FAQ

What is the difference between SMT and through-hole tactile switches?

The difference is in the mounting method. SMT switches sit on the PCB surface and are soldered to pads. Through-hole switches have leads that pass through drilled holes and are soldered on the back of the board. The switch mechanism inside is the same—the difference is mechanical strength, PCB space, and assembly process.

Which is better: SMT or through-hole tactile switch?

Neither is universally better. SMT is better for compact, high-volume consumer devices. Through-hole is better for high-vibration, heavy-use applications where mechanical strength matters. The choice depends on your application requirements.

Can I hand-solder an SMT tactile switch?

Yes, but it requires fine-point tweezers and a steady hand. Through-hole switches are much easier for hand-soldering.

Are SMT tactile switches less durable than through-hole?

Not necessarily—operating life (number of actuations) can be similar for both types. The difference is mechanical robustness: through-hole switches have stronger solder joints and better vibration resistance.

What operating force should I choose?

160–180gf for light, comfortable actuation. 260gf for more positive feedback and reduced accidental presses. 340–450gf+ for industrial applications where accidental actuation must be prevented.

What is the typical operating life of a tactile switch?

50,000 to 100,000 cycles for standard switches, up to 500,000 cycles for high-durability variants.

Final Thoughts

The choice between an SMT tactile switch and a through-hole tactile switch is not a question of which is “better.” It is a question of which is right for your specific application.

SMT switches excel where board space is at a premium, production volume is high, and mechanical stress is moderate. Through-hole switches excel where mechanical strength, vibration resistance, and ease of rework are the priorities.

At Vistar Electronics, we offer both mounting types across a range of sizes, operating forces, and operating lives. Our tactile switch portfolio includes:

• SMT tactile switches: TS-1181-WH (3.0 × 6.0mm, 2-pin), TS-1158 (6.2 × 6.2mm, 4-pin SMD), TS-1187N (5.2 × 5.2mm, 4-pin SMD)
• Through-hole tactile switches: TS-1103GL (12.0 × 12.0mm, LED illuminated), TS-1102W (6.0 × 6.0mm, waterproof)

All switches are rated 50mA at 12VDC, with operating force options from 160gf to 260gf, travel from 0.15mm to 0.25mm, and operating life up to 100,000 cycles. RoHS compliant and available in tape-and-reel packaging for automated assembly.

Whether you are designing a wearable device, an automotive HMI, or an industrial control panel, we have a tactile switch that fits your requirements. Contact our engineering team for technical specifications, samples, or application support.

For technical specifications, samples, or application support, contact the Vistar Electronics engineering team.
