D-Sub Connector Guide: Types, Pinouts and Selection Tips for Engineers

You open the panel on a CNC machine that has been running reliably since 2008. The DB25 connector linking the controller to the servo drive has finally given out—intermittent signals, random faults, production downtime. Your local distributor quotes a replacement, but the pin configuration does not match. Three days later, you are still digging through datasheets trying to confirm the correct gender, shell size, and pin assignment.

This scenario repeats itself across factories, labs, and repair benches. D Sub connector has been in continuous use for over 70 years, yet selecting the right variant remains a recurring headache for engineers and procurement teams alike. The problem is rarely a lack of options—it is the overwhelming number of them, combined with incomplete documentation and legacy system quirks.

This guide breaks down D-Sub connector types, pinouts, application requirements, and selection criteria. No marketing fluff. Just the technical detail you need to specify the correct part and avoid costly mismatches.

What Is a D-Sub Connector?

A D-Sub connector—short for D-subminiature—is an electrical connector defined by its characteristic D-shaped metal shield. That shield serves two purposes: it provides mechanical polarization, preventing incorrect orientation during mating, and it offers a degree of electromagnetic shielding.

The series was introduced by ITT Cannon in 1952. The original design goal was to create a compact, reliable multi-pin connector for military and aerospace applications. Over the decades, D-Sub connectors migrated into computing, industrial automation, telecommunications, and medical equipment.

Key characteristics that define every D-Sub connector:

• Shell size and pin count: The D-shaped shell comes in five standard sizes (DA, DB, DC, DD, DE), each corresponding to specific pin counts.
• Pin density: Standard density places pins at roughly 2.74 mm spacing. High-density variants pack more pins into the same shell size.
• Contact arrangement: Male connectors carry pins; female connectors carry sockets.
• Termination method: Solder cup, crimp, PCB through-hole, PCB surface-mount, and insulation displacement (IDC) options exist.
• Shell material: Options include steel with tin or nickel plating, stainless steel, and die-cast zinc alloys.

History of D-Sub Connectors: Why a 70-Year-Old Design Still Matters

The longevity of D-Sub connectors tells you something important about their design. Most connectors introduced in the 1950s are long obsolete. D-Subs survived because the original engineering was sound, and the installed base became too large to displace quickly.

The DB25 connector became the standard for parallel printer ports on early personal computers. The DE9 (commonly mislabeled as DB9) became the standard for RS-232 serial communication. The DA15 became the foundation for VGA video output.

When USB and HDMI began replacing D-Subs in consumer electronics during the 2000s, many predicted the format would vanish. It did not. Industrial equipment operates on decades-long life cycles. Factories still run PLCs and CNC controllers designed in the 1990s. Medical devices undergo such lengthy certification processes that redesigning a proven connector interface is often impractical.

For procurement professionals, this means D-Sub connectors will remain a significant sourcing category for at least another 15 to 20 years.

Common D-Sub Connector Types: A Reference Table

The naming conventions for D-Sub connectors are a persistent source of confusion. Many engineers use “DB9” as a catch-all term, but this is technically incorrect. The letter refers to shell size, not pin count. The following table clarifies the standard designations.

The naming error that refuses to die: The DE9 connector has a size “E” shell. It is not a DB9. However, decades of colloquial usage have cemented “DB9” in catalogs, datasheets, and search queries. For practical purposes, you need to recognize both terms and know that they refer to the same 9-pin D-subminiature connector.

High-density variants pack more pins by reducing contact spacing. A standard DB25 shell (size B) houses 25 contacts at 2.74 mm pitch. The high-density version fits 44 contacts at 2.29 mm pitch in the same shell. Before ordering, confirm whether your application requires standard or high-density pin counts—the connectors are not interchangeable.

DB9 vs DB15 vs DB25: How to Choose

These three variants cover the vast majority of industrial and commercial D-Sub applications. Here is what distinguishes each one.

DB9 (DE9)

Pin count: 9 positions, standard density.
Primary protocol: RS-232 serial communication.
Pin layout: Typically arranged in a 5-4 pattern (five pins top row, four pins bottom).

DB9 connectors handle asynchronous serial data. They appear on PLC programming ports, Modbus RTU networks, CAN bus interfaces, and older industrial sensors. The pin assignments vary by protocol, but the RS-232 standard specifies:

Critical selection note: Not all DB9 cables are wired identically. Some devices use only three pins (2, 3, and 5). Others require full hardware handshaking using RTS/CTS and DTR/DSR. Always verify your device pinout before ordering cables or breakout boards.

DB15 (DA15)

Pin count: 15 positions, standard density, arranged in a 8-7 pattern.
Primary use cases: Industrial equipment I/O, game/MIDI ports (legacy), AUI network transceivers.

DB15 connectors are less standardized than DB9. While the physical shell is uniform, pin assignments vary widely by manufacturer and application. One CNC controller might use DB15 for encoder feedback; another might assign it to limit switch inputs. You cannot assume a DB15 cable from one vendor will work with a different vendor’s equipment.

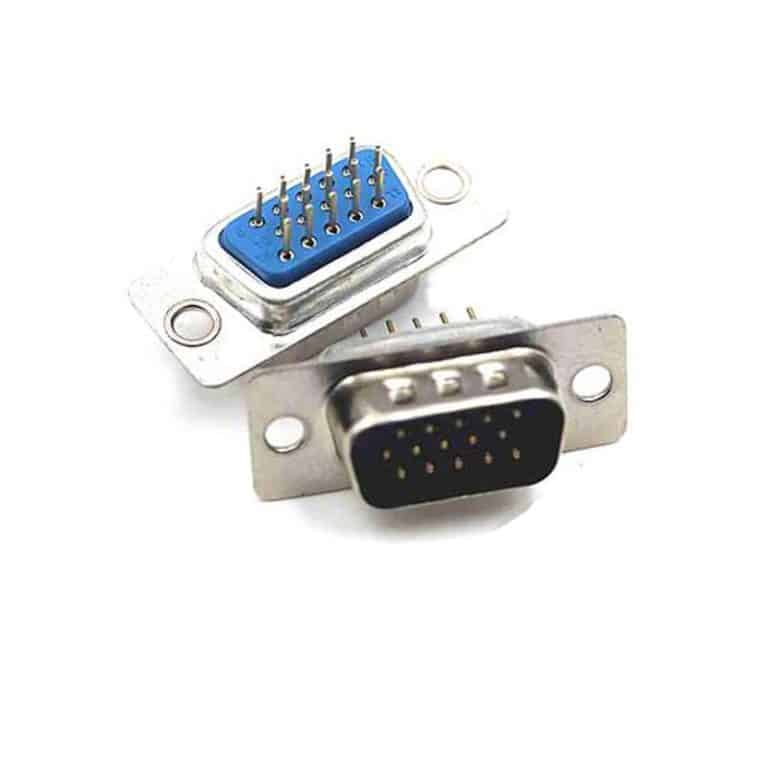

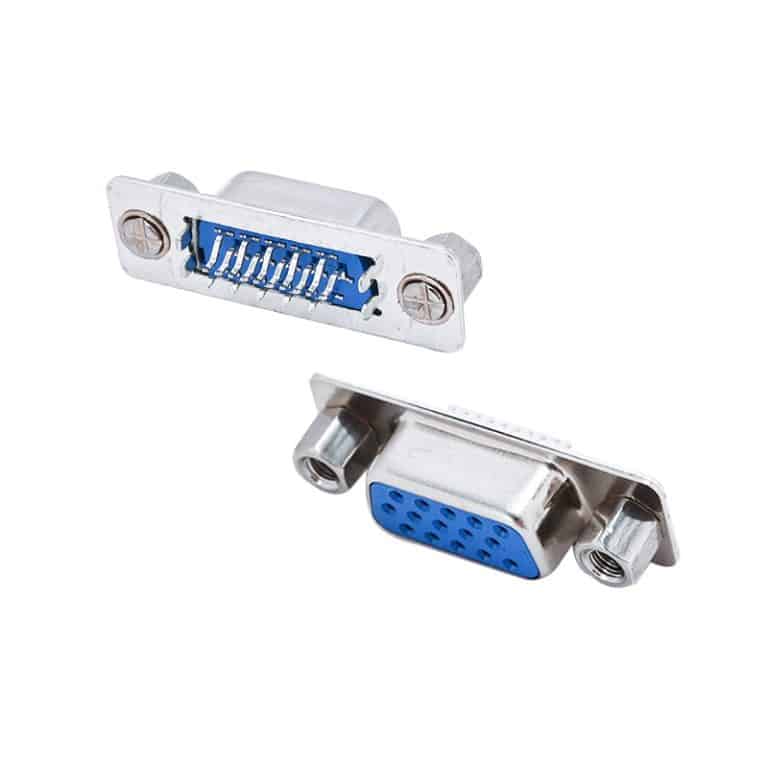

The VGA distinction: VGA video uses a high-density 15-pin connector in a size E shell—properly designated HD15 or DE15. This is physically smaller than a DB15 and is not mechanically compatible. Ordering a “DB15” expecting a VGA connector will result in the wrong part. Check shell dimensions carefully.

DB25 (DB25)

Pin count: 25 positions, standard density, arranged in a 13-12 pattern.
Primary use cases: Parallel data transmission, multi-channel audio (TASCAM standard), legacy printer interfaces, PLC expansion modules.

DB25 connectors provide enough pins for 8-bit parallel data with ground returns, making them suitable for older instrumentation buses. The TASCAM audio standard uses DB25 for 8-channel balanced analog or AES/EBU digital audio—a configuration still common in professional recording studios.

DB25 parallel port pinout (IEEE 1284, legacy):

Parallel interface note: New designs almost never specify DB25 for parallel data. USB and Ethernet have replaced these interfaces. However, replacement and maintenance procurement remains substantial in industrial environments.

D-Sub Connector Pinout Explained: What You Actually Need to Know

Datasheets often present pinout diagrams, but they rarely explain the logic behind pin numbering. Getting this wrong means reversed signals, non-functional equipment, or damaged hardware.

Pin numbering convention: Looking at the mating face of the male connector (the side with the pins), pin 1 starts at the top-left corner of the wider row. Numbers increase sequentially across each row, left to right. The female connector uses the mirror image so that pin 1 on the male mates with pin 1 on the female.

Male vs. female orientation matters for numbering: If you look at the solder side of a female connector, the numbering appears reversed from the mating face. This trips up technicians who wire connectors from the back without double-checking the datasheet.

Common pinout mistakes:

• Assuming all DB9 connectors follow the RS-232 standard. They do not. Industrial sensors and PLCs often use proprietary assignments.
• Reversing TXD and RXD. Transmit on one end connects to Receive on the other. A straight-through DB9 cable connects pin 2 to pin 2, which is incorrect for RS-232. The correct wiring for two DTE devices is a null modem configuration: pin 2 to pin 3, pin 3 to pin 2, and pin 5 to pin 5.
• Ignoring ground pins. An unterminated signal ground causes intermittent communication errors that are maddening to diagnose. Always verify pin 5 continuity.

For detailed D-Sub pin assignments across different industry standards, refer to protocol-specific documentation before wiring.

D-Sub Connector Applications: Where They Still Dominate

Consumer electronics abandoned D-Sub connectors years ago. Industrial, medical, military, and professional audio sectors remain heavily dependent on them.

Industrial Automation

PLCs, CNC controllers, servo drives, and factory data collection terminals use D-Sub connectors extensively. The DB9 and DB25 formats carry RS-232, RS-422, and RS-485 serial links across factory floors. High-density variants appear on multi-axis motion controllers where pin count is at a premium.

Industrial environment consideration: Factory environments subject connectors to vibration, dust, oil mist, and temperature extremes. Standard commercial D-Sub connectors will fail prematurely under these conditions. For industrial applications, specify connectors with machined contacts (not stamped), metal backshells with strain relief, and at least an IP20 rating.

For a deeper dive into cabling standards and specific application cases, see our guide to D-Sub connector applications in industrial automation.

Medical Equipment

Diagnostic imaging systems, patient monitors, and laboratory analyzers often run on platforms certified 10 to 20 years ago. Redesigning the connector interface requires recertification—a process that can cost hundreds of thousands of dollars and take years. D-Sub connectors persist in these systems by regulatory inertia as much as engineering merit.

Medical-grade D-Sub connectors typically require:

• Sterilization compatibility (autoclave or chemical resistance)
• Higher mating cycle ratings (10,000+ cycles)
• Full material traceability for biocompatibility documentation

Military and Aerospace

MIL-DTL-24308 governs D-Sub connectors for defense applications. These connectors feature cadmium or nickel-plated shells, gold-plated machined contacts, and environmental sealing. They are specified for avionics, ground support equipment, and shipboard systems where connector failure is not an option.

Procurement note: MIL-spec D-Sub connectors carry significant cost premiums and long lead times. Counterfeit components are a known risk in this supply chain. Source only from authorized distributors or qualified manufacturers with documented quality systems.

Professional Audio

The TASCAM DB25 pinout standard remains widespread in recording studios for multi-channel balanced audio. One DB25 cable carries eight analog channels or eight channels of AES/EBU digital audio. Broadcast facilities use DB25 connections on routing switchers and mixing consoles.

Network Equipment

Network engineers encounter DB9 and RJ45 console ports on managed switches, routers, and firewalls. The Cisco console cable—a DB9-to-RJ45 rolled cable—is a staple of every network administrator’s toolkit.

How to Choose a D-Sub Connector: Decision Criteria

Ordering the wrong D-Sub connector is easy. Specifying the correct one requires answering six questions in sequence.

1. Pin Count and Shell Size

Match your device’s pin count and shell size exactly. A 9-pin connector requires a DE shell. A 25-pin connector requires a DB shell. High-density versions of the same pin count use different shells. Verify before ordering.

2. Gender

Male connectors carry exposed pins. Female connectors carry recessed sockets. Equipment chassis typically use female connectors on outputs to prevent accidental short circuits. Cable assemblies use the corresponding male connector. Confirm the gender your panel or cable requires.

3. Termination Method

• Solder cup: Standard for cable assembly. Requires skilled labor but produces reliable connections.
• Crimp: Faster assembly, requires specific crimp tools and contacts. Better for production volumes.
• PCB through-hole: Common for board-mounted connectors. Mechanically robust, but the through-hole process adds cost.
• PCB surface-mount: Used for high-density board designs. Less mechanically robust than through-hole. Not recommended for connectors subject to frequent mating cycles.
• IDC (Insulation Displacement Connector): Ribbon cable termination. Fast assembly, but limited to specific wire gauges.

4. Mounting Style

Board-mounted connectors are available in:

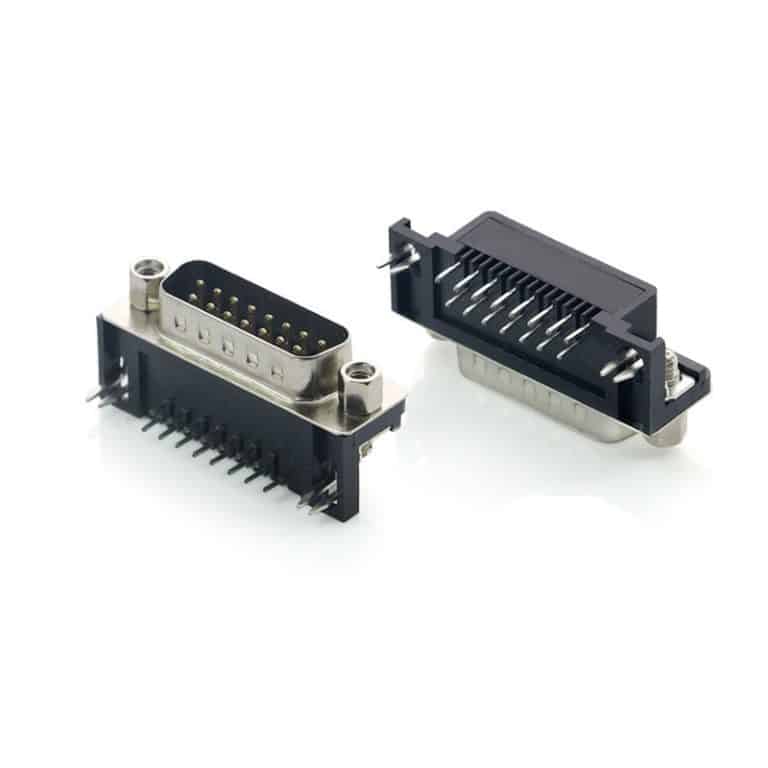

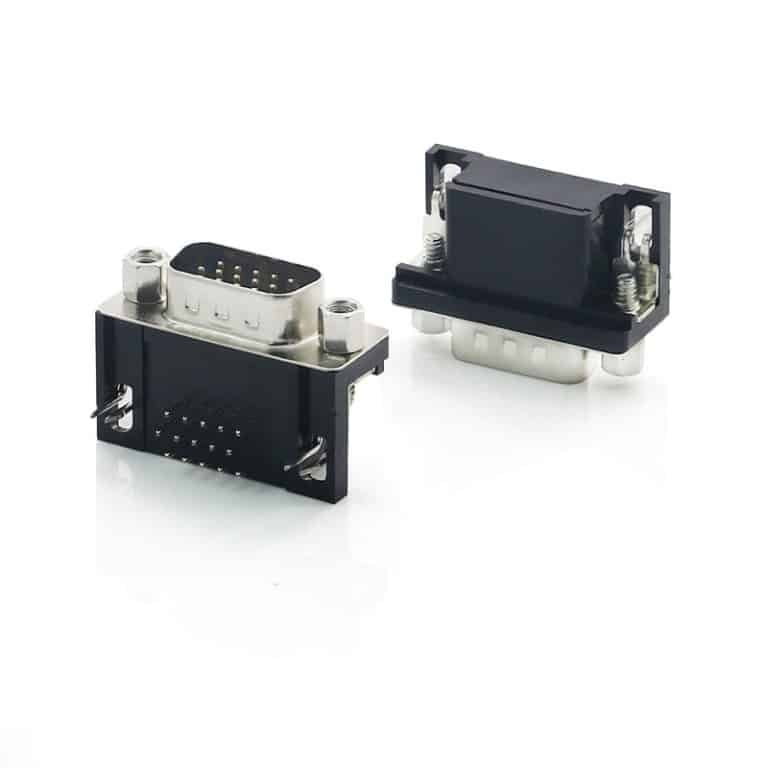

• Right-angle: Connector body sits parallel to the PCB. Saves vertical space.

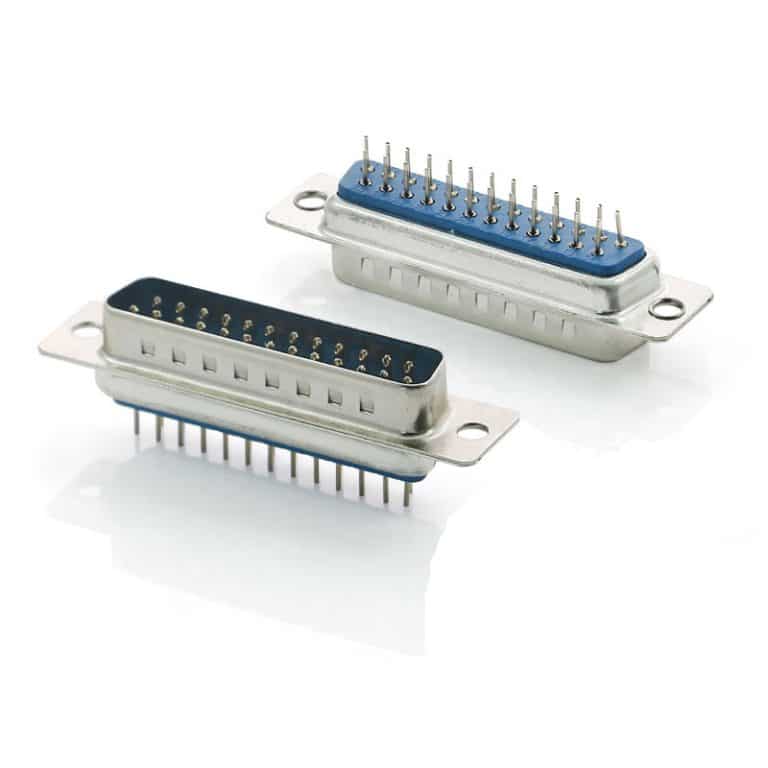

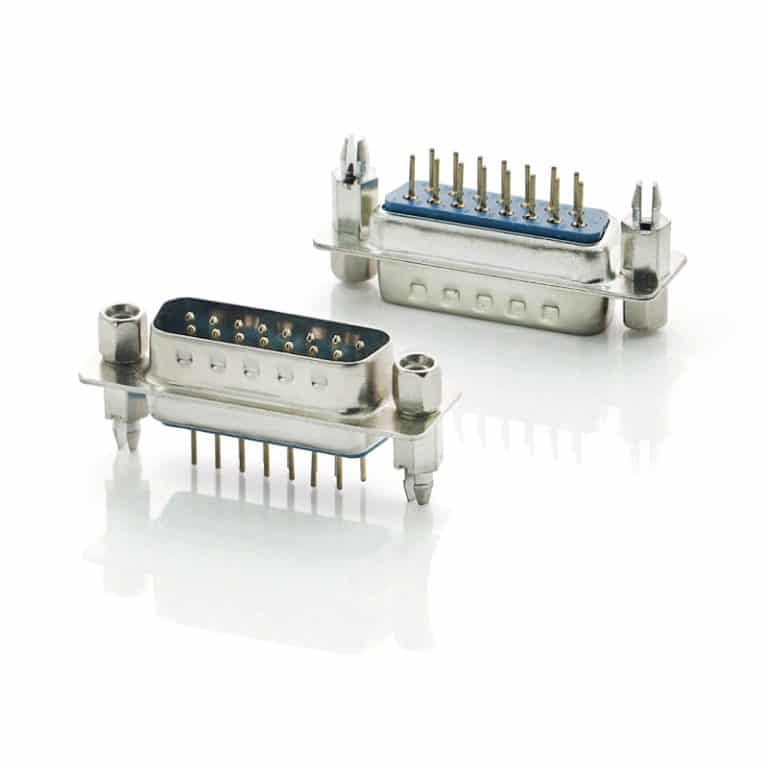

• Vertical/Straight: Connector body sits perpendicular to the PCB. Better for front-panel mounting.
• Cable mount: Connector attaches to a cable via solder or crimp termination.

5. Shielding and Grounding

For environments with electromagnetic interference (EMI)—motor drives, welding equipment, radio transmitters—select connectors with:

• Metalized or metal shells (steel with nickel plating is the standard option)
• Full 360-degree shield termination
• Ground indents or dimples on the shell for positive ground contact

Plastic-shell D-Sub connectors are available and cheaper, but they provide no EMI protection. Reserve them for low-noise, cost-sensitive applications.

6. Environmental Rating

• Standard commercial: Indoor use, no sealing, 50-500 mating cycles.
• Industrial: IP20 minimum, machined contacts, metal strain relief, 500-5,000 mating cycles.
• Sealed/Waterproof: IP67 or IP68, O-ring or gasket sealed, for outdoor or washdown environments. Sealed D-Sub connectors with molded bodies and gasketed flanges are available for harsh conditions.

Common D-Sub Connector Failures and How to Prevent Them

D-Sub connectors fail in predictable ways. Understanding the failure modes helps you specify correctly and prevent field returns.

Bent or Broken Pins

Male pins are vulnerable during mating. A slight angular misalignment can bend pin 1 or pin 9 before the shell guides correct the orientation. Bent pins cause intermittent contact or dead shorts.

Prevention: Specify connectors with closed-entry female contacts that prevent oversized pins or misaligned probes from damaging the socket. Use guide pins or jack screws to ensure straight mating.

Solder Joint Fatigue

Cable-mount solder cup connectors concentrate mechanical stress at the solder joint. Repeated flexing or vibration work-hardens and cracks the joint.

Prevention: Always use a backshell with strain relief or cable clamp. The backshell should grip the cable jacket, not the individual wires. Conformal coating on PCB solder joints adds vibration resistance.

Contact Fretting Corrosion

In environments with thermal cycling or vibration, mated contacts undergo micro-motion that wears through the gold plating. The exposed base metal oxidizes, increasing contact resistance and causing intermittent signals.

Prevention: Specify connectors with thick gold plating (30 μin minimum for industrial applications, 50 μin for high-reliability). Tin-plated contacts are more prone to fretting and should be limited to low-cycle, low-vibration applications.

Ground Loop Noise

Shielded cables terminated at both ends create ground loops when the connected equipment has different ground potentials. The resulting current flow on the shield induces noise in the signal lines.

Prevention: For long cable runs in industrial settings, consider lifting the shield connection at one end (typically the receiving end) via a switch or jumper. Alternatively, use differential signaling (RS-422/RS-485) with twisted-pair wiring to reject common-mode noise.

Connector Backshell Loosening

The screws or thumbscrews that secure the connector to the mating panel vibrate loose over time. The connector partially unmates, and signals become intermittent.

Prevention: Use connectors with 4-40 UNC jack screws and consider thread-locking compound for permanent installations. For high-vibration environments, locking wire or self-locking fasteners add security.

Frequently Asked Questions

What is a D-Sub connector?

A D-subminiature connector is a multi-pin electrical connector with a D-shaped metal shield shell used for mechanical polarization and EMI protection. It was introduced in 1952 and remains widely used in industrial, medical, military, and professional audio applications.

What does DB stand for in DB9 and DB25?

The “D” stands for D-subminiature. The second letter designates shell size: A through E. DB25 uses a size B shell. The commonly called “DB9” actually uses a size E shell and is properly designated DE9.

What is the difference between DB9 and DB25?

DB9 has 9 pins in a DE-size shell and is primarily used for RS-232 serial communication. DB25 has 25 pins in a DB-size shell and is used for parallel data, multi-channel audio, and legacy printer interfaces. The shell size and pin count differ.

Are D-Sub connectors still used today?

Yes, extensively. Industrial automation, medical equipment, military systems, professional audio, and networking equipment all continue to use D-Sub connectors. The massive installed base of equipment with D-Sub interfaces ensures ongoing demand for decades.

What industries use D-Sub connectors?

Industrial automation (PLC, CNC, Modbus), medical devices (diagnostic and monitoring equipment), military/aerospace (MIL-DTL-24308), professional audio (TASCAM DB25 standard), and telecommunications (router/switch console ports) are the primary sectors.

Can D-Sub connectors support high-speed data?

Standard D-Sub connectors are not designed for high-speed data. Practical limits are around 1-2 Mbps for RS-232/RS-485 serial communication. For higher data rates, USB, Ethernet, or dedicated high-speed connectors are more appropriate.

Are D-Sub connectors waterproof?

Standard D-Sub connectors are rated IP20. Sealed variants with O-ring gaskets, molded bodies, and gasketed flanges can achieve IP67 or IP68 ratings. These are available for outdoor, marine, and washdown applications.

How many mating cycles can a D-Sub connector withstand?

Standard commercial D-Sub connectors are rated for 50 to 500 mating cycles. Industrial-grade connectors with machined contacts achieve 5,000 to 10,000 cycles. MIL-spec connectors can exceed 10,000 cycles with proper gold plating.

What is the difference between standard density and high density?

Standard density D-Sub connectors use a 2.74 mm contact pitch. High-density variants use a 2.29 mm pitch, allowing more pins in the same shell size. They are mechanically incompatible—a standard density plug will not mate with a high-density receptacle.

Why do D-Sub connectors have a D shape?

The D-shaped shell ensures proper orientation during mating. The connector can only be inserted one way, preventing pin damage from incorrect alignment. The metal shell also provides EMI shielding.

Why Source D-Sub Connectors from Vistar Electronics?

Engineers and procurement teams specify D-Sub connectors from Vistar Electronics because the product line addresses the specific pain points outlined throughout this guide.

The manufacturing portfolio covers DB9, DB15, and DB25 connectors in vertical, right-angle, PCB-mount, and cable-mount configurations. Both standard and high-density variants are available. Contact plating options include gold flash, 15 μin, and 30 μin gold for applications requiring extended cycle life.

All D-Sub connectors comply with RoHS and REACH requirements. Custom pin assignments, special plating, and private labeling are available through OEM and ODM support channels. Engineering samples are provided at no charge for qualified projects—allowing you to verify fit, form, and function before committing to a production order.

For engineers maintaining legacy equipment or designing industrial systems with D-Sub interfaces, having a responsive supplier who understands the technical details matters more than a catalog full of options. You can browse the full D-Sub connector product range or contact the engineering team for a specification review.

This guide reflects current industry practice as of 2026. Pin assignments and standards referenced may vary by equipment manufacturer. Always consult your device documentation for final pinout verification.
