Switch Contact Material Selection: 7 Proven Tips for Reliable Design

Switch contact material selection is easy to underestimate. A switch may cost only a few cents, yet the wrong contact system can create intermittent signals, rising contact resistance, oxidation, arcing, or premature electrical failure long after the PCB has passed production testing.

For engineers and procurement teams, the important question is not simply whether a switch uses gold, silver, copper, or phosphor bronze. The real question is whether the contact base material, plating system, electrical load, switching frequency, environment, and mechanical construction are properly matched.

A gold-plated contact that performs extremely well in a 5 V logic circuit may be the wrong choice for a multi-ampere power load. Conversely, a silver-based contact designed for higher current may perform poorly when asked to switch a very small dry-circuit signal.

This guide explains how to make that decision systematically, with practical comparisons for PCB switches, slide switches, pushbutton switches, tactile switches, detector switches, and other electromechanical controls.

Switch Contact Material Selection at a Glance

• Why Contact Material Matters
• Common Switch Contact Materials
• Gold vs Silver Switch Contacts
• Match Contact Material to Electrical Load
• Environmental and Mechanical Factors
• Common Selection Mistakes
• Technical Comparison
• Practical Procurement Strategy
• Frequently Asked Questions

Why Contact Material Matters in Switch Design

The contact is the electrical interface that actually opens and closes the circuit. Its job is deceptively demanding: it must maintain a low-resistance electrical path while repeatedly experiencing mechanical movement, surface contamination, oxidation, vibration and, in some applications, electrical arcing.

Two switches with the same footprint and pin count can therefore behave very differently in the field if their contact systems are different.

For a design engineer, contact material affects at least five important characteristics:

• Initial contact resistance
• Resistance stability over life
• Resistance to oxidation and corrosion
• Ability to withstand electrical arcing
• Suitability for low-current or high-current switching

For example, Vistar’s current switch portfolio distinguishes signal-grade and power-grade constructions. Its slide switch range specifies gold-plated phosphor bronze for low-current signal applications and silver-plated brass or copper-alloy contacts for higher-current switching.

That distinction is more useful than simply asking a supplier whether a switch is “gold plated.”

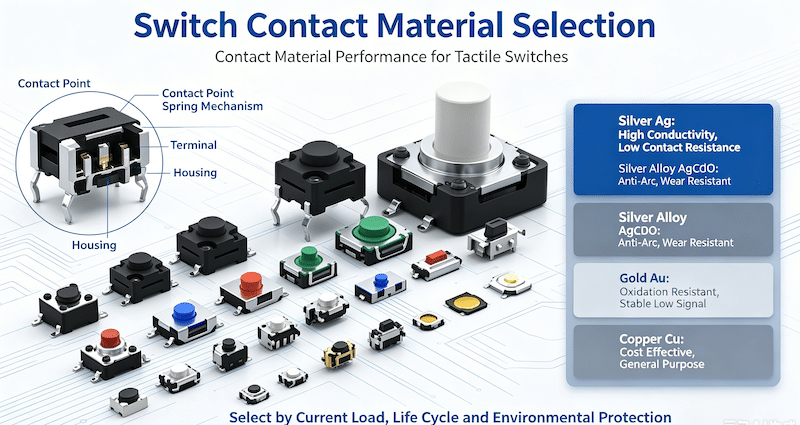

Common Switch Contact Materials and What They Actually Do

Contact systems normally contain more than one material. The spring/contact carrier may use a copper alloy such as phosphor bronze, while the actual mating surface receives a plating or contact alloy selected for the electrical load.

1. Gold-Plated Contacts

Gold is widely used when stable low-level electrical performance is more important than high-current switching capability.

Its major advantage is chemical stability. Gold is highly resistant to oxidation and corrosion, which makes it particularly useful when a switch must reliably detect a small electrical signal after long periods of inactivity.

Typical applications include:

• Digital control inputs
• Low-voltage logic circuits
• Communication equipment
• Instrumentation
• Medical electronics
• Consumer electronics interfaces

The important qualification is that gold plating does not automatically make a switch suitable for high current. The plating thickness, underlying alloy, contact geometry and switch architecture all contribute to the final rating.

2. Silver and Silver-Alloy Contacts

Silver has excellent electrical conductivity and is commonly used for switching higher electrical loads.

Silver-based contacts are particularly useful when the switching event involves enough current to help disrupt surface films. They are therefore common in power-oriented switches.

However, silver surfaces can tarnish under certain environmental conditions. That does not mean silver contacts are unreliable; it means their electrical application must be matched to the contact system and expected operating conditions.

Vistar’s power-grade slide switches use silver-plated brass or copper-alloy contact systems for applications rated up to several amperes.

3. Phosphor Bronze as the Contact Carrier

Phosphor bronze is frequently used as the underlying spring/contact material because it combines electrical conductivity with good spring properties.

For miniature switches, this mechanical behavior is important. The contact must maintain adequate force against the mating surface without permanently deforming after thousands of operations.

In practice, engineers should distinguish between base contact material and contact surface plating. A specification such as “phosphor bronze, gold plated” describes two different functions: the bronze provides mechanical and electrical structure, while the gold provides the exposed contact surface.

4. Brass and Copper Alloys

Brass and copper alloys are also widely used for switch terminals and power-oriented contact systems.

The final choice depends on conductivity, spring characteristics, stamping performance, plating compatibility and the required mechanical geometry.

For procurement, asking only for “copper contacts” is therefore insufficient. The supplier should identify the alloy, plating system and applicable electrical rating.

Gold vs Silver Switch Contacts: Which Is Better?

The question “gold or silver?” is often framed as though one material is universally superior. It is not.

The better material depends primarily on the electrical load and operating environment.

For a microcontroller input carrying only a few milliamps, the stability of a gold-plated interface can be more important than the switch’s maximum current rating.

For a power-selection switch carrying several amperes, a properly designed silver-based contact may be the more appropriate solution.

This is why gold vs silver switch contacts should always be evaluated against the actual load rather than treated as a simple quality ranking.

Switch Contact Material for Low Current vs High Current

Electrical load is one of the most important inputs in contact selection.

Low-Current Signal Switching

Low-current circuits create a special challenge because there may not be enough electrical energy during switching to break through contamination or surface films.

This is commonly described as a dry-circuit or low-level switching condition.

Examples include:

• Microcontroller inputs
• Sensor signals
• Logic-level mode selection
• Communication control lines
• Low-voltage instrumentation

For these applications, engineers often prioritize:

• Stable contact resistance
• Corrosion resistance
• Gold-plated contact surfaces
• Consistent contact force
• Low and stable bounce characteristics

Vistar’s tactile switch range includes low-current switch constructions rated around 50 mA at 12 VDC, with contact systems based on phosphor bronze and silver or gold-plated surfaces depending on the model.

Higher-Current Switching

Once the switch handles hundreds of milliamperes or several amperes, the switching event becomes more demanding.

Contact arcing, localized heating and material transfer become increasingly important. The switch must therefore be selected according to both steady-state current and switching conditions.

Consider these loads separately:

• Resistive load
• Capacitive load
• Inductive load
• Motor load
• Solenoid or relay coil
• DC power input

A switch rated 3 A for a resistive load should not automatically be assumed to handle a 3 A inductive load under identical conditions.

Inductive loads can generate substantial voltage during opening, increasing contact arcing and accelerating contact wear.

Environmental Conditions Can Change the Correct Contact Material

Electrical specifications alone do not determine contact reliability.

A switch installed inside a clean consumer device operates under very different conditions from one mounted inside an industrial controller, outdoor terminal, automotive module or medical instrument.

Humidity and Corrosion

High humidity can accelerate corrosion on exposed metal surfaces and can contribute to unstable contact resistance.

When the application involves humidity, condensation or corrosive contaminants, engineers should evaluate the complete contact system rather than only the nominal plating material.

Temperature

Temperature affects contact resistance, material expansion, spring force and housing performance.

For example, Vistar’s general switch portfolio includes models covering commercial and industrial temperature ranges, while specific series provide operating ranges such as approximately -40°C to +85°C.

The exact rating should always be taken from the selected part’s datasheet rather than from a generic product-family specification.

Dust and Water

When moisture or contaminants are expected, a sealed switch may be more important than changing the contact material.

For example, IP67 versions are available within Vistar’s tactile and pushbutton ranges for applications where dust and temporary water exposure are concerns.

This leads to an important engineering rule:

Do not try to solve an environmental sealing problem purely by changing contact plating.

If contaminants can physically enter the switch, the sealing architecture, housing and actuator design must also be evaluated.

Technical Comparison: Contact Material by Application

7 Common Mistakes in Switch Contact Material Selection

1. Choosing Gold Simply Because It Is “Better”

Gold is excellent for many low-level applications, but that does not mean every gold-plated switch is suitable for power switching.

Always check the actual current and voltage rating of the complete switch.

2. Looking Only at the Maximum Current Rating

A datasheet rating is not a universal number independent of load type.

Check whether the rating applies to DC, AC, resistive loads, inductive loads, or a particular switching condition.

3. Ignoring Minimum Load Requirements

Engineers sometimes focus on maximum current while ignoring the opposite problem: extremely low current.

A switch that performs well at several amperes may not provide the same long-term stability in a very low-energy signal circuit.

4. Treating Contact Plating Thickness as the Whole Story

Plating thickness matters, but it is only one part of the contact system.

Contact geometry, spring force, substrate alloy, plating process, wiping action and sealing all influence real-world performance.

5. Comparing Suppliers Only by Unit Price

A cheaper switch may use a thinner plating system, less consistent stamping or different contact geometry.

The difference may be invisible during incoming inspection but become obvious after thousands of cycles.

6. Ignoring the Actual Mechanical Life Requirement

Mechanical life and electrical life are not necessarily identical.

A switch may survive a specified number of mechanical actuations while the electrical performance reaches its limit earlier under a particular load.

7. Changing the Contact Material Instead of Fixing the System Design

If a switch fails because of excessive arcing, inrush current, contamination or actuator overload, changing from one plating material to another may not solve the underlying problem.

The correct solution may involve a relay, snubber, protection circuit, sealed switch construction or a different switch architecture.

How Engineers Should Specify Contact Material to a Supplier

A good RFQ should contain more information than “gold contact switch” or “silver contact switch.”

For production sourcing, provide the supplier with the following information:

1. Electrical load: state operating voltage, steady-state current and peak/inrush current.
2. Load type: identify whether the load is resistive, capacitive, inductive, motor, relay or electronic.
3. Switching frequency: estimate the expected number of operations per day, month and product lifetime.
4. Environment: specify temperature, humidity, dust, chemicals, vibration and water exposure.
5. Mounting requirement: SMT, DIP, right-angle, vertical or panel mount.
6. Mechanical constraints: define footprint, actuator height, operating force and travel.
7. Compliance requirements: specify RoHS, REACH, UL or other market-specific requirements.

This information allows the manufacturer to recommend the contact construction rather than simply quoting the cheapest catalog configuration.

A Practical RFQ Example

Instead of sending:

“Need 10,000 gold contact switches.”

send something closer to:

“SPST momentary SMT switch, 5 VDC logic input, approximately 5 mA load, 100,000-cycle target, indoor industrial equipment, -20°C to +70°C, low and stable contact resistance required, RoHS and REACH compliant.”

The second specification gives the manufacturer enough information to determine whether a gold-plated signal contact is appropriate and whether the selected switch construction can meet the required life.

How Contact Material Relates to Switch Type

Contact material should also be considered alongside the type of switch being selected.

Tactile Switches

Tactile switches generally handle low-level control signals rather than large power loads. Their contact design therefore emphasizes consistent actuation, low contact resistance and reliable signal switching.

Vistar’s tactile range includes SMD and DIP versions in common 4×4 mm, 6×6 mm and 12×12 mm formats, with selected models offering up to 100,000 mechanical cycles.

For detailed selection criteria such as footprint, actuation force, travel and mounting style, see the tactile switch technical resources on the Vistar website.

Slide Switches

Slide switches can cover both signal and power applications, making contact selection particularly important.

Vistar’s slide switch family covers signal-grade configurations with gold-plated phosphor bronze contacts and power-grade configurations using silver-plated brass or copper-alloy contacts.

For engineers evaluating operating mechanism, SPST/SPDT/DPDT configuration and PCB mounting, see the slide switch working principle and selection guide.

Pushbutton Switches

Pushbutton switches span an even wider range of applications, from low-current interface controls to panel-mounted power switching.

Current product specifications on the site cover configurations from low-current signal versions through models rated in the multi-ampere range, with gold and silver contact options depending on the series.

Browse the pushbutton switch product category when comparing mounting, electrical rating and environmental options.

How to Reduce Switch Failure Risk During Qualification

Material selection should be validated in the actual electrical and mechanical conditions of the final product.

A practical qualification sequence is:

1. Verify the electrical load. Measure actual operating and peak current instead of relying on nominal system specifications.
2. Run repeated switching cycles. Test the switch under the real load rather than under a simple continuity test.
3. Monitor contact resistance. Measure initial resistance and track its change over the qualification cycle.
4. Test environmental exposure. Where applicable, include temperature, humidity, vibration and contamination conditions.
5. Inspect failed contacts. If resistance increases significantly, inspect the contact surfaces for oxidation, wear, material transfer or arcing damage.

This approach is especially important for products with long service intervals. A switch that works perfectly during a 24-hour bench test may still be poorly matched to a product expected to operate for ten years.

Related Switch Engineering Resources

Contact material should never be evaluated in isolation. Engineers can cross-check the electrical, mechanical and application requirements using these related resources:

• Electronic Switches — Full Product Range
• Slide Switches — SPST, SPDT, DPDT and Multi-Position
• Tactile Switches — SMD, DIP and Waterproof Options
• Push Switches — Momentary and Self-Locking
• Pushbutton Switches — PCB and Panel Mount
• Slide Switch Working Principle and Selection Guide

External Technical References

For production qualification, engineers should also compare the supplier’s datasheet and test conditions with recognized industry standards and manufacturer technical documentation.

• IEC — International Electrotechnical Commission
• UL Solutions — Electrical Safety and Certification
• CUI Devices — Connector and Switch Technical Resources
• Knitter-Switch — Switch Technology Reference

Conclusion: Select the Contact System, Not Just the Switch

The most reliable approach to switch contact material selection is to start with the electrical load and environmental conditions, then work backward to the appropriate contact construction.

For low-current signal circuits, gold-plated contacts are often attractive because of their resistance to oxidation and ability to maintain stable electrical performance. For higher-current switching, silver-based contact systems can provide the conductivity and current-handling characteristics required by the application.

But material alone does not determine reliability. Contact geometry, plating thickness, spring force, switching frequency, load type, sealing, temperature and mechanical life must all be considered together.

For procurement teams, the best specification is therefore not simply “gold contact” or “silver contact.” It is a complete electrical and mechanical requirement that allows the manufacturer to select the correct contact system.

Vistar Electronics supports this approach across its tactile, slide, detector, push and pushbutton switch ranges, with different contact constructions, mounting styles and electrical ratings available for signal and power applications. Its current product portfolio covers both SMD and through-hole solutions, with OEM/ODM customization available for application-specific requirements.

For a production project, providing the actual load, operating environment, required life and PCB constraints at the quotation stage can prevent a small contact-material decision from becoming a costly field-reliability problem.

Frequently Asked Questions About Switch Contact Materials

Which contact material is best for low-current signals?

Gold-plated contact systems are commonly preferred for low-current and low-voltage signal applications because gold is highly resistant to oxidation and can provide stable electrical performance. The exact switch should still be selected according to its specified minimum and maximum electrical load.

Are gold contacts better than silver contacts?

Neither material is universally better. Gold is generally advantageous for low-level signal switching and corrosion resistance, while silver-based contacts are commonly used for higher-current applications. The correct choice depends on current, voltage, load type, environment and switching frequency.

What is the difference between contact material and contact plating?

Contact material refers to the underlying alloy or structure, such as phosphor bronze, brass or a copper alloy. Contact plating refers to the material deposited on the exposed mating surface, such as gold, silver or another finish. Both affect switch performance.

Can a gold-plated switch be used for high current?

Only when the specific switch is rated for the required electrical load. Gold plating alone does not determine current capacity. Contact geometry, substrate, plating system, thermal design and the complete switch construction must be considered.

Why are silver contacts commonly used for power switching?

Silver and silver-alloy contact systems offer excellent electrical conductivity and are commonly engineered for higher-current switching. They can be suitable for power applications where electrical arcing and contact heating are important design considerations.

Does contact material affect switch life?

Yes. Contact wear, oxidation, arcing and material transfer can affect electrical life. However, switch life also depends on mechanical construction, contact force, actuator design, load type, operating frequency and environmental conditions.

What information should I provide when sourcing a custom switch?

Provide the electrical voltage and current, load type, inrush current if applicable, switching frequency, required mechanical life, operating temperature, humidity or water exposure, PCB mounting style, dimensions, actuator requirements and compliance requirements. This gives the manufacturer enough information to recommend an appropriate contact system.

Does Vistar Electronics offer different contact materials for switches?

Yes. Vistar’s switch portfolio includes different contact constructions for signal and power applications, including gold-plated phosphor bronze and silver-based contact systems depending on the switch family and electrical requirements. OEM and ODM customization is also available for qualified projects.
