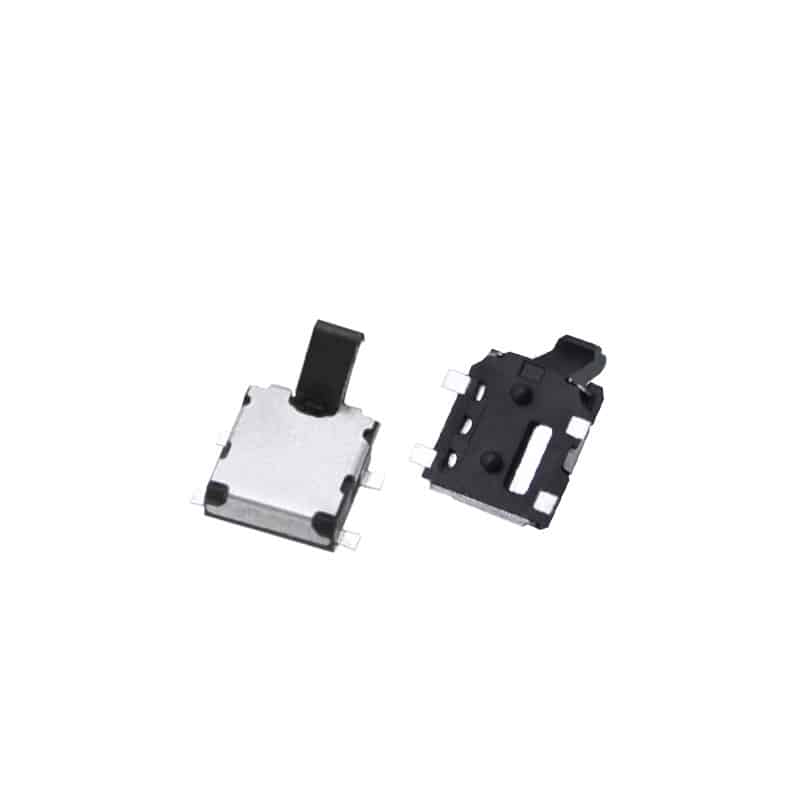

Des: Normal open/closed surface mount silent detector switch 6 pin SMT Horizontal right angle
Part No: DS-K1
Specification:
Rating: 0.1A, DC 12V
Travel: 2.0±0.10mm
Operating force: 100gf
Operating Life: 50,000 Cycles
Packaging: Reel/Bag
- Home
- Products
- Detector Switches
- Surface Mount Silent Detector Switch 6 pin
Surface Mount Silent Detector Switch 6 pin
