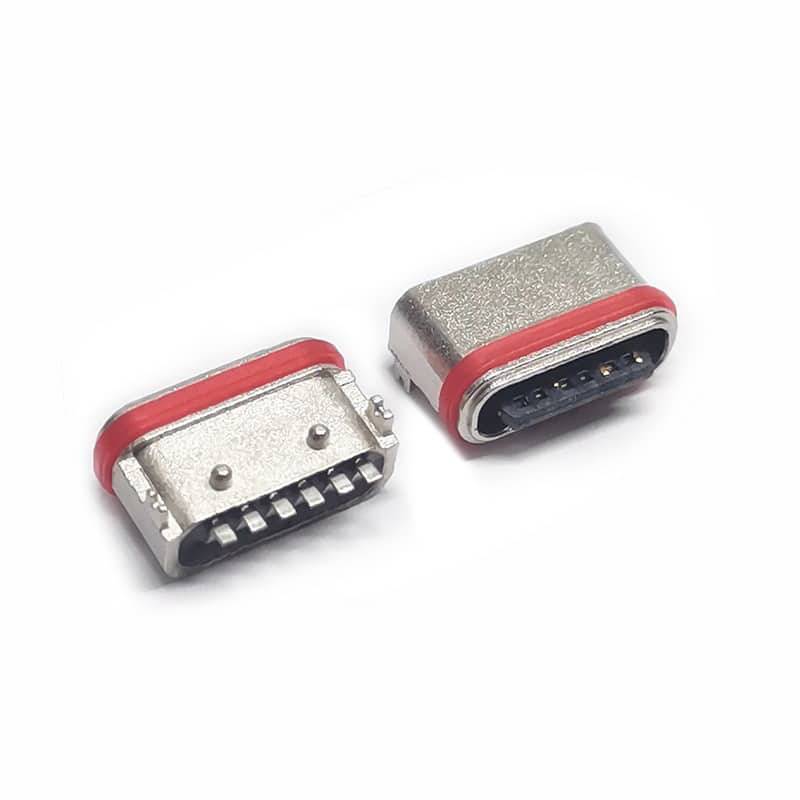

Des: PCB Mount USB-C scoket 6 Pin Type-C waterproof connector female SMD right angle
Part No: UCF06W0103
Specification:
Rating: 3A ,30VDC
Insertion force: 20N Max
Withdrawal force: 5-20N
Operating Life: 10,000Cycles
Packaging: Reel
- Home
- Products
- Waterproof USB-C Receptacle
- 6 Pin Type-C waterproof connector female SMD right angle
6 Pin Type-C waterproof connector female SMD right angle
