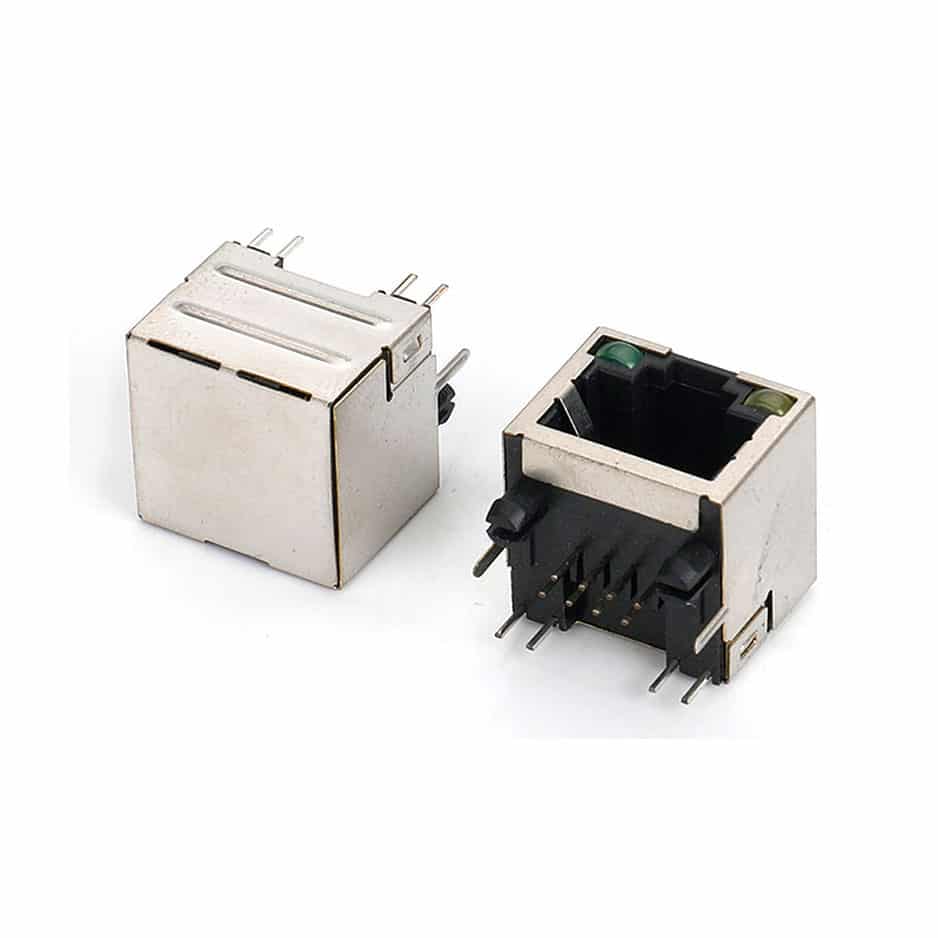

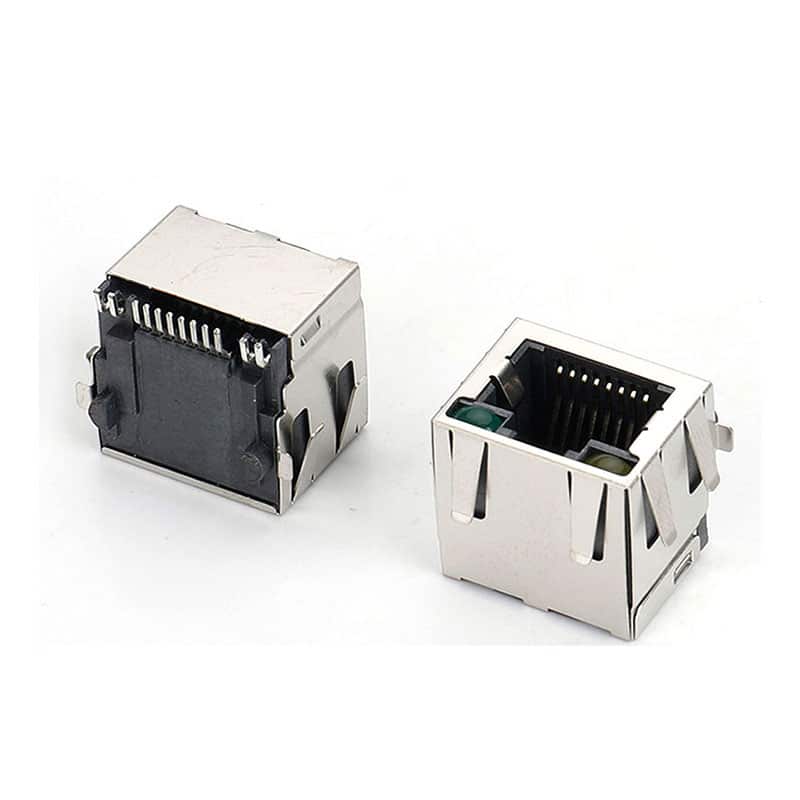

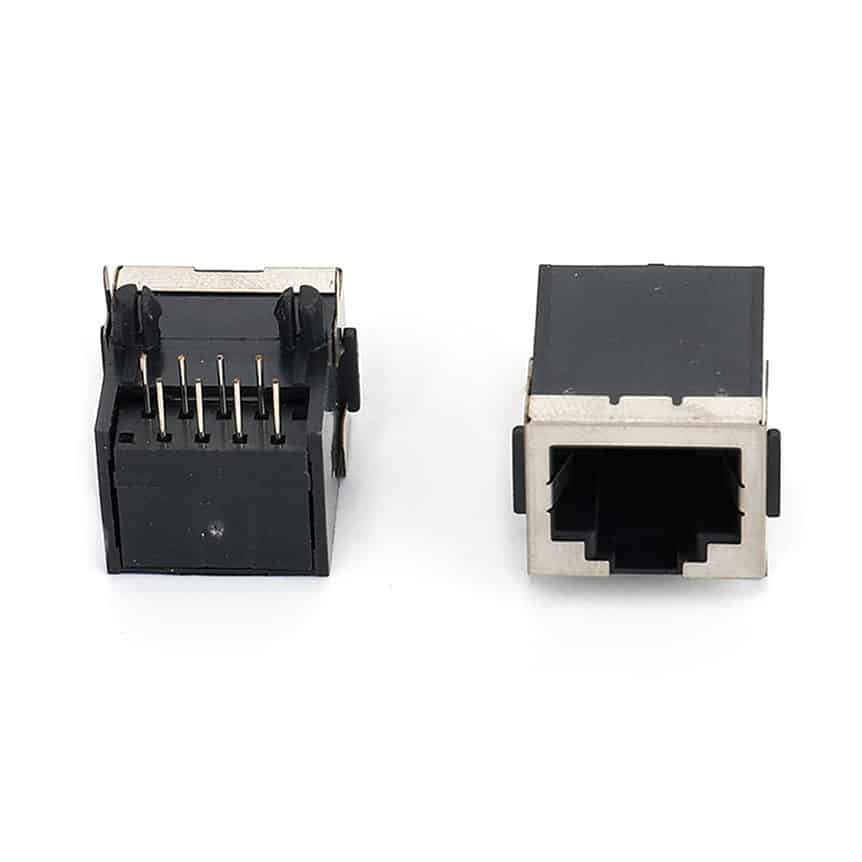

RJ45 modular jack

Here’s a more detailed overview of the RJ45 modular jack connector:

1. Description:
– The RJ45 modular jack is a type of electrical connector used for Ethernet and telephone networking.
– It is a rectangular-shaped connector with 8 metal pins or contacts inside.
– The dimensions of an RJ45 jack are typically around 14mm x 8mm, allowing it to fit into standard RJ45 sockets.

2. Wiring Configuration:
– RJ45 jacks are wired according to two main standards: T568A and T568B.
– These standards define the pinout, or the arrangement of the individual wires within the connector.
– Proper wiring is crucial for ensuring reliable data transmission in Ethernet networks.

3. Applications:
– Primary use is for terminating Ethernet cables (Cat5, Cat5e, Cat6, etc.) to connect network devices like routers, switches, computers, and servers.
– Also used for terminating telephone lines in some VoIP (Voice over IP) and legacy telephone systems.
– Can be found in a variety of network equipment, including wall jacks, patch panels, and network interface cards (NICs).

4. Features and Benefits:
– Standardized design allows for universal compatibility across different network devices and cables.
– Provides a secure and reliable connection, with a locking tab to prevent accidental disconnection.
– Relatively simple to terminate Ethernet cables with RJ45 jacks using specialized tools.
– Supports high-speed data transmission required for modern Ethernet networks.

5. Installation and Termination:
– RJ45 jacks can be pre-installed on Ethernet cables (known as “patch cables”) or terminated on the end of a cable using specialized crimping tools.
– The process involves carefully aligning and inserting the individual wires into the correct positions within the RJ45 jack, then securely crimping the connector.
– Proper termination is essential for ensuring optimal signal quality and network performance.

The RJ45 modular jack is a ubiquitous and essential component in modern Ethernet and telecommunications networks, enabling the easy interconnection of various network devices and the reliable transmission of data.
