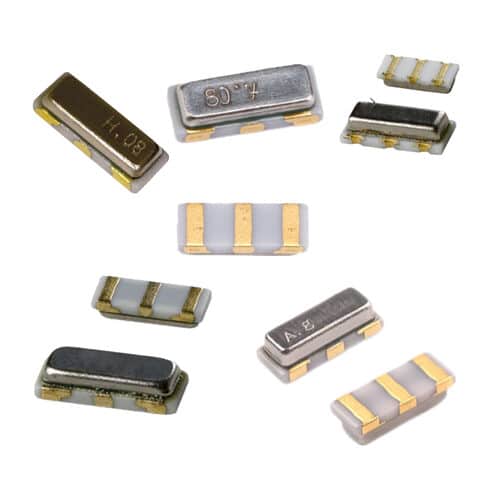

Crystal Resonator
A crystal resonator is a passive electronic component made from a piezoelectric material (typically quartz) that vibrates at a precise frequency when an electric field is applied. It is widely used in electronic circuits to provide stable and accurate clock signals.
1. How a Crystal Resonator Works
- Piezoelectric Effect: When an electric voltage is applied to a quartz crystal, it mechanically deforms and vibrates at its natural resonant frequency.
- Resonance: The crystal vibrates at a specific frequency (fundamental or overtone) determined by its cut and dimensions.
- Equivalent Circuit: A crystal can be modeled as an RLC circuit with very high Q-factor (quality factor), meaning it has low energy loss and high frequency stability.
2. Key Characteristics
| Parameter | Description |
|---|---|
| Frequency Range | Typically 1 kHz to 200 MHz (commonly 32.768 kHz for RTC, 8–50 MHz for microcontrollers). |
| Frequency Stability | High (ppm-level accuracy, e.g., ±20 ppm). |
| Load Capacitance (CL) | External capacitors (e.g., 8–32 pF) required for proper oscillation. |
| ESR (Equivalent Series Resistance) | Lower ESR means better performance (typically <100Ω). |
| Temperature Coefficient | Frequency drift with temperature (e.g., ±15 ppm over -40°C to +85°C). |
| Aging | Gradual frequency shift over time (typically <5 ppm/year). |
3. Types of Crystal Resonators
A. By Cut Type
- AT-Cut: Most common, used for frequencies 1 MHz to 200 MHz, stable over temperature.
- BT-Cut: Used for high-frequency applications (e.g., RF).
- XT-Cut: Used for low-frequency applications (e.g., 32.768 kHz for RTC).
B. By Package Type
- Through-Hole (HC-49, HC-49S, HC-49U) – Larger, used in older designs.
- SMD (Surface-Mount Device) – Smaller, used in modern PCBs (e.g., 3225, 5032, 7050).
- Cylindrical Metal Can – Used in high-stability applications.
4. How to Use a Crystal Resonator in a Circuit
A crystal resonator requires an external oscillator circuit (usually inside a microcontroller or a dedicated oscillator IC).
Basic Oscillator Circuit (Pierce Oscillator)
-
- Components Needed:
-
- Crystal resonator (e.g., 8 MHz, 16 MHz).
-
- Two load capacitors (e.g., 22 pF).
-
- A feedback resistor (e.g., 1 MΩ).
-
- An inverting amplifier (inside a microcontroller or oscillator IC).
Key Considerations
-
- Load Capacitance (CL): Must match the crystal’s specified value (e.g., 8 pF, 12 pF, 20 pF).
-
- Stray Capacitance: PCB traces add capacitance, affecting frequency.
-
- Drive Level: Too much power can damage the crystal (typically <100 µW).
5. Applications of Crystal Resonators
- Microcontrollers & Microprocessors (e.g., Arduino, STM32, ESP32).
- Real-Time Clocks (RTC) (e.g., 32.768 kHz crystals).
- Communication Devices (RF modules, Bluetooth, Wi-Fi).
- Consumer Electronics (smartphones, TVs, digital cameras).
- Industrial & Automotive Systems (ECU, sensors).
6. Advantages & Disadvantages
| Advantages | Disadvantages |
|---|---|
| High frequency stability | Requires external oscillator circuit |
| Low cost | Sensitive to mechanical stress |
| Low power consumption | Limited frequency range compared to oscillators |
| Small size (SMD packages) | Needs careful PCB layout to avoid noise |
7. Troubleshooting Common Issues
| Problem | Possible Cause | Solution |
|---|---|---|
| No Oscillation | Incorrect load capacitance | Check CL value and PCB layout |
| Frequency Drift | Temperature changes | Use a TCXO or OCXO if needed |
| Weak Signal | High ESR or low drive level | Use a lower ESR crystal or adjust drive strength |
| Interference | Poor grounding or noise | Improve PCB layout, add shielding |
