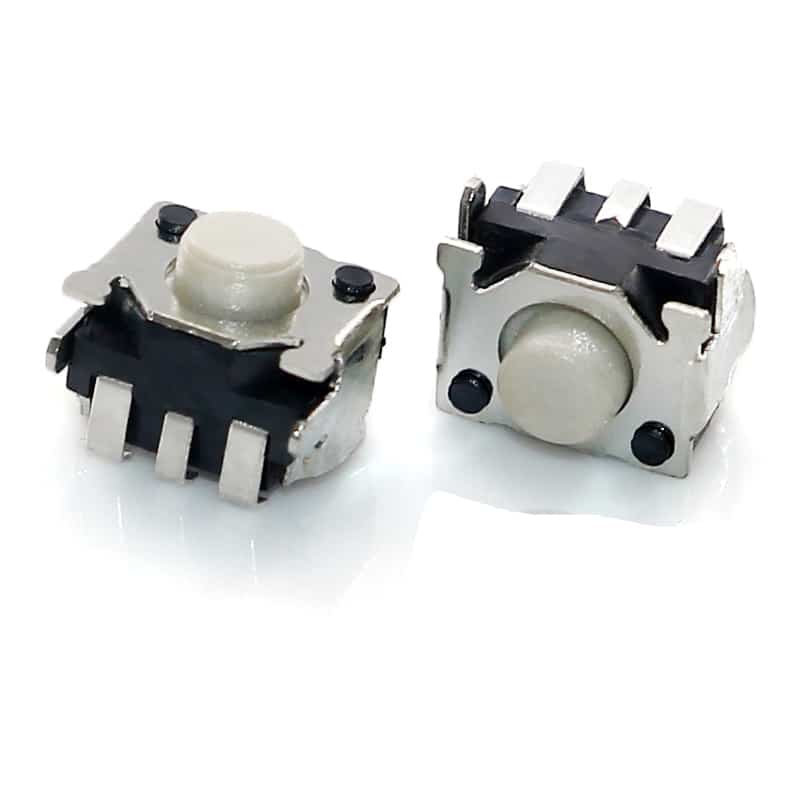

Des: 4 pin tactile switch SMD with dimensions 5.2mm x 5.2mm
Part No: TS-1187N
Specification:
Rating: 50mA, DC 12V
Travel: 0.15±0.10mm
Operating force: 180gf/260gf
Operating Life: 50,000/100,000 Cycles
Packaging: Reel/Bag
This surface mount tactile switch provides high quality tactile feedback and reliable switching performance in a compact 5.2mm x 5.2mm plastic package. It is actuated by a non-illuminated push button with a raised surface area of 2.2mm diameter, providing good tactile feel and comfort even with repeated pressing.
With 4 sturdy pins spaced at 2mm, this switch is easy to solder onto circuit boards. The pins are gold plated over nickel for maximum conductivity and contact protection from oxidation. The switch has a travel/stroke of 0.6mm, an actuation force of 160 gf +/- 50 gf, and an overtravel force of 70 gf for consistent tactility.
Rated for over 500,000 cycles at a temperature range between -25°C to 70°C, this durable switch delivers extremely long lifetime of use for small electronics and devices. Its electrical life is specified at 100mA 12V DC. Ideal uses include consumer electronics, IoT and smart home gadgets, handheld meters and remotes, and more.”
