Product Overview
The 20 pin DP connector SMT vertical T/H (Part No: DP-F06-13H) is a high-reliability DisplayPort PCB mount connector designed for vertical surface mount and through-hole applications. This DisplayPort 20 pin connector features a compact 13mm height profile, making it ideal for space-constrained electronic devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | DP-F06-13H |
| Connector Type | 20 Pin DisplayPort Connector |
| Mounting Type | SMT Vertical + Through Hole (T/H) |
| Height | 13mm |
| Current Rating | 0.5A |
| Insertion Force | 35N Max |
| Withdrawal Force | 8N Min |
| Operating Life | 5,000 Cycles |
| Packaging | Reel / Tray |
Key Features
- Dual Mounting Options: SMT vertical and through-hole for maximum PCB design flexibility
- Compact Design: 13mm height ideal for slim device profiles
- High Durability: 5,000 insertion/extraction cycles
- Standard Compliance: Compatible with DisplayPort specifications
- Reliable Connection: Optimized contact force ensures stable signal transmission
Applications
- Desktop and laptop computers
- Gaming monitors and displays
- Industrial display systems
- Medical imaging equipment
- Professional AV equipment
Why Choose us
-
Factory Direct：Own manufacturing facility in Shenzhen with strict ISO9001 quality control, ensuring reliable delivery and consistency.
-
Free Samples：Engineering samples available to accelerate your prototyping and validation.
-
Technical Support：Complimentary 2D/3D drawings, PCB footprints (Altium, PADS formats), and full datasheets.
-
Flexible Packaging：Reel or tray options to suit high-speed SMT assembly lines.
-
Competitive Pricing：Volume discounts available; long-term partnerships welcome.
Looking for a reliable electronic connector manufacturer?
Contact us today for competitive pricing on 20 pin DP connectors and custom connector solutions.
[Request a quote] | [Download catalog] | [Contact our experts]
FAQ

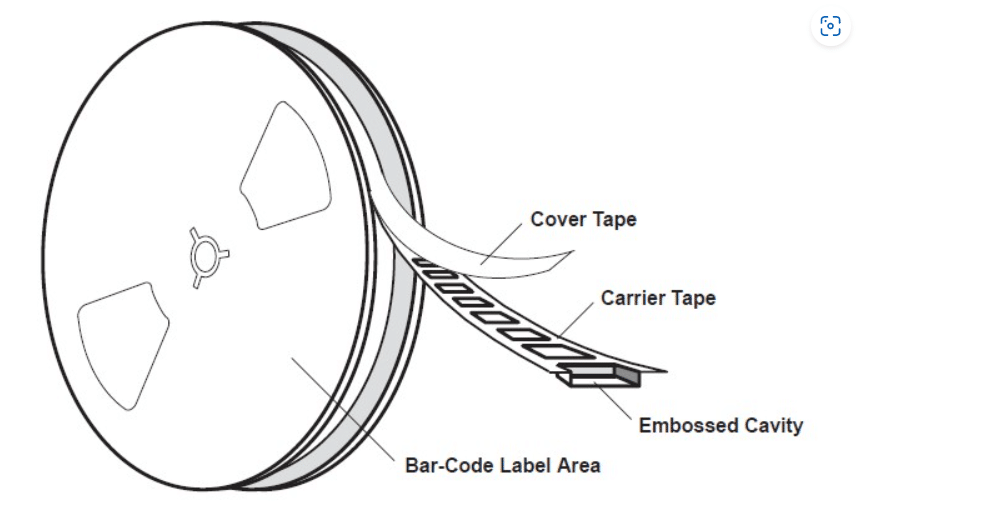

Yes, the DP-F06-13H is supplied in tape-and-reel packaging and is fully compatible with automated SMT lines.
Absolutely. Please contact us to request the STEP file and recommended PCB layout.
There is no MOQ for samples. Volume orders can be negotiated flexibly.
The connector meets DisplayPort electrical specifications and supports high-bandwidth applications. Please refer to the technical datasheet for detailed performance data.
We take pride in the quality of our products. We use high-quality materials and follow strict manufacturing processes to ensure our products meet international standards.
Yes, all our products are thoroughly tested before shipping. We have stringent quality control processes in place to ensure consistency and excellence.
Yes, our products meet various international certifications and compliances such as ISO, CE, and RoHS.
Yes, we offer free samples for certain products. Please contact our customer service team to check if a free sample is available for the product you’re interested in.
We typically ship free samples within 3-5 business days after receiving your request.
Yes, we have a limit of 10 free samples per customer. If you need more, please contact our customer service team to discuss further.
Our products come with a warranty period of 1-2 years, depending on the product.
Our warranty covers manufacturing defects and material defects. Please see our warranty policy for more details.
If you need to claim a warranty, please contact our customer service team with your order number and a detailed description of the issue. We will guide you through the process.
We accept various payment methods including T/T, Alibaba Trade Assurance, PayPal, Western Union, Bank transfer, and Cash.
Yes, we do. Please let us know your requirements, then we will send you a drawing for confirmation.
Related Resource

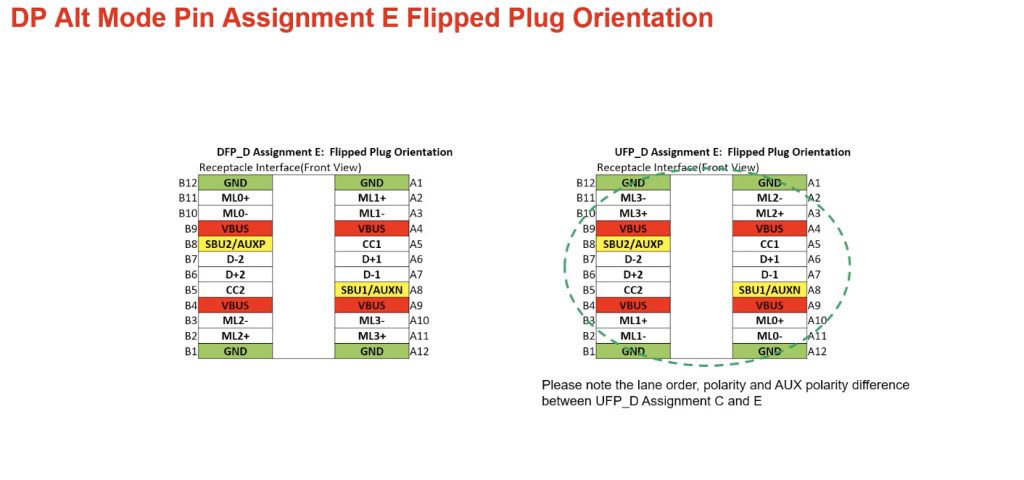

How to Choose DisplayPort Connector for Your PCB Design– Complete Guide
